10kV medium voltage aerial cable
You can send us an email：jscable@cnjscable.com
keywords：
Category：
OVERVIEW
Overview: 10KV Single Core Aerial Cable
Application:MV Aerial cables are primarily deployed for fixed aerial installation in urban and wooded areas, facilitating the distribution of primary power within medium-voltage networks. When installing these cables, it's essential to maintain a safe distance between the cable and nearby trees to prevent interference. However, during operation, occasional contact between the cables and trees may occur and is generally permissible.
Standard：GB/T 14049, IEC 60502-2, GB/T 12706, or equivalent standards upon request,Acceptance of customized requests
SPECIFICATIONS
Rated Voltage:10kV
Maximal short-circuit temperature：+250 ℃
Minimum installation temperature： -20℃
Max. conductor temp.in service:XLPE-90 ℃ ,PVC-70 ℃
Min. bending radius during installation: 6(xD)
Outer sheath-- UV resistant
CONSTRUCTION
1. Conductor:Copper or Aluminum, Class 1: solid conductor, or Class 2: stranded conductor,ACSR
2. Conductor screen(optional): Semi-conducting compound
3. Insulation: XLPE or HDPE, UV resistant
4. Outer sheath(optional): HDPE, UV resistant
PARAMETER

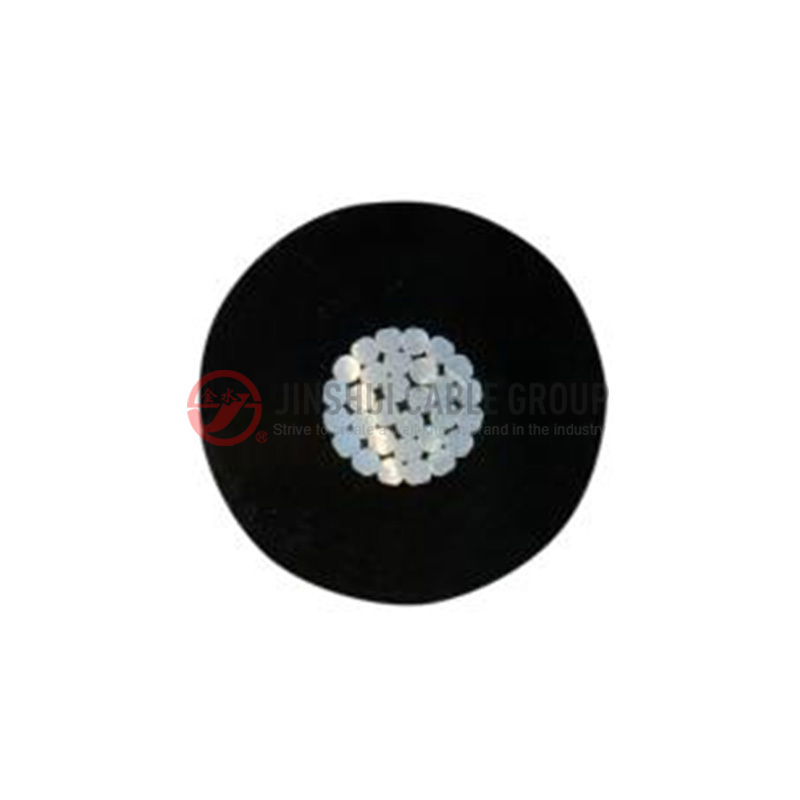

- 10kV ALIMINIUM CONDUCTOR INSULATED CABLE

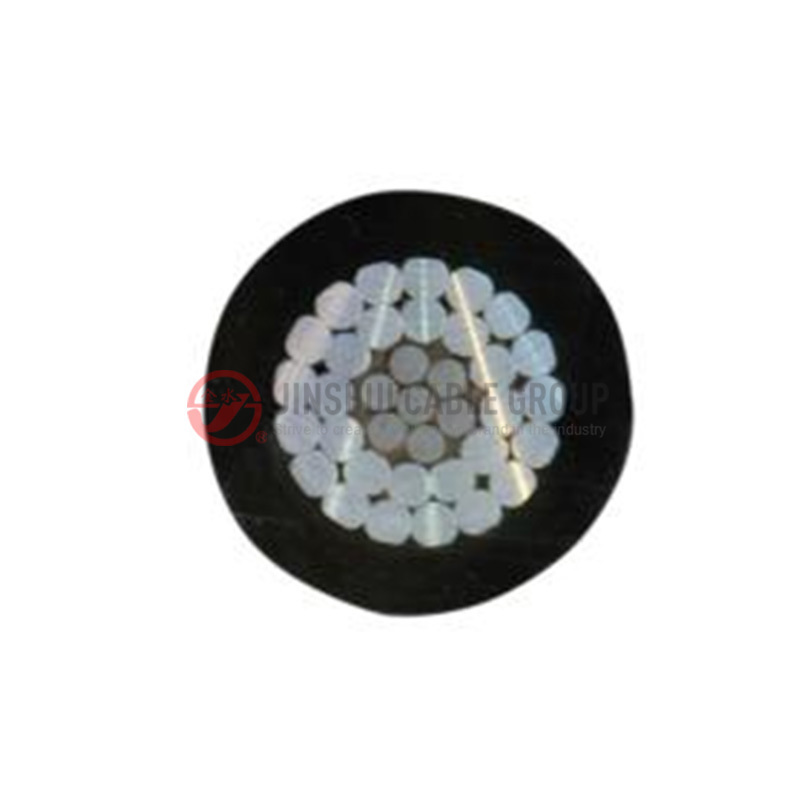

- 10kV ACSR CONDUCTOR INSULATED CABLE
| Nominal sectional area (mm²) | Stranding of conductor (Min) (No.) | Overall Dia of conductor (mm) | Nominal Insulation Thickness (mm) | Average Dia of single core cable (mm) | Resistance of Conductor at 20℃ not more than (Ω/km) | Min Breaking load (N) | ||||
| Thin | Common | Thin | Common | CU | AL | CU | AL | |||
| 25 35 50 70 95 |
6 6 6 12 15 |
6.0 7.0 8.3 10.0 11.6 |
2.5 2.5 2.5 2.5 2.5 |
3.4 3.4 3.4 3.4 3.4 |
11.8 13.0 14.5 16.2 18.0 |
14.8 16.0 17.5 19.2 21.0 |
0.749 0.540 0.399 0.276 0.199 |
1.200 0.868 0.641 0.443 0.320 |
8465 11731 16502 23461 31759 |
3762 5177 7011 10354 13727 |
| 120 150 185 240 300 |
18 18 30 34 34 |
13,0 14.6 16.2 18.4 20.6 |
2.5 2.5 2.5 2.5 2.5 |
3.4 3.4 3.4 3.4 3.4 |
19.6 21.4 23.2 25.6 27.8 |
22.6 24.4 26.2 28.6 30.8 |
0.158 0.128 0.1021 0.0777 0.0619 |
0.253 0.206 0.164 0.125 0.100 |
39911 49505 61846 79823 99788 |
17339 21033 26732 34679 43349 |
