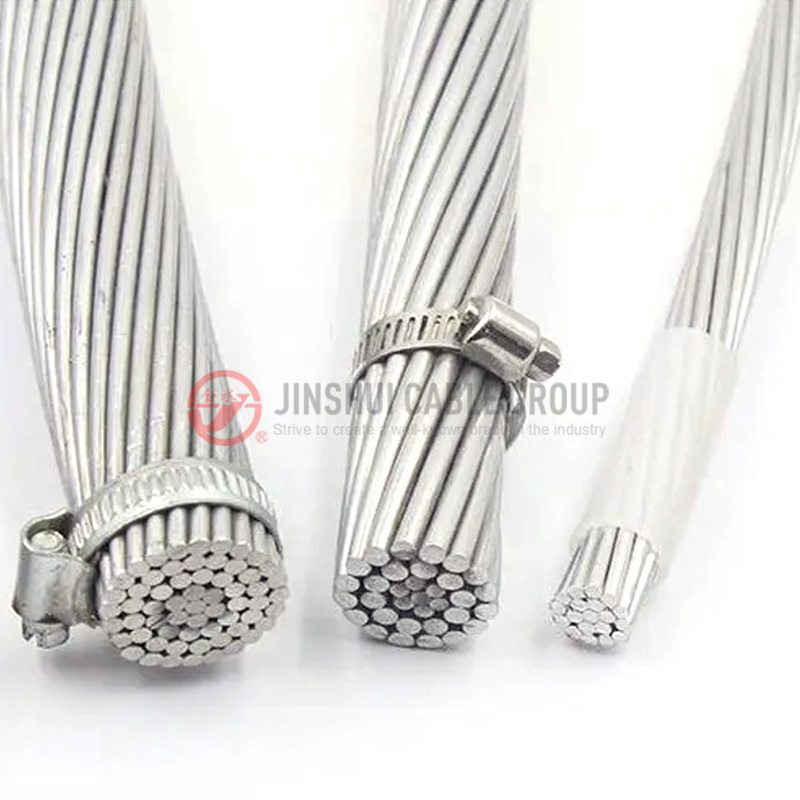

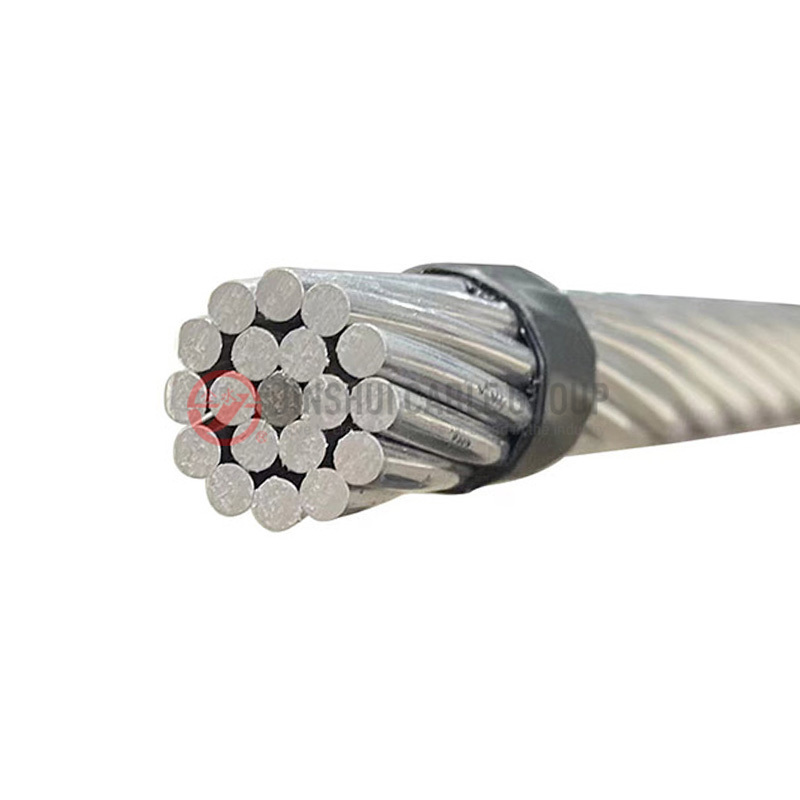

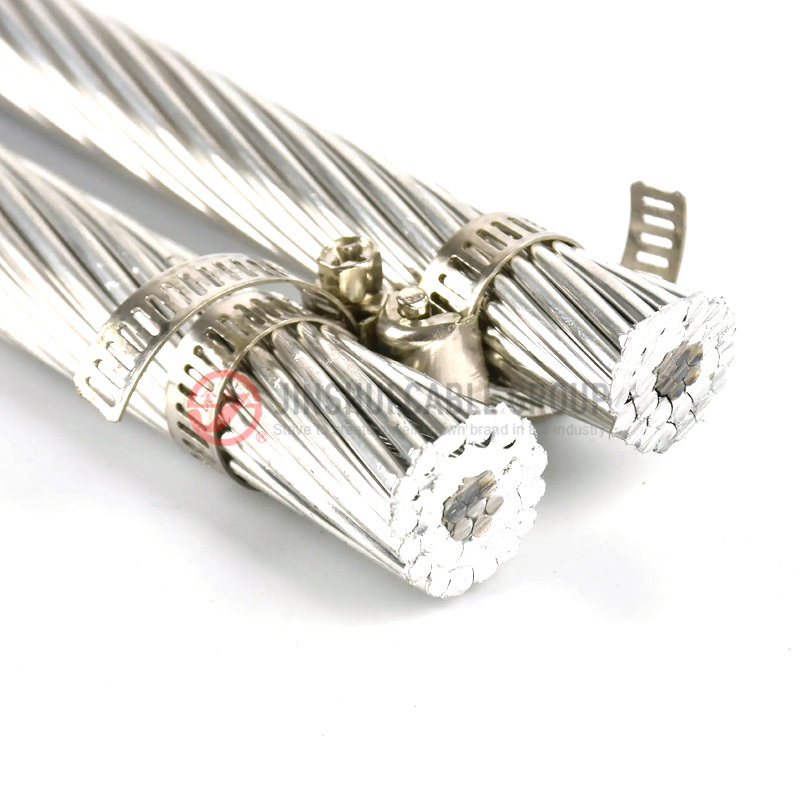

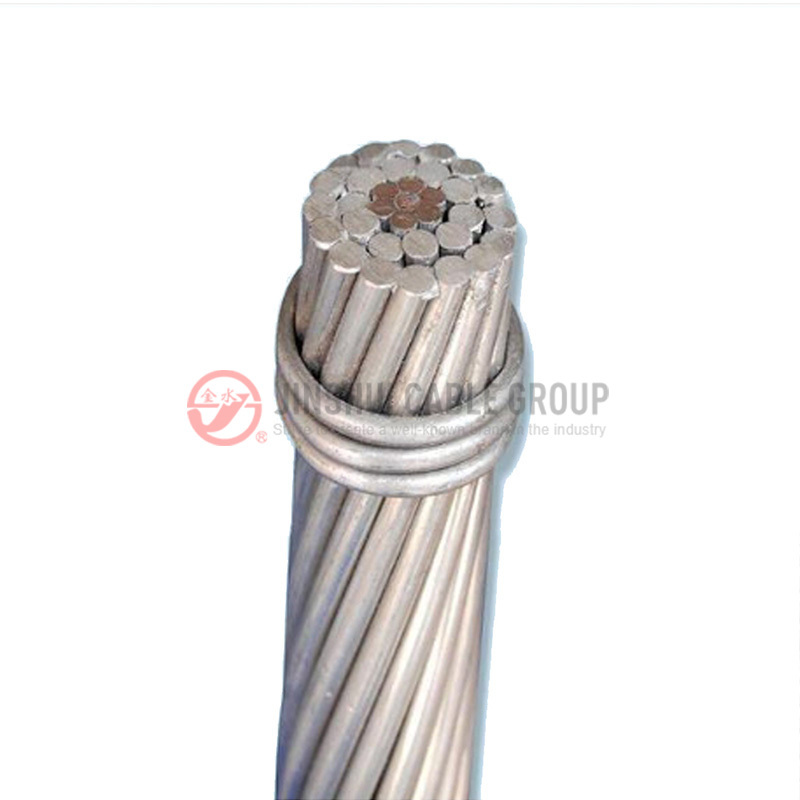

Aluminum Alloy Conductor Steel Reinforced (AACSR)

Aluminum Alloy Conductor Steel Reinforced is widely used in power transmission lines with various voltage levels.It can be used as large span conductor,heavy ice wire or overhead communications wire,ground wire.The temperature for continuous use can be up to 90°C,heat-resistance AACSR can be up to 150°C and above.It has high current carrying capacity,variable steel core stranding enables the designed strength to be achieved without sacrificing ampacity.
Qualification

You can send us an email：jscable@cnjscable.com

keywords：

Aluminum Alloy Conductor Steel Reinforced (AACSR)

Category：

AACSR

Inquiry Inquiry
Contact
Facebook Linkedin Twitter Tumblr Pinterest
ADD TO WISHLIST

Overview

Construction

Parameter

Related

OVERVIEW

Aluminum Alloy Conductor Steel Reinforced is widely used in power transmission lines with various voltage levels.It can be used as large span conductor,heavy ice wire or overhead communications wire,ground wire.The temperature for continuous use can be up to 90°C,heat-resistance AACSR can be up to 150°C and above.It has high current carrying capacity,variable steel core stranding enables the designed strength to be achieved without sacrificing ampacity.

Standards :

ASTM B711,DIN 48206,IEC 61089

Construction :

AACSR is a concentrically stranded conductor composed of one or more layers of Aluminium -Magnesium -Silicon Alloy wire stranded around a high strength coated steel core. The core can be of either single wire or stranded multi wire. AACSR is available with steel core of Class A, B or C galvanizing or Aluminium clad (AW). Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.

CONSTRUCTION

PARAMETER

  • ASTM B711 Aluminium Alloy conductor steel reinforced(AACSR)
  • DIN 48206 Aluminium Alloy conductor steel reinforced(AACSR)
Nominal Cross section（mm²） No. Of Aluminum alloy wires No. Of steel wires Overall diameter  Rated tensile strength Max.DC
esistance at 20℃
 （mm²） Alloy steel No.of Alloy wires Diameter(mm) Steel wires Diameter of steel wire Mm daN Ohm/km
163 140 23 26 2.62 7 2.04 16.6 7500 0.24
173 140 33 30 2.44 7 2.44 17.1 8740 0.24
186 160 26 26 2.80 7 2.18 17.7 8560 0.21
198 180 38 30 2.61 7 2.61 18.3 10600 0.21
209 180 29 26 2.97 7 2.31 18.8 9510 0.187
222 200 42 30 2.76 7 2.76 19.3 11200 0.187
232 200 32 26 3.13 7 2.43 19.8 10600 0.168
247 224 47 30 2.91 7 2.91 20.4 12400 0.168
260 224 36 26 3.31 7 2.57 21.0 11800 0.15
276 250 52 30 3.08 7 3.08 21.6 13900 0.15
291 250 41 26 3.50 7 2.72 22.2 12900 0.135
308 280 58 30 3.26 7 3.26 22.8 15600 0.135
326 280 46 26 3.70 7 2.88 23.4 14400 0.12
345 315 65 30 3.45 7 3.45 24.2 17100 0.12
367 315 52 26 3.93 7 3.06 24.9 16300 0.107
387 355 72 30 3.66 19 2.20 25.6 19000 0.107
413 355 58 26 4.17 7 3.24 26.4 18300 0.095
436 400 81 30 3.88 19 2.33 27.2 21100 0.095
465 400 65 26 4.43 7 3.45 28.1 20700 0.084
491 450 91 30 4.12 19 2.47 28.8 23700 0.084
509 500 59 54 3.26 19 1.98 29.5 21500 0.075
Nominal Cross section
（mm²）		 No. Of Aluminum alloy wires No. Of steel wires Overall diameter  Rated tensile strength Max.DC
Resistance at 20℃
  (mm²） Alloy steel No.of Alloy wires Diameter(mm) Steel wires Diameter of steel wire Mm daN Ohm/km
16/2.5 15.27 2.54 6 1.80 1 1.80 5.40 748 2.18
25/4 23.86 3.98 6 2.25 1 2.25 6.8 1171 1.4
35/6 34.35 5.73 6 2.7 1 2.7 8.1 1685 0.969
44/32 43.98 31.67 14 2 7 2.4 11.2 5027 0.7625
50/8 48.25 8.04 6 3.2 1 3.2 9.6 2366 0.69
50/30 51.17 29.85 12 2.33 7 2.33 11.7 5024 0.6547
70/12 69.89 11.4 26 1.85 7 1.44 11.7 3399 0.1791
95/15 94.39 15.33 26 2.15 7 1.67 13.6 4582 0.3547
95/55 96.51 56.3 12 3.2 7 3.2 16 9475 0.3471
105/75 105.67 75.55 14 3.1 19 2.25 17.5 12014 0.3174
120/20 121.57 19.85 26 2.44 7 1.9 15.5 5914 0.2754
120/70 122.15 71.25 12 3.6 7 3.6 18 11912 0.2742
125/30 127.92 29.85 30 2.33 7 2.33 16.3 7280 0.2621
150/25 148.86 24.25 26 2.7 7 2.1 17.1 7236 0.2249
170/40 171.77 40.08 30 2.7 7 2.7 18.9 9775 0.1952
185/30 183.78 29.85 26 3 7 2.33 19 8922 0.1822
210/35 209.1 34.09 30 3.2 7 2.49 20.3 10167 0.1601
210/50 212.06 49.48 30 3 7 3 21 12068 01581
230/30 230.91 29.85 24 3.5 7 2.33 21 10306 0.1449
