Bare Copper Conductor
You can send us an email：jscable@cnjscable.com
keywords：
Category：
OVERVIEW

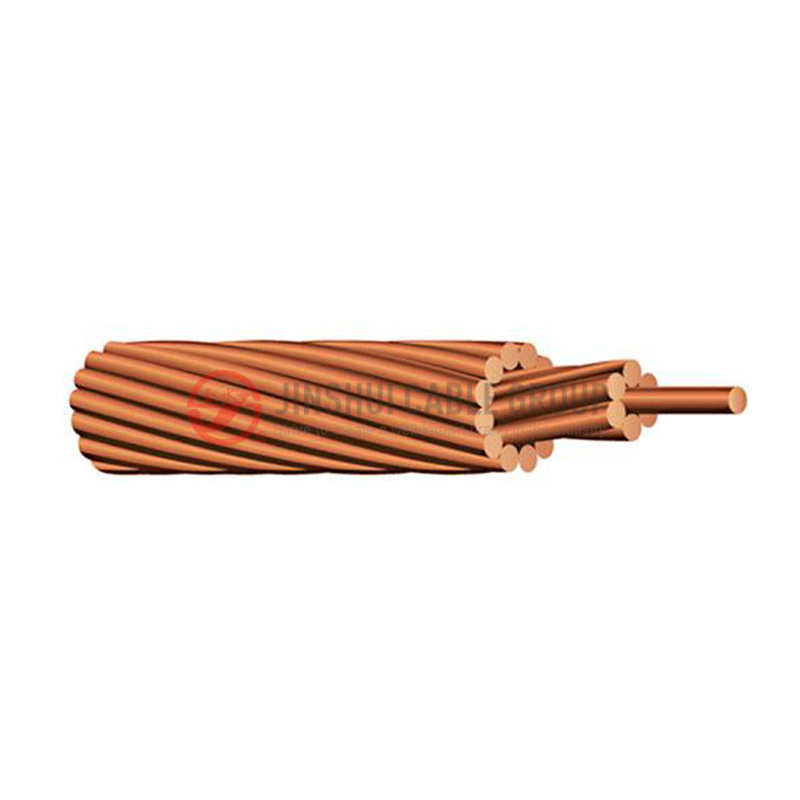

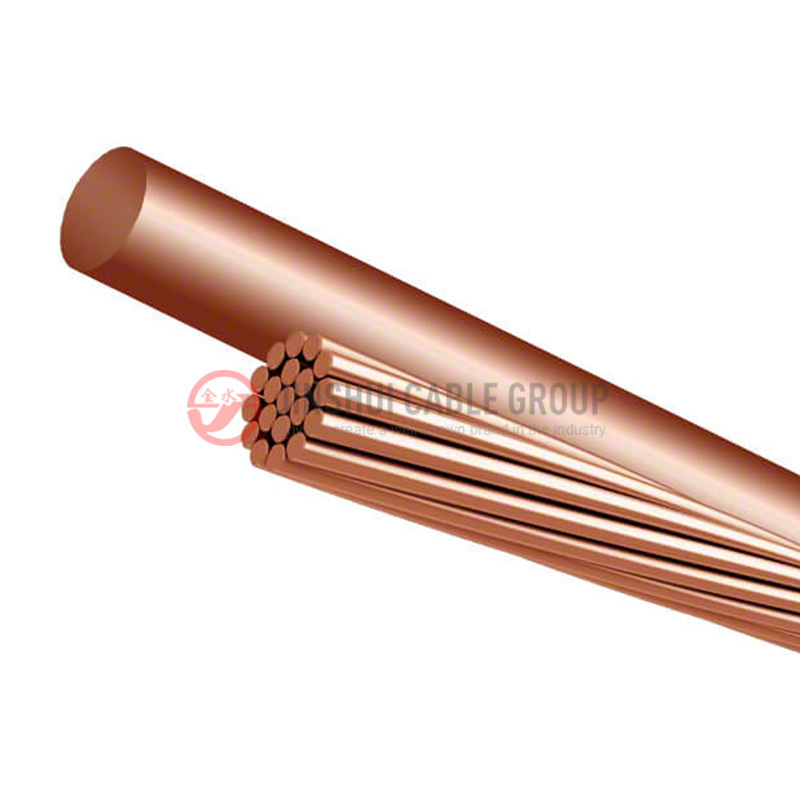

Plain Bare Soft Drawn Copper Conductor
Application :
Used for overhead electrical distribution lines,grounding electrical substations,electrical test equipment and any other electrical system,suitable for numerous other applications.
Standards :
ASTM B8 ,BS 7884,IEC60228,
CONSTRUCTION
PARAMETER
- ASTM B8
- BS 7884
| Size | Nominal cross section | Overall diameter | Linear weight | Calculated breaking load | Max.DC resistance of conductor at 20℃ |
| AWG | mm² | mm | Kg/km | kN | Ohm/km |
| 1 | 42.4 | 7.35 | 377 | 16.3 | 0.423 |
| 2 | 33.6 | 6.54 | 299 | 13.3 | 0.533 |
| 4 | 21.2 | 5.19 | 188 | 8.8 | 0.848 |
| 6 | 13.3 | 4.12 | 118 | 5.7 | 1.349 |
| 8 | 8.4 | 3.26 | 74 | 3.7 | 2.143 |
| 10 | 5.3 | 2.59 | 47 | 2.3 | 3.409 |
| 12 | 3.3 | 2.05 | 29 | 1.5 | 5.419 |
| 14 | 2.1 | 1.63 | 19 | 0.9 | 8.61 |
| 16 | 1.3 | 1.29 | 12 | 0.6 | 13.715 |
| 18 | 0.8 | 1.02 | 7 | 0.4 | 21.843 |
