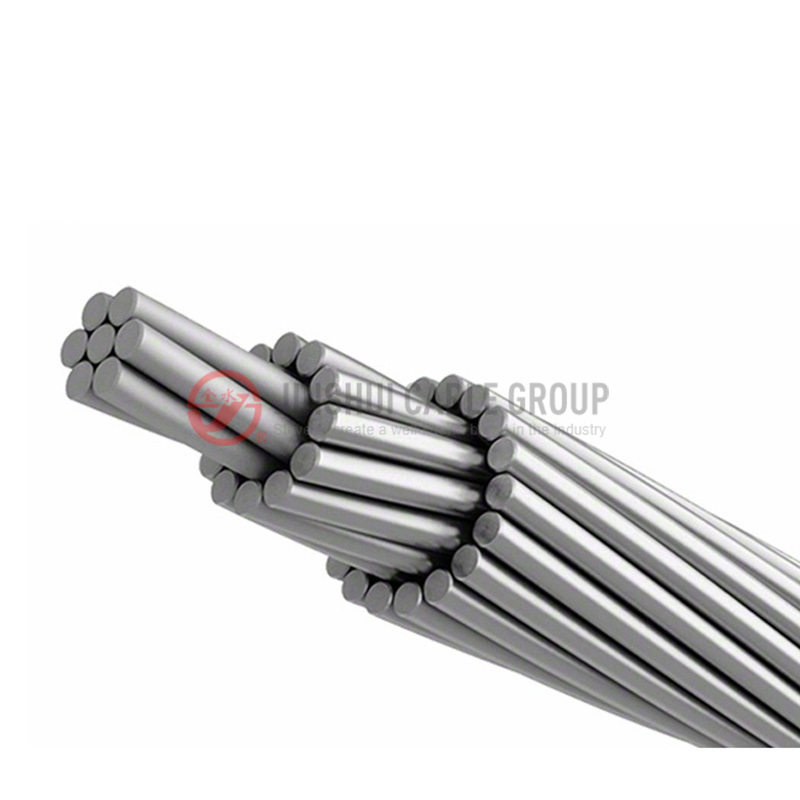

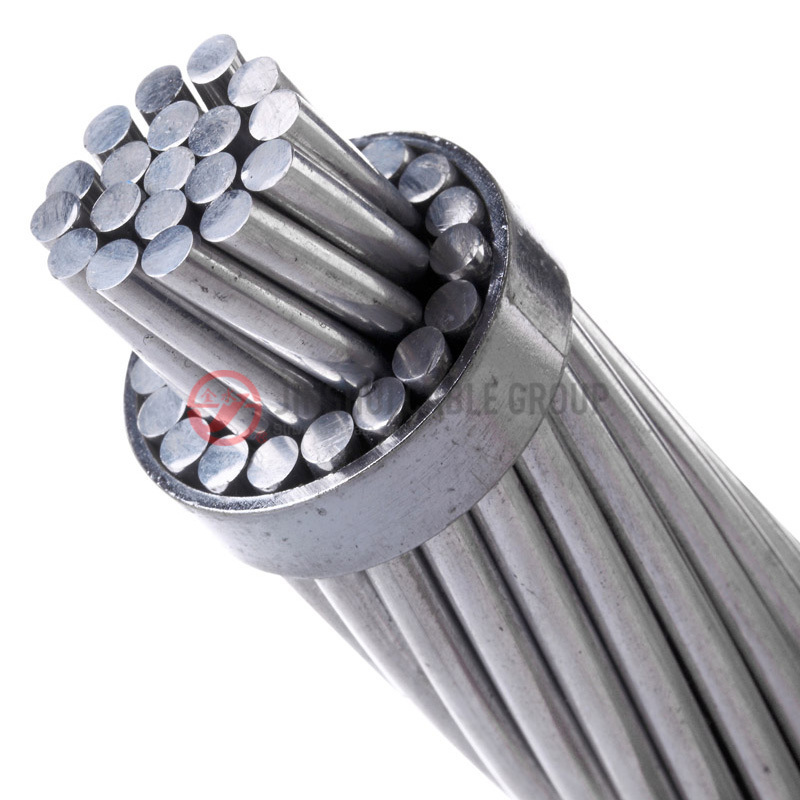

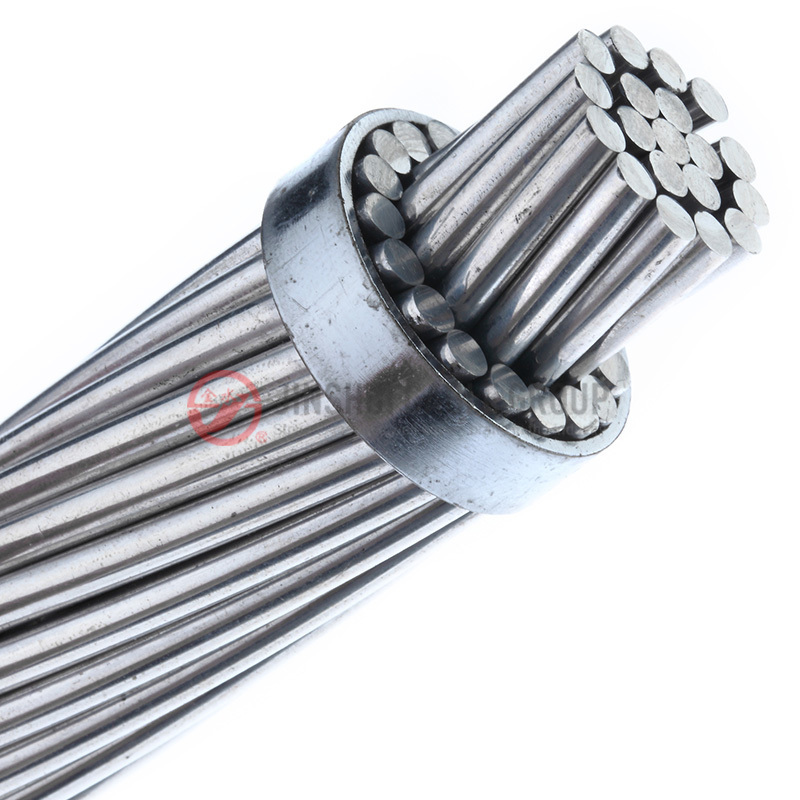

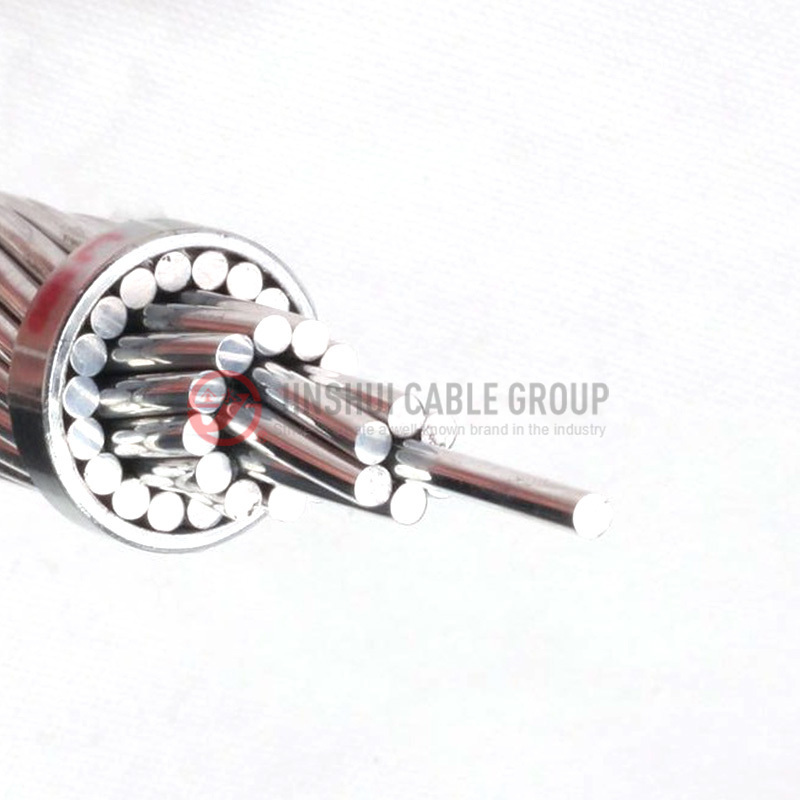

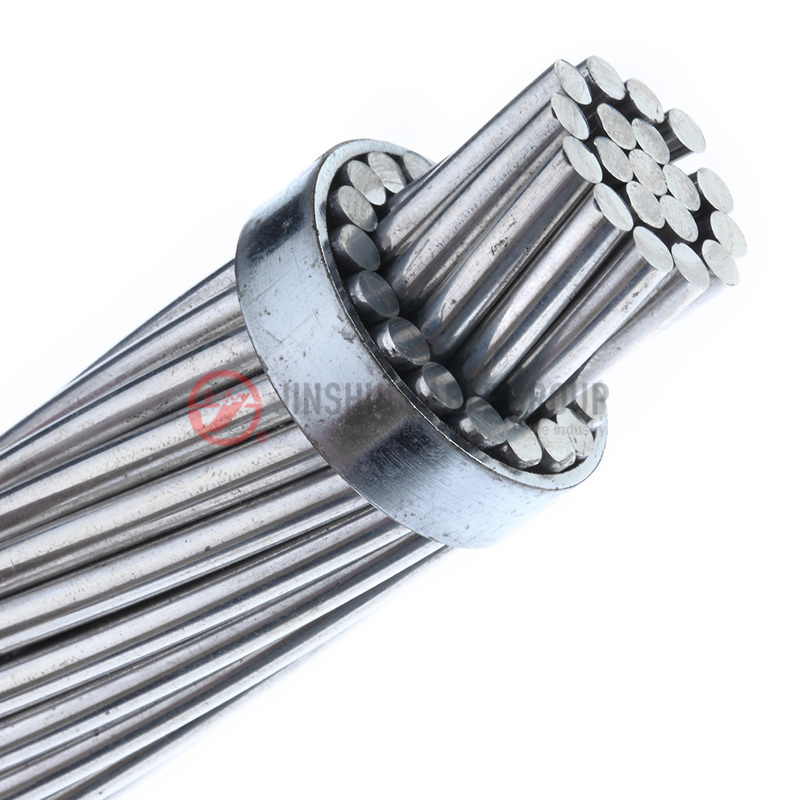

All Aluminium Condcutor (AAC)
You can send us an email：jscable@cnjscable.com
keywords：
Category：
OVERVIEW
Application :
AAC conductor is also known as aluminium stranded conductor. It is manufactured from electrolytically refined aluminium, with a minimum purity of 99.7%. AAC is used mainly in urban areas where the spacing is short and the supports are close. All aluminium conductors are made up of one or more strands of aluminium wire depending on the end usage. AAC is also used extensively in coastal regions because it has a high degree of corrosion resistance
Standards :
ASTM B231,IEC 61089, DIN 48201, BS 215,CSA C49, JIS C3109-1978
Product Properties :
All Aluminum stranded wire mainly serves to transmit electrical energy. The cross-sectional area of the wire varies depending on the voltage
CONSTRUCTION
PARAMETER
- BS215 ALL ALUMINUM STRANDED CONDUCTOR (AAC)
- ASTM B231 ALL ALUMINUM STRANDED CONDUCTOR (AAC)
- IEC61089 ALL ALUMINUM STRANDED CONDUCTOR (AAC)
| Code name | Nominal cross section | No./dia. of stranding wires | Section al area | Overall diameter | Linear weight | Calculated breaking load | Max.DC resistance of conductor at 20℃ |
| mm² | No./mm | mm² | mm | Kg/km | daN | Ohm/km | |
| Midge | 22 | 7/2.06 | 23.33 | 6.18 | 63.88 | 3.99 | 1.2270 |
| Gnat | 25 | 7/2.21 | 26.85 | 6.63 | 73.53 | 4.59 | 1.0660 |
| mosquito | 35 | 7/2.59 | 36.88 | 7.77 | 101 | 6.02 | 0.7762 |
| Ant | 50 | 7/3.10 | 52.83 | 9.30 | 144.70 | 8.28 | 0.5419 |
| Fly | 60 | 7/3.40 | 63.55 | 10.20 | 174.00 | 9.90 | 0.4505 |
| Earwing | 70 | 7/3.78 | 78.54 | 11.34 | 215.10 | 11.97 | 0.3645 |
| Wasp | 100 | 7/4.39 | 106.00 | 13.17 | 290.20 | 16.00 | 0.2702 |
| Hornet | 150 | 19/3.25 | 157.60 | 16.25 | 433.60 | 25.70 | 0.1825 |
| Chater | 200 | 19/3.78 | 213.20 | 18.90 | 586.60 | 32.40 | 0.1349 |
| Cockroach | 250 | 19/4.22 | 265.70 | 21.10 | 731.20 | 40.40 | 0.1083 |
| Butterfly | 300 | 19/4.65 | 322.70 | 23.25 | 887.70 | 48.75 | 0.08916 |
| Drone | 350 | 37/3.58 | 327.60 | 25.06 | 1021.00 | 57.29 | 0.07739 |
| Centipede | 400 | 37/3.78 | 415.20 | 26.46 | 1145.00 | 63.10 | 0.06944 |
| Maybug | 450 | 37/4.09 | 486.20 | 28.63 | 1341.00 | 73.82 | 0.05930 |
| scorpion | 500 | 37/4.27 | 529.80 | 27.89 | 1461.00 | 80.14 | 0.05442 |
| Cicada | 600 | 37/4.65 | 628.30 | 32.55 | 1732.00 | 94.91 | 0.04590 |
