1KV YJV insulated non-armored cable 1KV YJV insulated non-armored cable 1KV YJV insulated non-armored cable 1KV YJV insulated non-armored cable

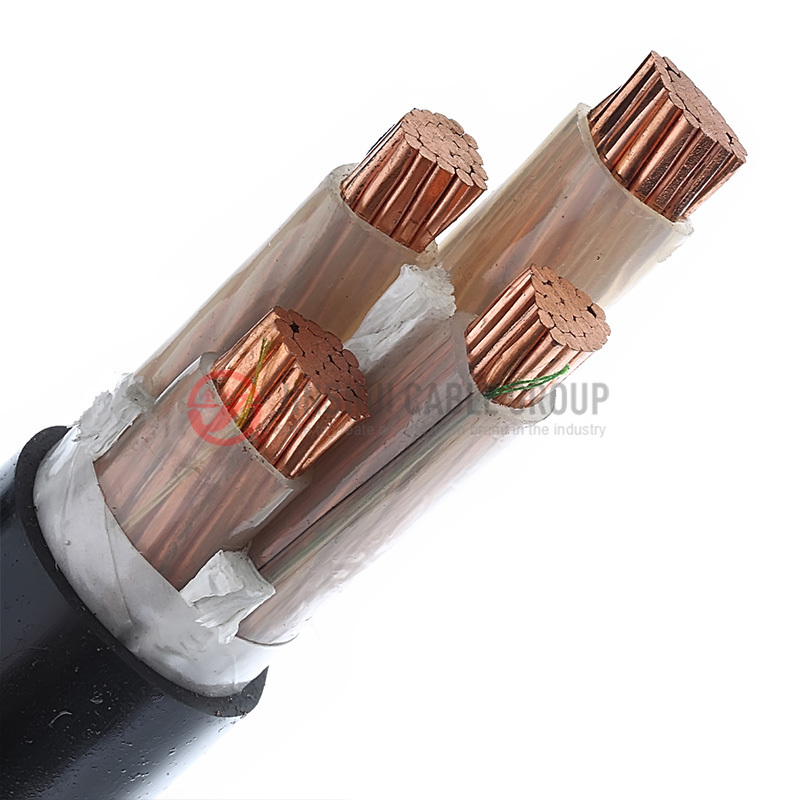

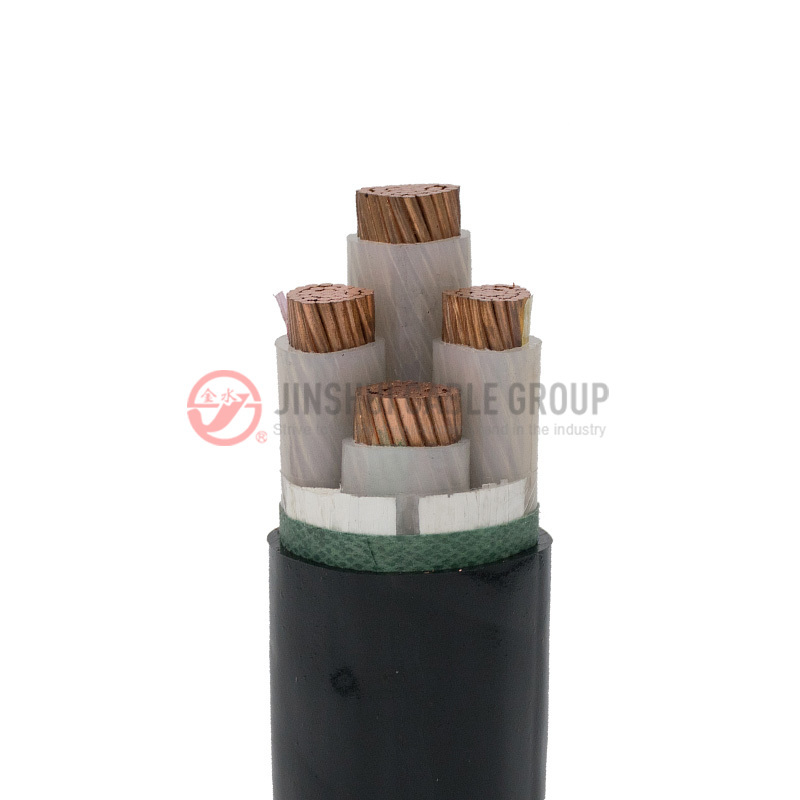

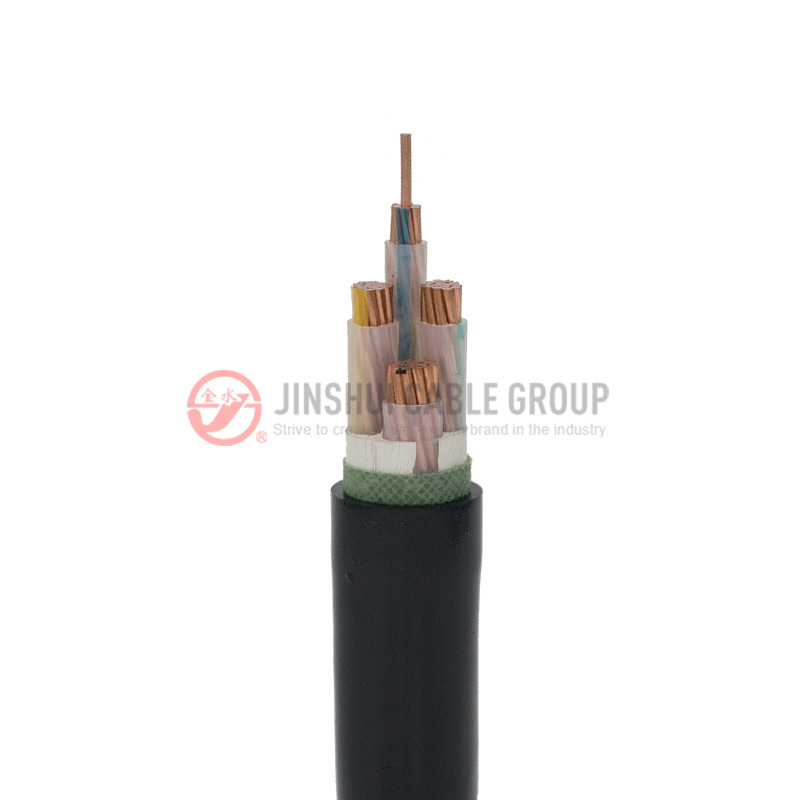

1KV YJV insulated non-armored cable

XLPE insulated power cables has a number of advantages over paper insulated and PVC insulated cable.And it is simple construction, using convenient and higher operating of long term temperature.
Qualification

You can send us an email：jscable@cnjscable.com

keywords：

Category：

Low Voltage Cable

Inquiry Inquiry
Contact
Facebook Linkedin Twitter Tumblr Pinterest
ADD TO WISHLIST

Overview

Specifications

Construction

Parameter

Related

OVERVIEW

Application

XLPE insulated power cables has a number of advantages over paper insulated and PVC insulated cable.And it is simple construction, using convenient and higher operating of long term temperature.

lt can be laid with no drop restriction.

Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology(peroxide,silance and irradiation cross-linking).

The flame-retardant cable covers all kinds of low-smoking low-halogen,low-smoking halogen free, and non-smoking non-halogen and three classes of A,B,C.

Standard

IEC60502,other standards,GB,BS,VDE,AS/NZS,ICEA,JIS,allowed too.

Product Properties

The long-time permissible working temperature of cable conductive core is not more than 90℃.

During short circuit(max.lasting time is not more than 5 seconds),the max.temperature of cable conductor is not more than 250℃.

XLPE cable has high electric strength, mechanical strength, high-ageing resisting,

environmental stress resisting anti-chemical corrosion.

SPECIFICATIONS

CABLE TYPE No.of
cores		 Nominal Section Area mm2
Copper conductors Aluminum conductors
XLPE insulated PVC/PE sheathed power cable 1 1.5~500 2.5~500
2
3		 1.5~300 2.5~300
3+1
4
3+2
5
4+1		 4~300

CONSTRUCTION

1. Conductor:Copper/Aluminium, Class 1, Class 2 and Class 5 as per IEC60228

2. Insulation:XLPE

3. Fillers:Non-hygroscopic polypropylene(PP) yarn

4. Outer sheath:

PARAMETER

1KV XLPE insulated PVC sheathed power cable

Nominal
Cross-Section
Area
（mm2）		 Insulation
Nominal
Thick.
(mm)		 Sheath
Nominal
Thick.
(mm)		 Approx.
Overall
Dia.
(mm)		 Finished cable
(kg/km)
        Cu AL
1X1.5 0.7 1.4 5.58 43 34
1X2.5 0.7 1.4 5.98 55 40
1X4 0.7 1.4 6.45 72 48
1X6 0.7 1.4 6.96 95 58
1X10 0.7 1.4 8.25 142 79
1X16 0.7 1.4 9.30 204 104
1X25 0.9 1.4 11.02 306 148
1X35 0.9 1.4 12.16 404 184
1X50 1 1.4 13.70 531 234
1X70 1.1 1.4 15.7 743 314
1X95 1.1 1.5 17.8 1007 418
1X120 1.2 1.5 19.61 1254 502
1X150 1.4 1.6 21.75 1539 616
1X185 1.6 1.6 24.04 1913 754
1X240 1.7 1.7 27.05 2487 964
1X300 1.8 1.8 29.88 3096 1186
1X400 2 1.9 33.45 3937 1493
1X500 2.2 2.0 37.65 5082 1904
2X1.5 0.7 1.8 9.3 105 -
2X2.5 0.7 1.8 10.1 134 103
2X4 0.7 1.8 11.04 173 124
2X6 0.7 1.8 12.06 223 149
2X10 0.7 1.8 14.64 337 209
2X16 0.7 1.8 16.74 475 273
2X25 0.9 1.8 16.03 615 304
2X35 0.9 1.8 17.53 808 376
2X50 1 1.8 19.68 1064 479
2X70 1.1 1.9 22.46 1512 652
2X95 1.1 2.0 25.44 2012 840
2X120 1.2 2.1 27.92 2508 1030
2X150 1.4 2.2 30.83 3085 1261
2X185 1.6 2.3 34.23 3840 1558
2X240 1.7 2.5 38.50 4993 1994
2X300 1.8 2.6 42.33 6201 2438
3X1.5 0.7 1.8 12.93 248 -
3X2.5 0.7 1.8 13.79 304 257
3X4 0.7 1.8 14.80 370 296
3X6 0.7 1.8 15.9 455 342
3X10 0.7 1.8 18.68 639 450
3X16 0.7 1.8 20.94 860 561
3X25 0.9 1.8 20.7 1075 599
3X35 0.9 1.8 22.6 1379 719
3X50 1 1.8 25.2 1785 892
3X70 1.1 2.0 30.5 2830 1516
3X95 1.1 2.1 34.2 3659 1867
3X120 1.2 2.2 37.2 4464 2204
3X150 1.4 2.4 40.9 5416 2628
3X185 1.6 2.5 45.3 6635 3146
3X240 1.7 2.7 50.2 8470 3883
3X300 1.8 2.9 55.4 10409 4656
4X4 0.7 1.8 12.55 266 166
4X6 0.7 1.8 13.78 356 205
4X10 0.7 1.8 16.9 548 295
4X16 0.7 1.8 19.43 800 399
4X25 0.9 1.8 21.25 1150 526
4X35 0.9 1.8 23.4 1527 662
4X50 1 1.9 26.71 2039 866
4X70 1.1 2.0 30.52 2915 1180
4X95 1.1 2.1 34.83 3896 1545
4X120 1.2 2.3 38.4 4883 1918
4X150 1.4 2.4 42.44 5012 2353
4X185 1.6 2.6 47.37 7514 2936
5X1.5 0.7 1.8 11.25 173 -
5X2.5 0.7 1.8 12.33 233 155
5X4 0.7 1.8 13.6 319 193
5X6 0.7 1.8 14.97 430 241
5X10 0.7 1.8 18.46 666 349
5X16 0.7 1.8 21.2 978 476
5X25 0.9 1.8 23.58 1420 640
5X35 0.9 1.8 26 1890 807
5X50 1 2.0 29.94 2539 1074
5X70 1.1 2.1 34.17 3630 1473
5X95 1.1 2.3 39.26 4871 1932
5X120 1.2 2.4 42.99 6081 2374
5X150 1.4 2.6 47.73 7508 2935
5X185 1.6 2.8 53.24 9382 3659
5X240 1.7 3.0 59.95 12206 4684
5X300 1.8 3.2 66.28 15209 5772



Nominal
Cross-Section
Area(mm2)		 Insulation Nominal Thick.
(mm)		 Sheath
Nominal
Thick.(mm)		 Approx.
Overall
Dia.(mm)		 Finished cable
(kg/km)
Phase core Neutral core Cu AL
3X2.5+1X1.5 0.7 0.7 1.8 11.18 183 -
3X4 +1X2.5 0.7 0.7 1.8 12.27 247 156
3X6 +1X 4 0.7 0.7 1.8 13.47 331 192
3X10 +1X 6 0.7 0.7 1.8 16.12 495 267
3X16+1X 10 0.7 0.7 1.8 18.8 730 366
3X25 +1X 16 0.9 0.7 1.8 20.78 1054 486
3X35 +1X 16 0.9 0.7 1.8 22.4 1342 591
3X50 +1X 25 1 0.9 1.8 25.29 1808 772
3X70 +1X 35 1.1 0.9 1.9 28.82 2565 1054
3X95 +1X 50 1.1 1 2.1 33.06 3443 1386
3X120 +1X 70 1.2 1.1 2.2 36.54 4396 1739
3X150 +1X 70 1.4 1.1 2.3 39.75 5243 2066
3X185 +1X 95 1.6 1.1 2.5 44.67 6622 2598
3X240 +1X 120 1.7 1.2 2.7 50.05 8571 3314
3X300 +1X 150 1.8 1.4 2.9 55.33 10667 4087
4X2.5+1X1.5 0.7 0.7 1.8 12.11 218 -
4X4 +1X2.5 0.7 0.7 1.8 13.34 297 181
4X6 +1X 4 0.7 0.7 1.8 14.7 402 226
4X10 +1X 6 0.7 0.7 1.8 17.76 609 319
4X16+1X 10 0.7 0.7 1.8 20.72 902 437
4X25 +1X 16 0.9 0.7 1.8 23.11 1329 604
4X35 +1X 16 0.9 0.7 1.8 25.03 1715 748
4X50 +1X 25 1 0.9 1.9 28.55 2323 993
4X70 +1X 35 1.1 0.9 2.1 32.72 3312 1369
4X95 +1X 50 1.1 1 2.2 37.35 4429 1783
4X120 +1X 70 1.2 1.1 2.4 41.39 5644 2245
4X150 +1X 70 1.4 1.1 2.5 45.14 6773 2681
4X185 +1X 95 1.6 1.1 2.7 50.63 8533 3365
4X240 +1X 120 1.7 1.2 2.9 56.79 11057 4294
4X300 +1X 150 1.8 1.4 3.1 62.78 13762 5293
