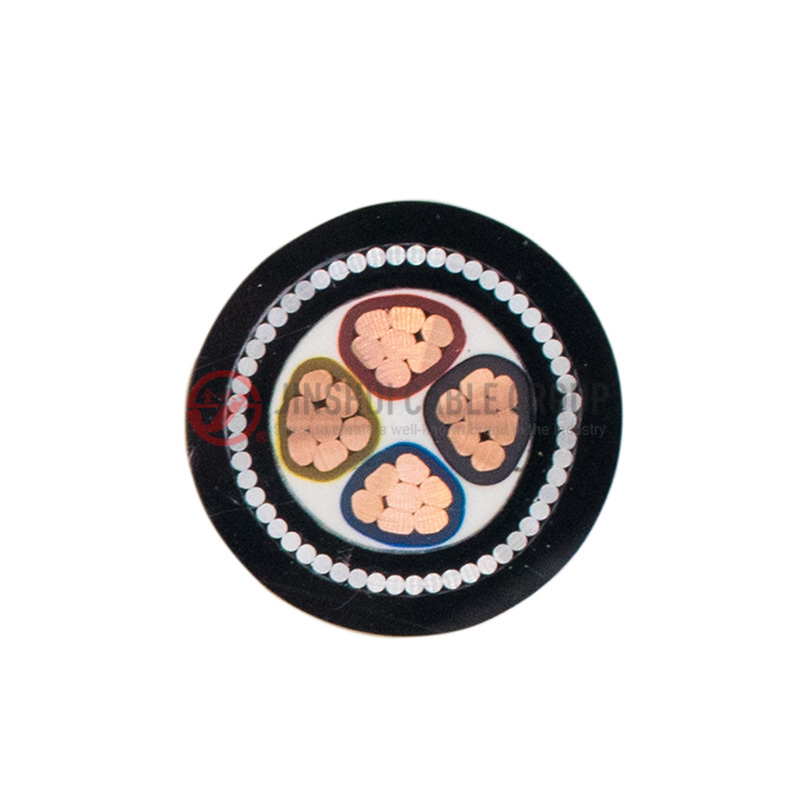

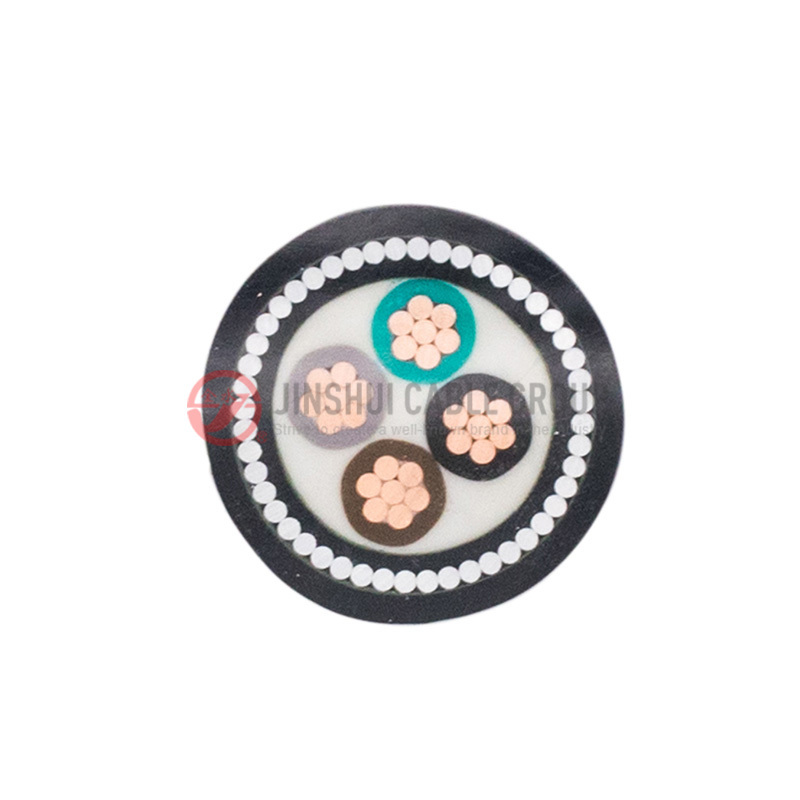

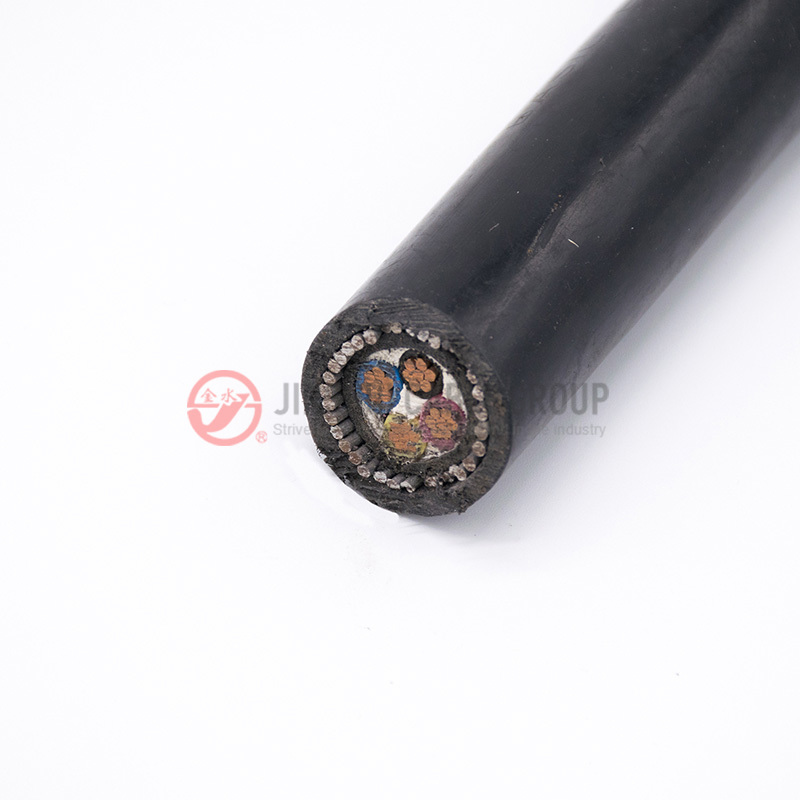

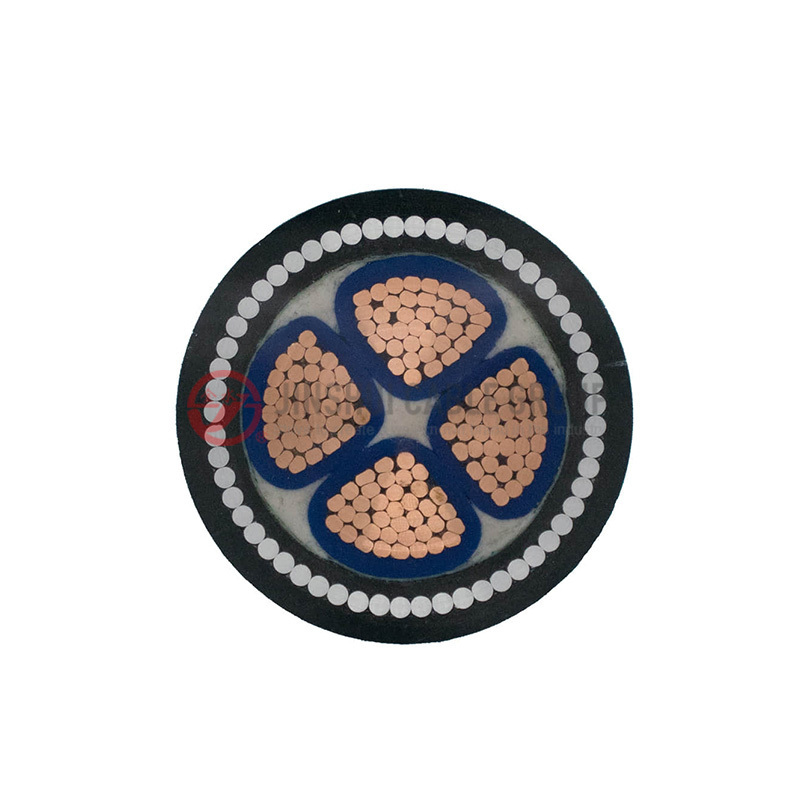

1kv PVC insulated SWA armored cable
You can send us an email：jscable@cnjscable.com
keywords：
Category：
OVERVIEW
Application
PVC insulated Power cables are commonly used products in power systems,with sturdy structures.
They have characteristics of stable capability,advanced technology,broad material resources,low price,good flexible and easy to lay and maintain,and suitable to be laid for distribution line with A.C.50HZ and rated voltage 10kv and below.
Standard
IEC60502,other standard,GB,BS,VDE,AS/NZS,ICEA,JIS,allowed too.
Product Properties
The long-time permissible working temperature of cable conductive core is not more than 70℃.
During short circuit(max.lasting time is not more than 5 seconds),the max.temperature of cable conductor is not more than 165℃.
The difference level of laying cable is not restricted.When laying the cable,ambient temperature is not lower than 0℃.
They have good chemical stability,and properties of acid resistance,alkali resistance,salt resistance,oil resistance,solvent resistance and flame resistance.
Light weight,good bending property and easy installation and maintenance.
SPECIFICATIONS
| CABLE TYPE | No.of cores |
Nominal Section Area mm2 | |
| Copper conductors | Aluminum conductors | ||
| PVC insulated Steel Wire Armor PVC/PE sheathed power cable | 1 | 1.5~500 | 2.5~500 |
| 2 3 |
1.5~300 | 2.5~300 | |
| 3+1,4 3+2,5 4+1 |
4~300 | ||
Note: armor of single core power cable should be non-magnetic material or the structure,which will reduce the magnetic loss.
CONSTRUCTION
1.Conductor：Copper/Aluminium, Class 1, Class 2 and Class 5 as per IEC60228,
2.insulation:PVC
3.fillers:Non-hygroscopic polypropylene(PP) yarn
4.wrapping tape:Non-woven fabric tape, or other similar tape
5.Inner sheath:Lapped tape bedding, or extruded PVC
6.Steel wire armor
7.outer sheath
PARAMETER
PVC insulated SWA Armored PVC sheathed power cable
| Nominal Cross-Section Area（mm2） |
Insulation Nominal Thick.(mm) |
SWA armor Wire Dia.(mm) |
Sheath Nominal Thick.(mm) |
Approx. Overall Dia.(mm) |
Finished cable (kg/km) |
|
| Cu | AL | |||||
| 3X1.5 | 0.8 | 0.8 | 1.8 | 14.16 | 342 | - |
| 3X2.5 | 0.8 | 0.8 | 1.8 | 15.02 | 397 | 350 |
| 3X4 | 1.0 | 1.3 | 1.8 | 17.89 | 642 | 567 |
| 3X6 | 1.0 | 1.3 | 1.8 | 18.99 | 753 | 640 |
| 3X10 | 1.0 | 1.6 | 1.8 | 22.37 | 1103 | 914 |
| 3X16 | 1.0 | 1.6 | 1.8 | 24.63 | 1379 | 1080 |
| 3X25 | 1.2 | 1.6 | 1.8 | 24.3 | 1693 | 1217 |
| 3X35 | 1.2 | 1.6 | 1.8 | 26.1 | 2080 | 1420 |
| 3X50 | 1.4 | 1.6 | 1.9 | 29.2 | 2622 | 1729 |
| 3X70 | 1.4 | 2.0 | 2.0 | 33.1 | 3662 | 2347 |
| 3X95 | 1.6 | 2.0 | 2.2 | 37.4 | 4698 | 2906 |
| 3X120 | 1.6 | 2.5 | 2.3 | 41.2 | 5964 | 3704 |
| 3X150 | 1.8 | 2.5 | 2.4 | 44.7 | 7087 | 4298 |
| 3X185 | 2.0 | 2.5 | 2.5 | 48.8 | 8489 | 5000 |
| 3X240 | 2.2 | 2.5 | 2.7 | 54.2 | 10574 | 5988 |
| 3X300 | 2.4 | 2.5 | 2.9 | 59.3 | 12774 | 7021 |
| 4X4 | 1.0 | 1.25 | 1.8 | 18.8 | 728 | 628 |
| 4X6 | 1.0 | 1.25 | 1.8 | 20.03 | 858 | 708 |
| 4X10 | 1.0 | 1.6 | 1.8 | 23.84 | 1274 | 1023 |
| 4X16 | 1.0 | 1.6 | 1.8 | 26.38 | 1629 | 1235 |
| 4X25 | 1.2 | 1.6 | 1.9 | 27.8 | 2087 | 1453 |
| 4X35 | 1.2 | 1.6 | 2.0 | 30.2 | 2573 | 1694 |
| 4X50 | 1.4 | 1.6 | 2.1 | 33.7 | 3276 | 2085 |
| 4X70 | 1.4 | 2.0 | 2.3 | 38.3 | 4564 | 2811 |
| 4X95 | 1.6 | 2.0 | 2.4 | 43.2 | 5873 | 3485 |
| 4X120 | 1.6 | 2.5 | 2.6 | 47.8 | 7464 | 4451 |
| 4X150 | 1.8 | 2.5 | 2.7 | 51.8 | 8848 | 5131 |
| 4X185 | 2.0 | 2.5 | 2.9 | 56.9 | 10735 | 6083 |
| 5X1.5 | 0.8 | 1.25 | 1.8 | 16.69 | 568 | - |
| 5X2.5 | 0.8 | 1.25 | 1.8 | 17.77 | 657 | 578 |
| 5X4 | 1.0 | 1.25 | 1.8 | 20.12 | 848 | 723 |
| 5X6 | 1.0 | 1.6 | 1.8 | 22.19 | 1128 | 940 |
| 5X10 | 1.0 | 1.6 | 1.8 | 25.68 | 1498 | 1183 |
| 5X16 | 1.0 | 1.6 | 1.9 | 28.71 | 1949 | 1450 |
| 5X25 | 1.2 | 1.6 | 1.9 | 29.6 | 3881 | 3088 |
| 5X35 | 1.2 | 2.0 | 2.0 | 33.6 | 4644 | 3545 |
| 5X50 | 1.4 | 2.0 | 2.2 | 38.6 | 5980 | 4491 |
| 5X70 | 1.4 | 2.0 | 2.3 | 43.1 | 7668 | 5477 |
| 5X95 | 1.6 | 2.5 | 2.6 | 50.1 | 9806 | 6820 |
| 5X120 | 1.6 | 2.5 | 2.7 | 54.10 | 11501 | 7735 |
| 5X150 | 1.8 | 2.5 | 2.9 | 59.4 | 13780 | 9133 |
| 5X185 | 2.0 | 2.5 | 3.1 | 64.9 | 16562 | 10748 |
| 5X240 | 2.2 | 3.15 | 3.3 | 73.6 | 20662 | 13019 |
| 5X300 | 2.4 | 3.15 | 3.6 | 80.7 | 25004 | 15416 |
