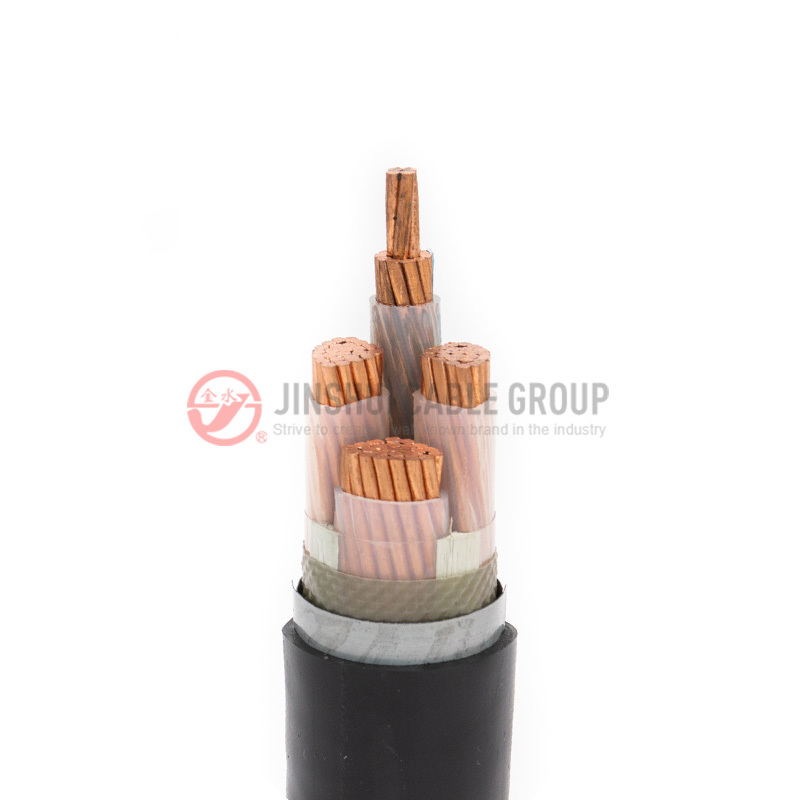

1kv YJV insulated STA armored cable 1kv YJV insulated STA armored cable

1kv YJV insulated STA armored cable

XLPE insulated power cables has a number of advantages over paper insulated and PVC insulated cable.And it is simple construction, using convenient and higher operating of long term temperature.
Qualification

You can send us an email：jscable@cnjscable.com

keywords：

Category：

Low Voltage Cable

Inquiry Inquiry
Contact
Facebook Linkedin Twitter Tumblr Pinterest
ADD TO WISHLIST

Overview

Specifications

Construction

Parameter

Related

OVERVIEW

Application

XLPE insulated power cables has a number of advantages over paper insulated and PVC insulated cable.And it is simple construction, using convenient and higher operating of long term temperature.

lt can be laid with no drop restriction.

Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology(peroxide,silance and irradiation cross-linking).

The flame-retardant cable covers all kinds of low-smoking low-halogen,low-smoking halogen free, and non-smoking non-halogen and three classes of A,B,C.

Standard

IEC60502,other standards,GB,BS,VDE,AS/NZS,ICEA,JIS,allowed too.

Product Properties

The long-time permissible working temperature of cable conductive core is not more than 90℃.

During short circuit(max.lasting time is not more than 5 seconds),the max.temperature of cable conductor is not more than 250℃.

XLPE cable has high electric strength, mechanical strength, high-ageing resisting,

environmental stress resisting anti-chemical corrosion.

SPECIFICATIONS

CABLE TYPE No.of
cores		 Nominal Section Area mm2
Copper conductors Aluminum conductors
XLPE insulated Steel tape Armor PVC/PE sheathed power cable 1 1.5~500 2.5~500
2
3		 1.5~300 2.5~300
3+1,4
3+2,5
4+1		 4~300

Note: armor of single core power cable should be non-magnetic material or the structure,which will reduce the magnetic loss.

CONSTRUCTION

1.Conductor：Copper/Aluminium, Class 1, Class 2 and Class 5 as per IEC60228,

2.insulation:XLPE/TR-XLPE

3.fillers:Non-hygroscopic polypropylene(PP) yarn

4.wrapping tape:Non-woven fabric tape, or other similar tape

5.Inner sheath:Lapped tape bedding, or extruded PVC

6.Steel tape armor

7.outer sheath: PVC/ LSZH/ MDPE/ HDPE

PARAMETER

1KV XLPE insulated STA Armored PVC sheathed power cable

Nominal
Cross-Section
Area
(mm2)		 Insulation
Nominal
Thick.
(mm)		 STA armor
thick.*width*layers
(mm*mm*No.)		 Sheath
Nominal
Thick.
(mm)		 Approx.
Overall
Dia.
(mm)		 Finished cable
(kg/km)
Cu AL
2X1.5 0.7 0.2*20*2 1.8 12.5 223
2X2.5 0.7 0.2*20*2 1.8 13.3 260 229
2X4 0.7 0.2*20*2 1.8 14.24 310 260
2X6 0.7 0.2*20*2 1.8 15.26 372 297
2X10 0.7 0.2*20*2 1.8 17.84 511 385
2X16 0.7 0.2*20*2 1.8 19.94 672 472
2X25 0.9 0.2*25*2 1.8 18 776 459
2X35 0.9 0.2*25*2 1.8 19.5 985 546
2X50 1 0.2*25*2 1.8 21.6 1265 670
2X70 1.1 0.2*25*2 1.9 24.4 1745 868
2X95 1.1 0.5*30*2 2.0 29.1 2594 1400
2X120 1.2 0.5*30*2 2.1 31.6 3147 1641
2X150 1.4 0.5*30*2 2.3 34.7 3807 1948
2X185 1.6 0.5*35*2 2.4 38.1 4644 2318
2X240 1.7 0.5*35*2 2.6 42.4 5900 2843
2X300 1.8 0.5*35*2 2.7 46.2 7203 3368
3X1.5 0.7 0.2*20*2 1.8 12.93 248
3X2.5 0.7 0.2*20*2 1.8 13.79 304 257
3X4 0.7 0.2*20*2 1.8 14.8 371 296
3X6 0.7 0.2*20*2 1.8 15.9 455 342
3X10 0.7 0.2*20*2 1.8 18.68 639 450
3X16 0.7 0.2*20*2 1.8 20.94 860 561
3X25 0.9 0.2*25*2 1.8 20.7 1075 599
3X35 0.9 0.2*25*2 1.8 22.6 1379 719
3X50 1 0.2*25*2 1.8 25.2 1785 892
3X70 1.1 0.5*30*2 2.0 30.5 2830 1516
3X95 1.1 0.5*30*2 2.1 31.2 3659 1867
3X120 1.2 0.5*30*2 2.2 37.2 4464 2204
3X150 1.4 0.5*35*2 2.4 40.9 5416 2628
3X185 1.6 0.5*35*2 2.5 45.4 6635 3146
3X240 1.7 0.5*35*2 2.7 50.2 8470 3885
3X300 1.8 0.5*45*2 2.9 55.6 10409 4656
4X4 0.7 0.2*20*2 1.8 15.75 484 324
4X6 0.7 0.2*20*2 1.8 16.98 526 398
4X10 0.7 0.2*20*2 1.8 20.1 756 504
4X16 0.7 0.2*20*2 1.8 22.63 1036 637
4X25 0.9 0.2*25*2 1.8 23.2 1377 743
4X35 0.9 0.2*25*2 1.8 25.3 1781 901
4X50 1 0.5*30*2 1.9 30.4 2667 1476
4X70 1.1 0.5*30*2 2.1 34.4 3650 1898
4X95 1.1 0.5*35*2 2.2 38.7 4740 2352
4X120 1.2 0.5*35*2 2.4 42.3 5815 2802
4X150 1.4 0.5*35*2 2.5 46.3 7046 3329
4X185 1.6 0.5*35*2 2.7 51.8 8675 4023
5X1.5 0.7 0.2*20*2 1.8 14.45 318
5X2.5 0.7 0.2*20*2 1.8 15.53 391 313
5X4 0.7 0.2*20*2 1.8 16.8 492 367
5X6 0.7 0.2*20*2 1.8 18.17 519 431
5X10 0.7 0.2*25*2 1.8 21.66 897 582
5X16 0.7 0.2*25*2 1.8 24.49 1241 742
5X25 0.9 0.2*25*2 1.8 25.5 1670 878
5X35 0.9 0.2*25*2 1.9 28.1 2183 1083
5X50 1 0.5*30*2 2.1 33.8 3252 1763
5X70 1.1 0.5*30*2 2.2 38.1 4450 2259
5X95 1.1 0.5*35*2 2.4 43.1 5815 2829
5X120 1.2 0.5*35*2 2.5 46.90 7121 3355
5X150 1.4 0.5*35*2 2.7 51.6 8666 4019
5X185 1.6 0.5*45*2 2.9 57.1 10680 4866
5X240 1.7 0.5*45*2 3.1 63.8 13683 6040
5X300 1.8 0.5*45*2 3.3 70.2 16859 7271



Nominal
Cross-Section
Area
(mm2)		 Insulation Nominal Thick.(mm) STA armor
thick.*width*layers
(mm*mm*No.)		 Sheath
Nominal
Thick.
(mm)		 Approx.
Overall
Dia.
(mm)		 Finished cable
(kg/km)
Phase core Neutral core Cu AL
3X2.5+1X1.5 0.7 0.7 0.2*20*2 1.8 14.38 326
3X4 +1X2.5 0.7 0.7 0.2*20*2 1.8 15.47 404 312
3X6 +1X 4 0.7 0.7 0.2*20*2 1.8 16.67 503 364
3X10 +1X 6 0.7 0.7 0.2*20*2 1.8 19.32 699 471
3X16+1X 10 0.7 0.7 0.2*25*2 1.8 22 967 602
3X25 +1X 16 0.9 0.7 0.2*25*2 1.8 23.58 1273 704
3X35 +1X 16 0.9 0.7 0.2*25*2 1.8 25.2 1577 827
3X50 +1X 25 1 0.9 0.2*25*2 1.9 28.29 2086 1050
3X70 +1X 35 1.1 0.9 0.5*30*2 2.0 33.02 3235 1724
3X95 +1X 50 1.1 1 0.5*30*2 2.2 37.26 4206 2148
3X120 +1X 70 1.2 1.1 0.5*35*2 2.3 40.74 5236 2579
3X150 +1X 70 1.4 1.1 0.5*35*2 2.5 44.15 6174 2996
3X185 +1X 95 1.6 1.1 0.5*35*2 2.6 48.87 7641 3617
3X240 +1X 120 1.7 1.2 0.5*35*2 2.8 54.25 9709 4452
3X300 +1X 150 1.8 1.4 0.5*45*2 3.0 59.53 11920 5340
4X2.5+1X1.5 0.7 0.7 0.2*20*2 1.8 15.31 374
4X4 +1X2.5 0.7 0.7 0.2*20*2 1.8 16.54 469 352
4X6 +1X 4 0.7 0.7 0.2*20*2 1.8 17.9 590 414
4X10 +1X 6 0.7 0.7 0.2*25*2 1.8 20.96 835 544
4X16+1X 10 0.7 0.7 0.2*25*2 1.8 23.02 1161 699
4X25 +1X 16 0.9 0.7 0.2*25*2 1.8 25.91 1575 850
4X35 +1X 16 0.9 0.7 0.2*25*2 1.8 27.83 1981 1015
4X50 +1X 25 1 0.9 0.5*30*2 2.0 32.75 2991 1662
4X70 +1X 35 1.1 0.9 0.5*30*2 2.2 36.92 4072 2130
4X95 +1X 50 1.1 1 0.5*35*2 2.3 41.55 5294 2648
4X120 +1X 70 1.2 1.1 0.5*35*2 2.5 45.59 6597 3199
4X150 +1X 70 1.4 1.1 0.5*35*2 2.6 49.84 7811 3749
4X185 +1X 95 1.6 1.1 0.5*45*2 2.8 54.83 9691 4525
4X240 +1X 120 1.7 1.2 0.5*45*2 3.0 60.99 12355 5592
4X300 +1X 150 1.8 1.4 0.5*45*2 3.2 66.98 15194 6725
