6~35KV Tape armored MV Cable

Medium voltage XLPE Insulation power cable is suitable for use in rated AC voltage 6~35kV system transmission and distribution Iines.
Qualification

You can send us an email：jscable@cnjscable.com

keywords：

Category：

Medium Voltage Cable

Inquiry Inquiry
Contact
Facebook Linkedin Twitter Tumblr Pinterest
ADD TO WISHLIST

Overview

Specifications

Construction

Parameter

Related

OVERVIEW

Application

Medium voltage XLPE Insulation power cable is suitable for use in rated AC voltage 6~35kV system transmission and distribution Iines.

Depending on different protective layer, it can be laid separately in air, cable tray, indoor wall bracket, cable box, direct burial underground , cable trenches, pipes and etc.

Standard

IEC60502-2; IEC60228; IEC60332-1/2/3; BS6622; BS7835; DIN VDE 0276-620; AS/NZS 1429.1; GB/T12706; ICEA-S-66-524;

SPECIFICATIONS

Core number: 1core, 3 core

Armour: Aluminium tape (ATA), Galvanized Steel tape (STA)

Max. Long-term operating temperature for cable conductor is 90℃

The ambient temperature for installation: ≥0℃

When cable in short-circuit, max. conductor temperature is 250℃ with duration no longer than 5 seconds

Property of flame retardant, fire resistance, water proof , Low smoke halogen free can be chosen.

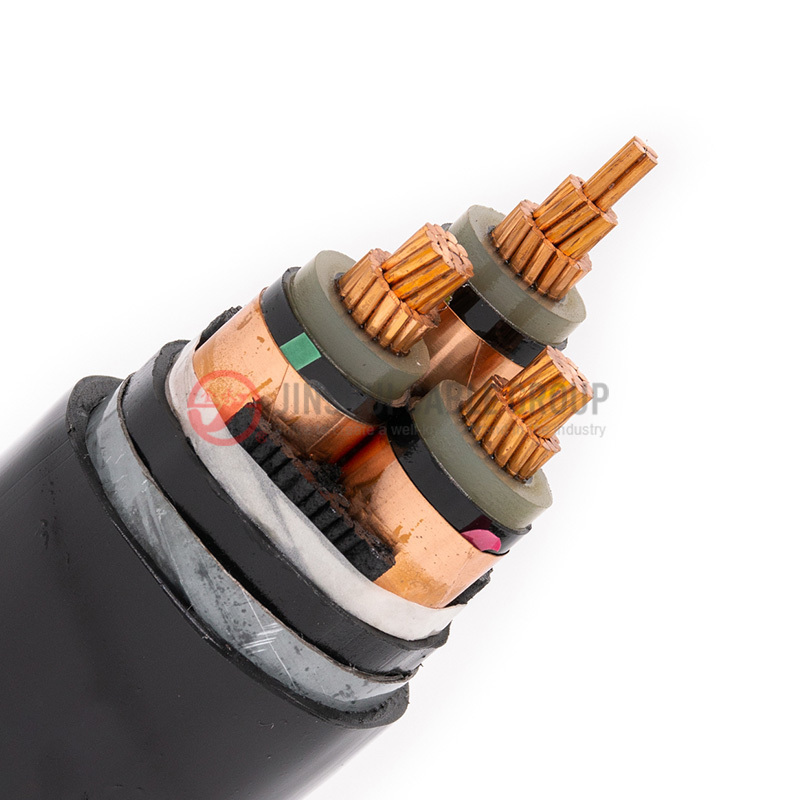

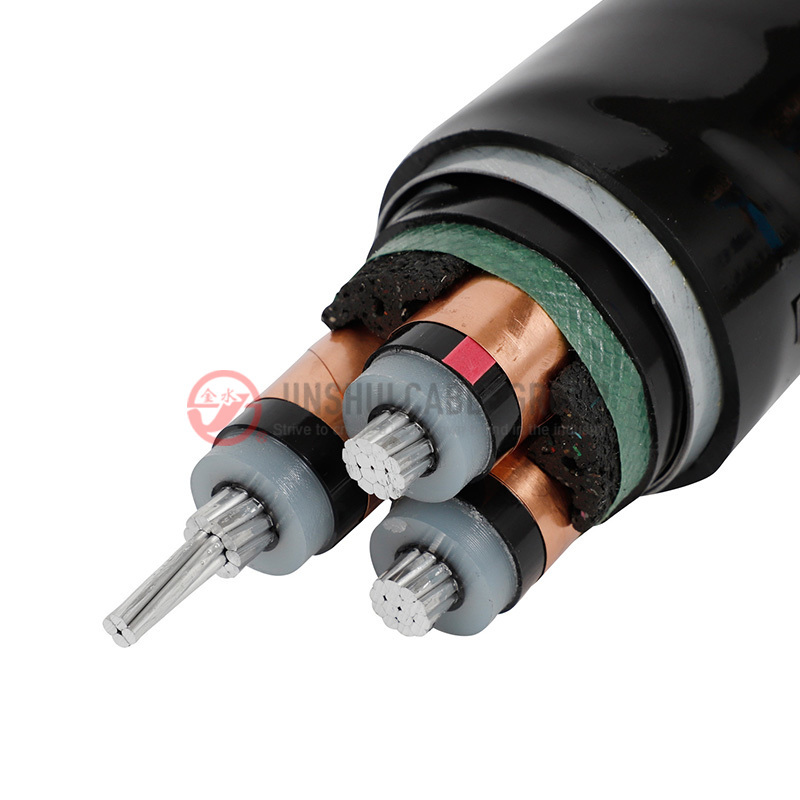

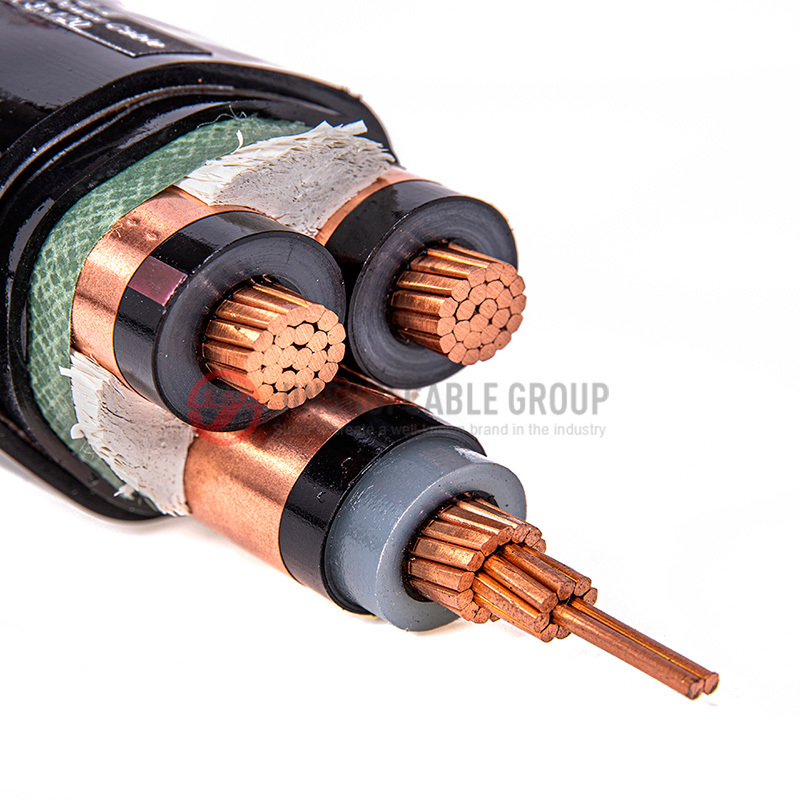

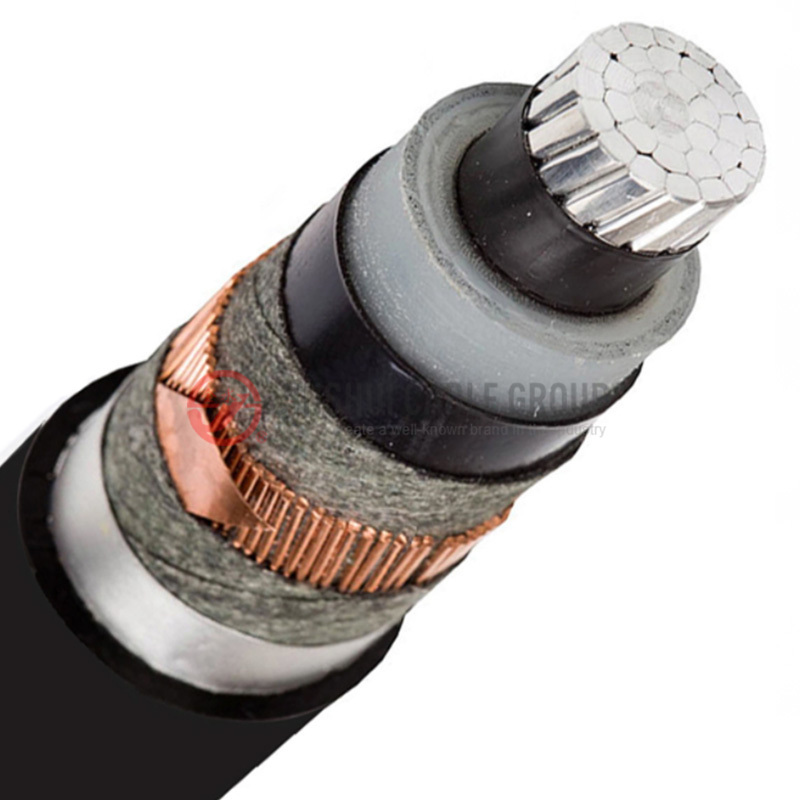

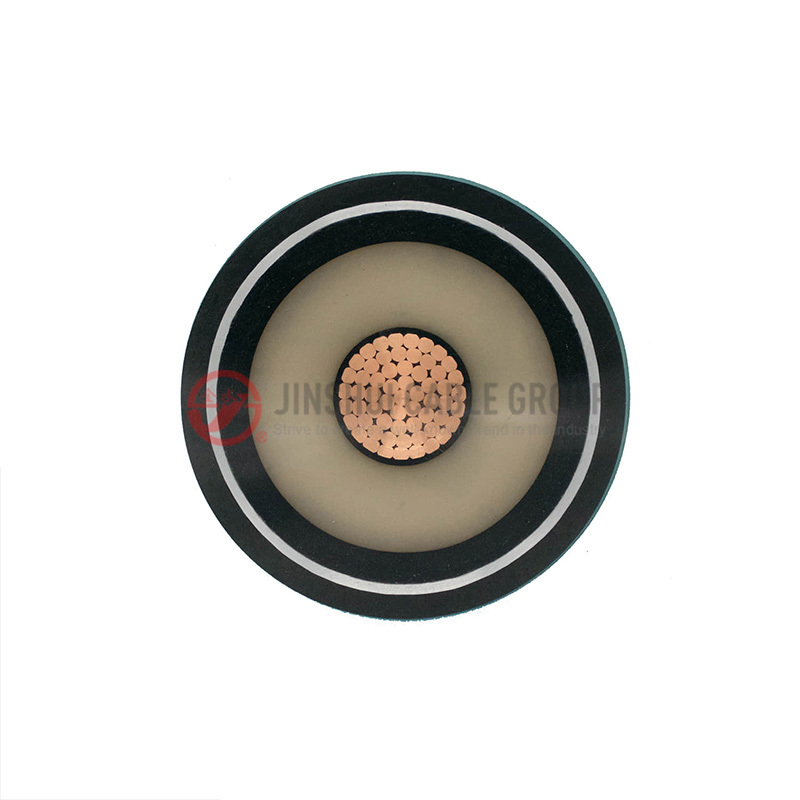

CONSTRUCTION

1. Conductor (Copper, Aluminium)

2. Conductor screen

3. Insulation (XLPE, TR-XLPE)

4. Insulation screen

5. Copper screen ( Copper tape, Copper wire)

6. Filler

7. Wrapping tape

8. Tape armor (Aluminium tape, steel tape)

9. Inner sheath (PVC, LSHF)

10. Wrapping tape

11. Outer sheath (PVC, PE,HDPE, LSHF)

PARAMETER

  • Rated voltage 3.6/6KV (7.2KV) Steel Tape Armour Cable (STA)
  • Rated voltage 6/10KV (11KV) Steel Tape Armour Cable （STA）
  • Rated voltage 8.7/15KV (17.5KV) Steel Tape Armour Cable （STA）
  • Rated voltage 12/20KV (24KV) Steel Tape Armour Cable （STA）
  • Rated voltage 18/30KV (36KV) Steel Tape Armour Cable （STA）
  • Rated voltage 26/35KV (40.5KV) Steel Tape Armour Cable (STA)
Nominal.
Section		 Conductor dia. Nominal. Insinuation thickness Cable Approx.
Overall dia.
mm		 Cable Approx.
Weight.
Kg/Km		 Max. D.C. resistance at 20℃  Ω/KM
mm2 mm mm Three core Three core CU AL
CU AL
10 3.69 2.5 30.20 1783 1599 1.83 3.08
16 4.74 2.5 32.40 2085 1790 1.15 1.91
25 6.00 2.5 35.40 2532 2062 0.727 1.2
35 7.00 2.5 37.70 2976 2326 0.524 0.868
50 8.30 2.5 40.70 3519 2639 0.387 0.641
70 10.00 2.5 44.60 4381 3108 0.268 0.443
95 11.60 2.5 48.20 5361 3598 0.193 0.320
120 13.00 2.5 51.70 6333 4104 0.153 0.253
150 14.60 2.5 55.30 7376 4638 0.124 0.206
185 16.20 2.5 58.90 8678 5239 0.0991 0.164
240 18.40 2.6 64.50 10746 6233 0.0754 0.125
300 20.60 2.8 70.50 12969 7328 0.0601 0.100
400 23.50 3.0 78.20 16976 9727 0.0470 0.0778
500 26.6 3.2 87.00 21005 11683 0.0366 0.0605
Nominal.
Section		 Conductor dia. Nominal. Insinuation thickness Cable Approx.
Overall dia.
mm		 Cable Approx.
Weight.
Kg/Km		 Max. D.C. resistance at 20℃  Ω/KM
mm2 mm mm Three core Three core CU AL
CU AL
16 4.74 3.4 40.69 2388 2093 1.15 1.91
25 6.00 3.4 43.46 2871 2401 0.727 1.2
35 7.00 3.4 49.04 3620 2971 0.524 0.868
50 8.30 3.4 52.05 4202 3322 0.387 0.641
70 10.00 3.4 53.07 4780 3507 0.268 0.443
95 11.60 3.4 56.73 5775 4013 0.193 0.320
120 13.00 3.4 60.15 6741 4511 0.153 0.253
150 14.60 3.4 63.38 7775 5037 0.124 0.206
185 16.20 3.4 68.02 8949 5510 0.0991 0.164
240 18.40 3.4 72.37 11172 6660 0.0754 0.125
300 20.60 3.4 77.29 13309 7669 0.0601 0.100
400 23.50 3.4 85.78 17162 9912 0.0470 0.0778
500 26.6 3.4 92.00 21065 11742 0.0366 0.0605
Nominal.
Section		 Conductor dia. Nominal. Insinuation thickness Cable Approx.
Overall dia.
mm		 Cable Approx.
Weight.
Kg/Km		 Max. D.C. resistance at 20℃  Ω/KM
mm2 mm mm Three core Three core CU AL
CU AL
25 6.00 4.5 48.62 3339 2869 0.727 1.2
35 7.00 4.5 51.59 3797 3147 0.524 0.868
50 8.30 4.5 54.80 4406 3526 0.387 0.641
70 10.00 4.5 58.02 5294 4021 0.268 0.443
95 11.60 4.5 62.08 6376 4613 0.193 0.320
120 13.00 4.5 65.50 7370 5141 0.153 0.253
150 14.60 4.5 68.73 8431 5693 0.124 0.206
185 16.20 4.5 72.37 9817 6378 0.0991 0.164
240 18.40 4.5 77.72 11906 7393 0.0754 0.125
300 20.60 4.5 83.84 14922 9282 0.0601 0.100
400 23.50 4.5 91.14 18054 10804 0.0470 0.0778
500 26.6 4.5 97.35 22019 12696 0.0366 0.0605
Nominal.
Section		 Conductor dia. Nominal. Insinuation thickness Cable Approx.
Overall dia.
mm		 Cable Approx.
Weight.
Kg/Km		 Max. D.C. resistance at 20℃  Ω/KM
mm2 mm mm Three core Three core CU AL
CU AL
25 6.00 5.5 53.94 3984 3514 0.727 1.2
35 7.00 5.5 56.51 4463 3813 0.524 0.868
50 8.30 5.5 59.72 5104 4224 0.387 0.641
70 10.00 5.5 62.94 6026 4753 0.268 0.443
95 11.60 5.5 66.80 7118 5356 0.193 0.320
120 13.00 5.5 70.22 8145 5916 0.153 0.253
150 14.60 5.5 73.45 9239 6501 0.124 0.206
185 16.20 5.5 77.29 10696 7257 0.0991 0.164
240 18.40 5.5 83.84 13685 9173 0.0754 0.125
300 20.60 5.5 88.56 15936 10295 0.0601 0.100
400 23.50 5.5 96.06 19171 11922 0.0470 0.0778
500 26.6 5.5 102.27 23217 13894 0.0366 0.0605
Nominal.
Section		 Conductor dia. Nominal. Insinuation thickness Cable Approx.
Overall dia.
mm		 Cable Approx.
Weight.
Kg/Km		 Max. D.C. resistance at 20℃  Ω/KM
mm2 mm mm Three core Three core CU AL
CU AL
25 6.00 8.0 65.94 5323 4853 0.727 1.2
35 7.00 8.0 68.51 5841 5191 0.524 0.868
50 8.30 8.0 71.72 6539 5659 0.387 0.641
70 10.00 8.0 75.14 7565 6292 0.268 0.443
95 11.60 8.0 78.80 8689 6926 0.193 0.320
120 13.00 8.0 83.62 10653 8424 0.153 0.253
150 14.60 8.0 86.85 11847 9109 0.124 0.206
185 16.20 8.0 90.49 13377 9938 0.0991 0.164
240 18.40 8.0 95.84 15665 11153 0.0754 0.125
300 20.60 8.0 100.56 18000 12360 0.0601 0.100
400 23.50 8.0 108.06 21366 14116 0.0470 0.0778
500 26.6 8.0 114.27 25544 16221 0.0366 0.0605
Nominal.
Section		 Conductor dia. Nominal. Insinuation thickness Cable Approx.
Overall dia.
mm		 Cable Approx.
Weight.
Kg/Km		 Max. D.C. resistance at 20℃  Ω/KM
mm2 mm mm Three core Three core CU AL
CU AL
25 6.00 10.5 77.94 6976 6506 0.727 1.2
35 7.00 10.5 81.91 8406 7757 0.524 0.868
50 8.30 10.5 84.92 9156 8276 0.387 0.641
70 10.00 10.5 88.34 10296 9023 0.268 0.443
95 11.60 10.5 92.00 11524 9761 0.193 0.320
120 13.00 10.5 95.62 12753 10523 0.153 0.253
150 14.60 10.5 99.05 14062 11324 0.124 0.206
185 16.20 10.5 102.49 15615 12176 0.0991 0.164
240 18.40 10.5 107.84 18005 13492 0.0754 0.125
300 20.60 10.5 112.56 20438 14798 0.0601 0.100
400 23.50 10.5 120.06 23935 16685 0.0470 0.0778
500 26.6 10.5 126.27 28263 18940 0.0366 0.0605
