8~46kV medium voltage aerial cable
You can send us an email：jscable@cnjscable.com
keywords：
Category：
OVERVIEW
Application
Used for primary and secondary overhead distribution lines where space is limited. Compared with bare conductors, it can prevent short circuits due to the contact with trees or buildings.
SPECIFICATIONS
1. Conductor: Concentrically stranded AAAC or ACSR or AAC
2. Shield: Semi-conducting cross linked polymer
3. Insulation: XLPE/LDPE
4. Sheath: XLPE/HDPE (optional)
Standard：IEC 60502-2 ICEA S-121-733

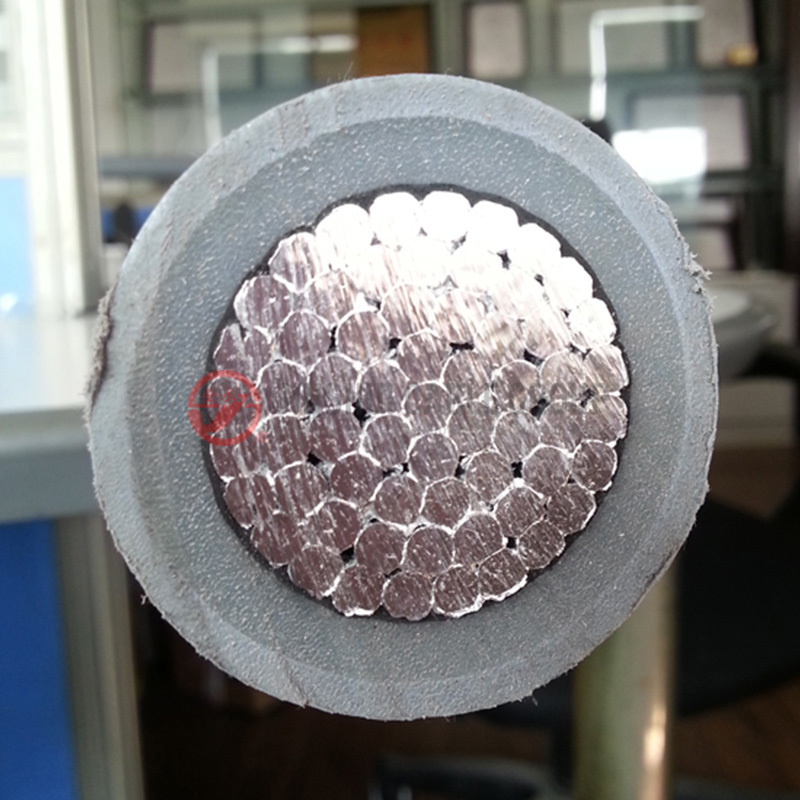

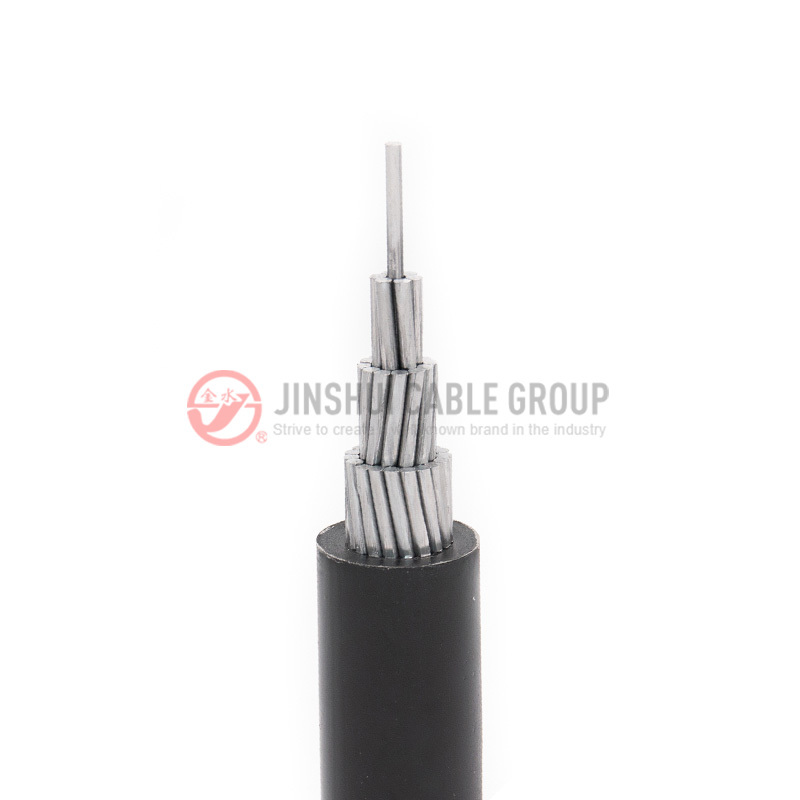

CONSTRUCTION
PARAMETER
- Without sheath
- With sheath
| Voltage (phase to phase)(V) | Conductor Gauge | Shield thinkness(mm) | Insulation Thickness(mm) | Test voltage kVac |
| 8001-15000 | 2AWG – 800kcmil | 0.6 | 3.0 | 18 |
| 15001-25000 | 2AWG – 800kcmil | 0.6 | 4.0 | 30 |
| 25001-35000 | 1/0AWG – 800kcmil | 0.7 | 7.6 | 42 |
