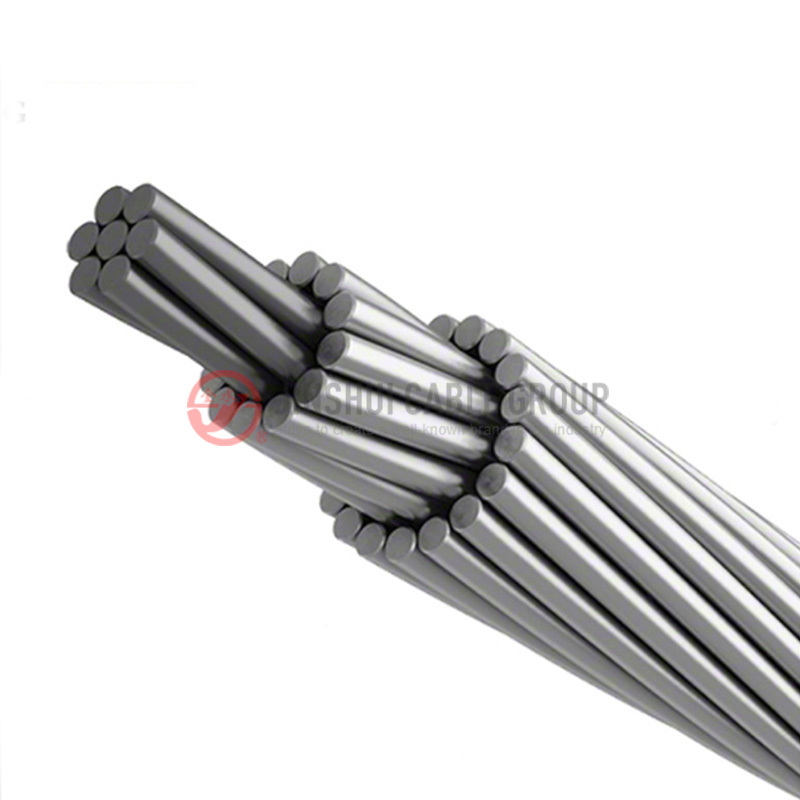

Aluminium Clad Steel Conductor (ACS)

ACS, short for Aluminum Conductor Steel-reinforced, is a specialized type of electrical conductor employed in overhead power transmission lines. It features a central core of steel wires encased by aluminum, offering a unique blend of strength and conductivity, making it an optimal choice for efficiently transmitting electrical power over extensive distances..

You can send us an email：jscable@cnjscable.com

keywords：

Category：

Grouding wire

Inquiry Inquiry

Contact

OVERVIEW

Application：aluminum clad steel wire finds extensive use in various scenarios including long-span transmission lines, coastal and island regions, as well as hot, humid, salt-foggy, and heavily polluted areas where corrosion resistance is paramount. These conductors, categorized by conductivity levels ranging from 14% to 40%, serve diverse purposes such as forming the core of ACSR/AW, overhead ground conductors, extra high voltage overhead conductors, optical fiber composite overhead ground lines, self-damping conductor lines, and more. They are also utilized in bare overhead conductors, OPGW (Optical Ground Wire), ground wires, messenger wires, and guy wires. Additionally, they are employed in protective applications such as fence and barber wire, along with various hardware functionalities.

Standard：ASTM B416，DIN 48201

CONSTRUCTION

PARAMETER

Aluminum Clad Steel Wire/Alumoweld ASTM B416
Aluminum Clad Steel Wire/Alumoweld DIN 48201

Code Number	Area	No. of wires	Diameters		Weight	Rated Strength	DC Resistance
Code Number	mm²	No. of wires	Wire	Conductor	kg/km	kN	ohm/km
3 No 5 Awg.	50,32	3	4,62	9,96	334,1	54,42	1.6990
3 No 6 Awg.	39 ,00	3	4,11	8,87	265,0	45,74	2.1420
3 No 7 Awg.	31,65	3	3,67	7,90	210,1	38,36	2.7010
3 No 8 Awg.	25,10	3	3,26	7,03	166,7	32,06	3.4060
3 No 9 Awg.	19,90	3	2,91	6,26	132,2	25,43	4.2940
3 No 10 Awg.	15,78	3	2,59	5,58	104,8	20,16	5.4150
7 No 5 Awg.	117,40	7	4,62	13,90	781,1	120,27	0,7426
7 No 6 Awg.	93,10	7	4,11	12,40	619,5	101,14	0,9198
7 No 7 Awg.	73,87	7	3,67	11,00	491,1	84,81	1.1600
7 No 8 Awg.	58,56	7	3,26	9,78	389,6	70,88	1.4630
7 No 9 Awg.	46,44	7	2,91	8,71	308,9	56,20	1.8440
7 No 10 Awg.	36,83	7	2,59	7,76	245,1	44,58	2.3250
7 No 11 Awg.	29,21	7	2,30	6,91	194,4	35,35	2.9320
7 No 12 Awg.	23,16	7	2,05	6,16	154,2	28,03	3.6970
19 No 5 Awg.	318,70	19	4,62	23,10	2129,0	326,39	0,2698
19 No 6 Awg.	252,70	19	4,11	20,60	1688,0	274,55	0,3402
19 No 7 Awg.	200,40	19	3,67	18,30	1339,0	230,18	0,4290
19 No 8 Awg.	158,90	19	3,26	16,30	1062,0	192,41	0,5409
19 No 9 Awg.	126,10	19	2,91	14,50	842,0	152,58	0,6821
19 No 10 Awg.	99,96	19	2,59	12,90	667,7	121,00	0,8601
37 No 5 Awg.	620,60	37	4,62	32,30	4170,0	635,43	0,1394
37 No 6 Awg.	492,20	37	4,11	28,80	3307,0	534,85	0,1757
37 No 7 Awg.	390,30	37	3,67	25,70	2623,0	448,09	0,2216
37 No 8 Awg.	309,50	37	3,26	22,90	2080,0	374,67	0,2794
37 No 9 Awg.	245,50	37	2,91	20,30	1649,0	279,11	0,3523
37 No 10 Awg.	194,70	37	2,59	17,90	1308,0	235,61	0,4443

Video

Corporate Video

Industry Solutions

Power grid

New energy

Building

Industry

Marine cable

Telecommunication

Railway

Instrument

Get a free quote

Message(Enter product details such as dimensions, materials, etc. and other specific requirements to get an accurate quote.)

I want more details. Product Request: Customised: Delivery time: Payment: Shipped by boat: Usage:

(Maximum 5 files. Support jpg, jpeg, png, gif, txt, doc, pdf, xls, docx, xlsx, less than 5MB)

Contact and optional details

Send Inquiry Now

Code Number	Area	No. of wires	Diameters(mm)		Weight	Rated Strength	DC Resistance
mm²	mm²	No. of wires	wire	conductor	kg/km	kN	ohm/km
25	24.25	7	2.1	6.3	162	31.56	3.546
35	34.36	7	2.5	7.5	229	44.72	2.499
50	49.48	7	3	9	330	64.4	1.736
70	65.81	19	2.1	10.5	441	85.65	1.313
95	93.27	19	2.5	12.5	626	121.39	0.925
120	116.99	19	2.8	14	785	152.26	0.737
150	147.11	37	2.25	15.7	990	191.46	0.587
185	181.62	37	2.5	17.5	1221	236.38	0.476
240	242.54	61	2.25	20.2	1635	299.05	0.357
300	299.43	61	2.5	22.5	2017	369.2	0.289
