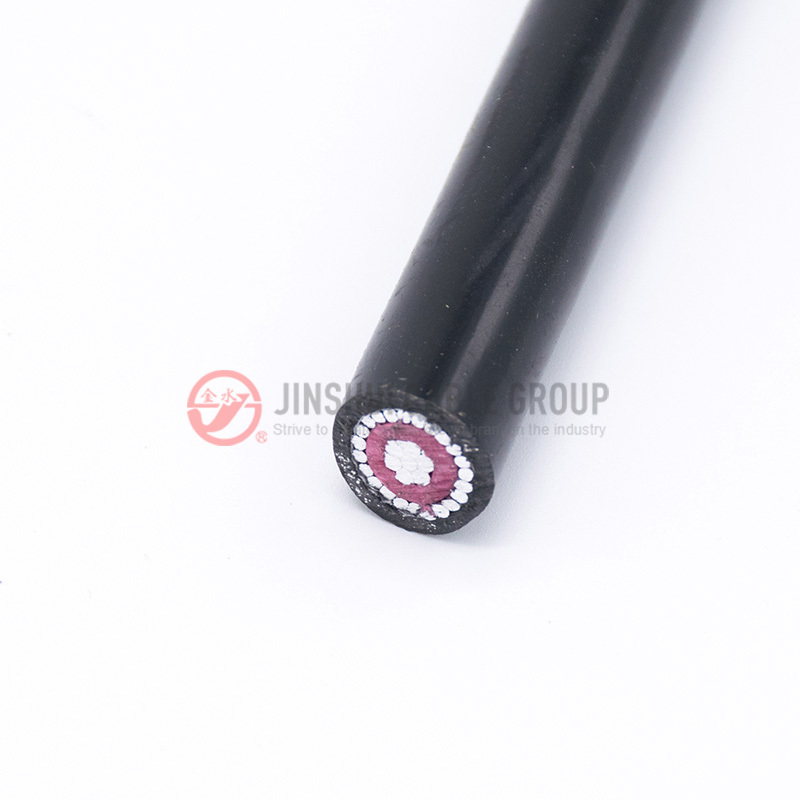

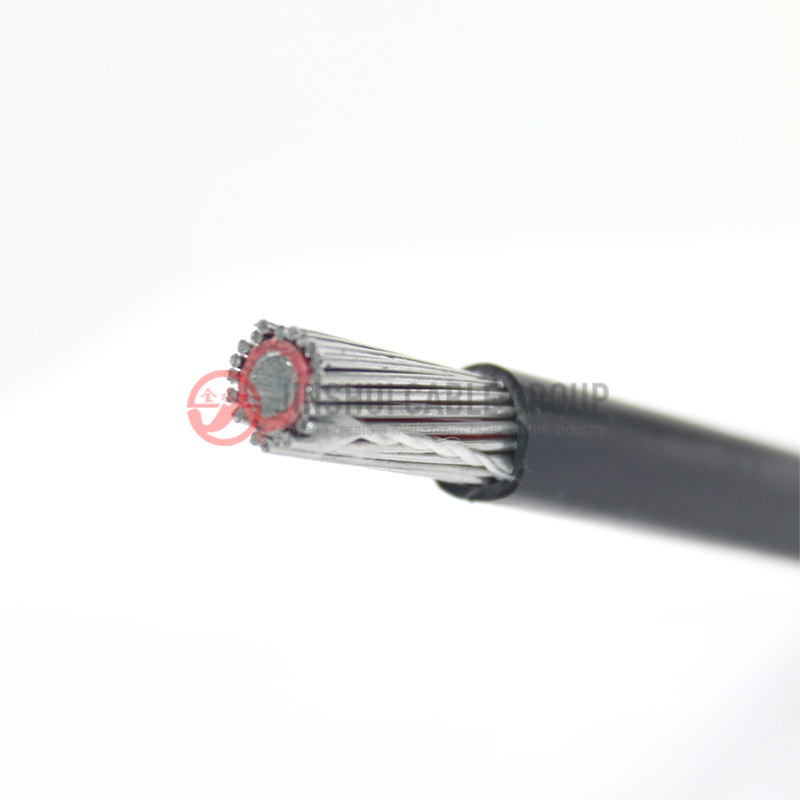

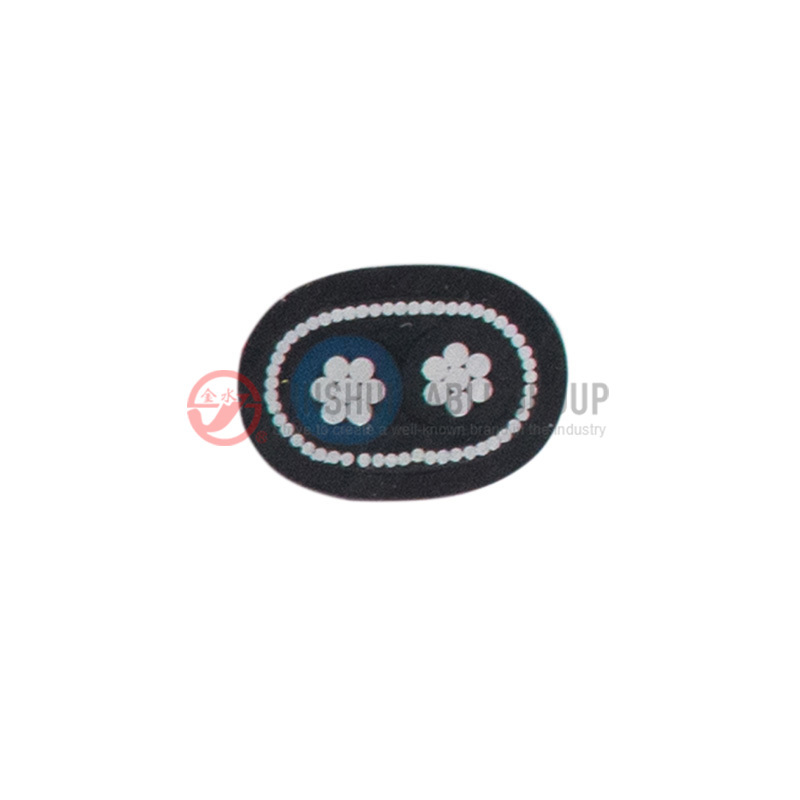

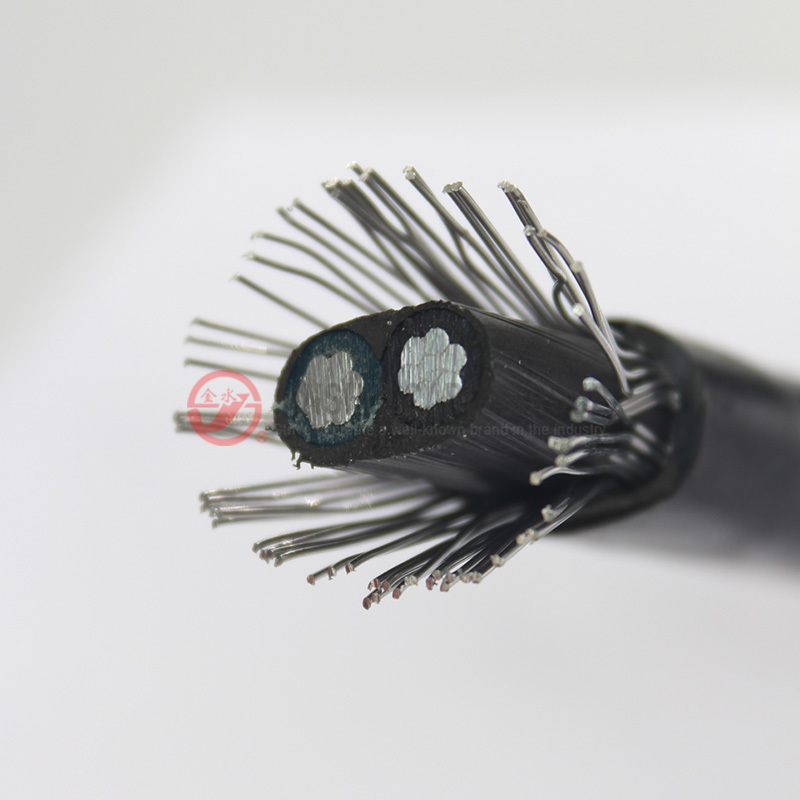

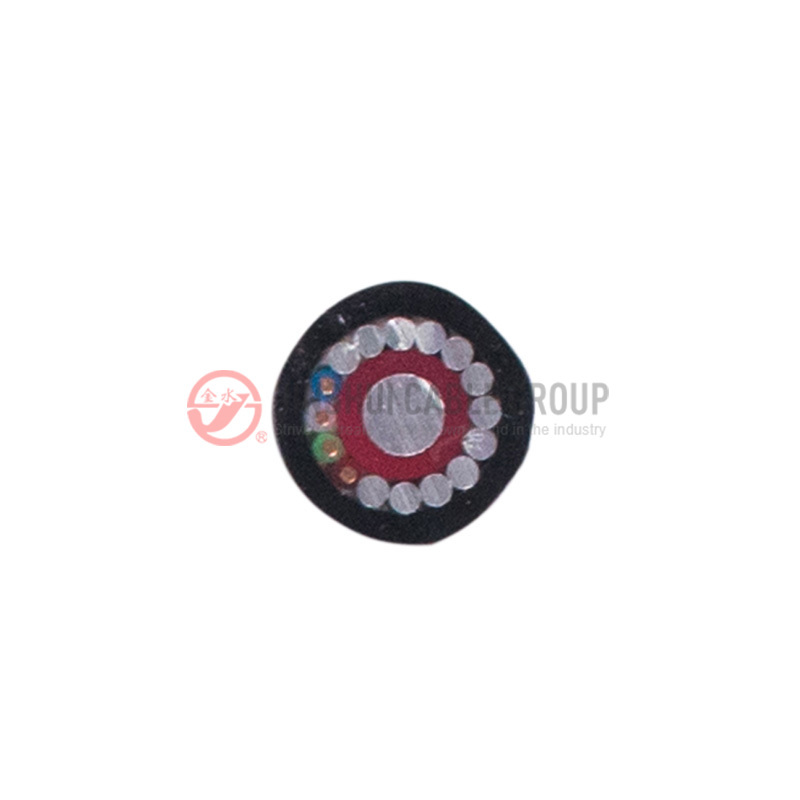

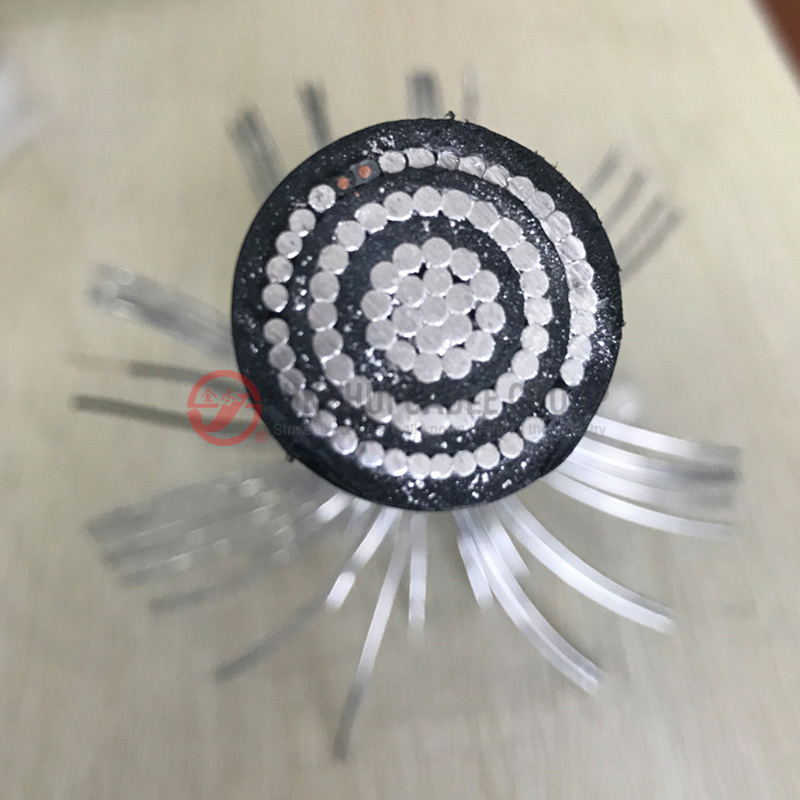

Aluminum Conductor Concentric Cable
You can send us an email：jscable@cnjscable.com
keywords：
Category：
OVERVIEW
Application：
Concentric cables are commonly used for power distribution network, ammeter panel, instrument or circuit panel, which can be laid directly underground or outdoors and even applicable in dry and wet conditions.
Standard:IEC 60502 UL854
SPECIFICATIONS
Rated Voltage:0.6/1kV
Maximal short-circuit temperature：+250 ℃
Minimum installation temperature： -20℃
Max. conductor temp.in service:XLPE-90 ℃ ,PVC-70 ℃
Outer sheath-- UV resistant
CONSTRUCTION

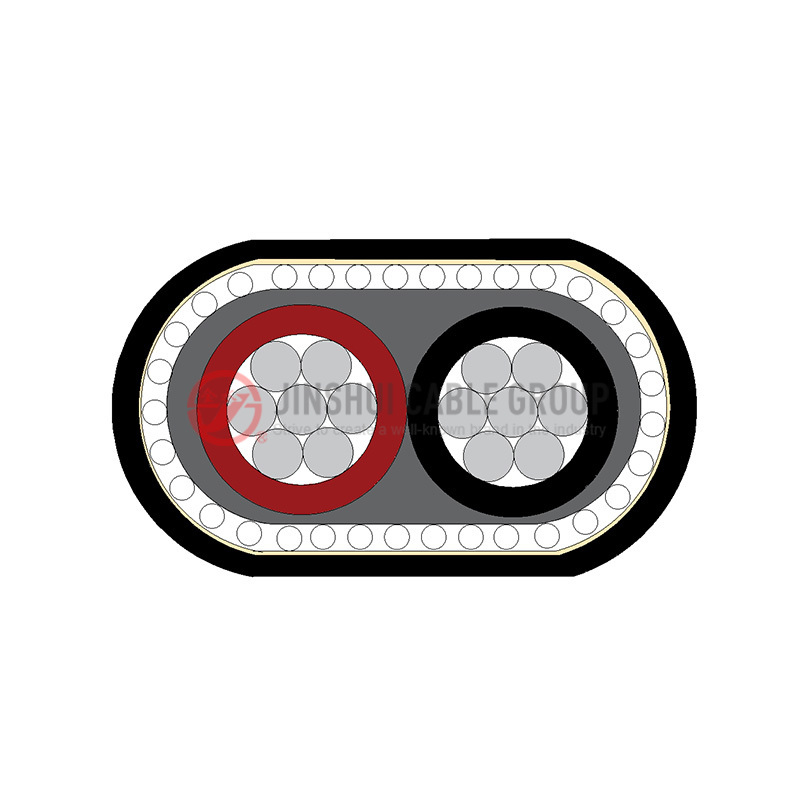

- Conductor: 8000 series aluminum alloy/Aluminium
- Insulation: XLPE /PVC insulation
- Concentric layer: Copper wires
- Cable wrapping tape: Non-absorbent material
- Cable sheath: PVC (XLPE/PE) sheath
PARAMETER
- ASTM Standard
- IEC Standard
| Core and nominal cross section | Conductor | Insulation thickness | Concentric conductor | Thickness of cable shield | Cable weight/km | Max DC resistance of conductor (20℃) | ||||
| Wire gauge | Number | Diameter mm | mm | Number | Diameter mm | mm | mm | kg/km | Ω/km Aluminium Alloy/Aluminium | Ω/km (Concentric) Aluminium Alloy/Aluminium |
| Aluminum alloy conductor/Aluminium (US standard). | ||||||||||
| 2X #12 | 7 | 0.78 | 1.14 | 39 | 0.321 | 1.14 | 7.74 | 67 | 8.88 | 8.90 |
| 2X #10 | 7 | 0.98 | 1.14 | 25 | 0.511 | 1.14 | 8.72 | 85 | 5.59 | 5.60 |
| 2X #8 | 7 | 1.23 | 1.14 | 25 | 0.643 | 1.14 | 9.74 | 110 | 3.52 | 3.60 |
| 2X #6 | 7 | 1.55 | 1.14 | 25 | 0.813 | 1.14 | 11.04 | 148 | 2.21/2.17 | 2.30/2.17 |
| 2X #4 | 7 | 1.96 | 1.14 | 26 | 1.020 | 1.14 | 12.68 | 206 | 1.39/1.36 | 1.40/1.36 |
| 3X #8 | 7 | 1.23 | 1.14 | 65 | 0.405 | 1.14 | 11.3X17.3 | 262 | 3.52 | 3.60 |
| 3X #6 | 7 | 1.55 | 1.14 | 65 | 0.511 | 1.52 | 13.2X20.2 | 370 | 2.21/2.17 | 2.30/2.17 |
| 3X #4 | 7 | 1.96 | 1.14 | 65 | 0.643 | 1.52 | 14.7X22.9 | 488 | 1.39/1.36 | 1.40/1.36 |
| 3X #2 | 7 | 2.47 | 1.14 | 65 | 0.823 | 1.52 | 16.6X26.3 | 640 | 0.88/0.8568 | 0.89/0.8568 |
