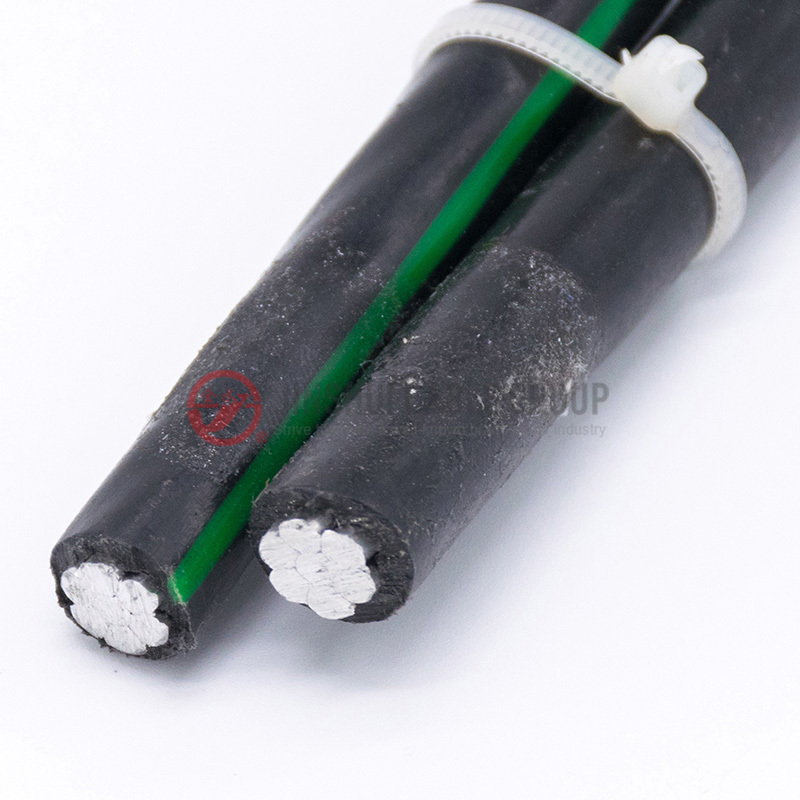

BS Aerial Bundled Conductors
This cable is used in overhead distribution lines of rated voltages 0.6/1KV and below.
You can send us an email：jscable@cnjscable.com
keywords：
Category：
OVERVIEW
Application
This cable is used in overhead distribution lines of rated voltages 0.6/1KV and below.
Standard
BS 7870-5: Polymeric insulated aerial bundled conductors (ABC) of rated voltage 0.6/1 kV for overhead distribution
SPECIFICATIONS
Rated voltage 0.6/1KV & below
Extruded weather-resistant insulation
Max. conductor working temperature 90℃
CONSTRUCTION
3 Core

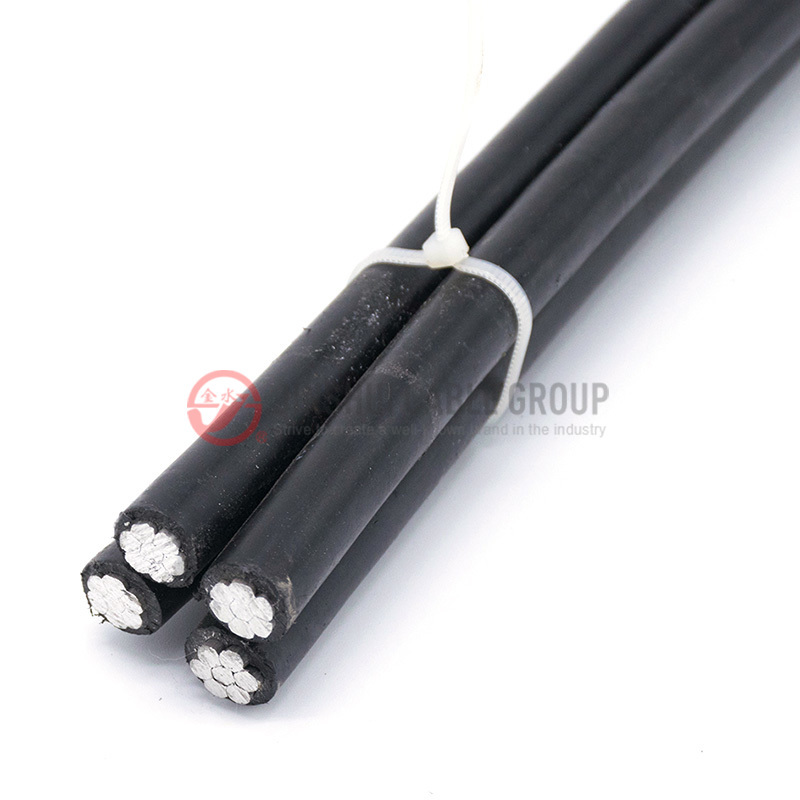

4 Core
1. 1350 aluminum phase core
2. XLPE Insulation
PARAMETER
| Size | Conductor Wire No. | Insulation Thickness | Diameter over Insulation | Approx. weight | Min. Breaking Load of Conductor | Max. Conductor DC Resistance @ 20℃ |
| mm² | / | mm | mm | kg/km | kN | Ω/km |
| 2x16 | 7 | 1.2 | 7.5 | 132 | 2.5 | 1.91 |
| 2x25 | 7 | 1.3 | 8.8 | 192 | 4.1 | 1.20 |
| 2x35 | 7 | 1.3 | 9.8 | 252 | 5.6 | 0.868 |
| 2x50 | 7 | 1.5 | 11.4 | 346 | 7.6 | 0.641 |
| 2x70 | 19 | 1.5 | 13.0 | 466 | 11.0 | 0.443 |
| 2x95 | 19 | 1.7 | 15.0 | 646 | 15.3 | 0.320 |
| 2x120 | 19 | 1.7 | 16.4 | 784 | 19.4 | 0.253 |
| 3x16 | 7 | 1.2 | 7.5 | 198 | 2.5 | 1.91 |
| 3x25 | 7 | 1.3 | 8.8 | 288 | 4.1 | 1.20 |
| 3x35 | 7 | 1.3 | 9.8 | 378 | 5.6 | 0.868 |
| 3x50 | 7 | 1.5 | 11.4 | 519 | 7.6 | 0.641 |
| 3x70 | 19 | 1.5 | 13.0 | 699 | 11.0 | 0.443 |
| 3x95 | 19 | 1.7 | 15.0 | 969 | 15.3 | 0.320 |
| 3x120 | 19 | 1.7 | 16.4 | 1176 | 19.4 | 0.253 |
| 4x16 | 7 | 1.2 | 7.5 | 264 | 2.5 | 1.91 |
| 4x25 | 7 | 1.3 | 8.8 | 384 | 4.1 | 1.20 |
| 4x35 | 7 | 1.3 | 9.8 | 504 | 5.6 | 0.868 |
| 4x50 | 7 | 1.5 | 11.4 | 692 | 7.6 | 0.641 |
| 4x70 | 19 | 1.5 | 13.0 | 932 | 11.0 | 0.443 |
| 4x95 | 19 | 1.7 | 15.0 | 1292 | 15.3 | 0.320 |
| 4x120 | 19 | 1.7 | 16.4 | 1568 | 19.4 | 0.253 |
