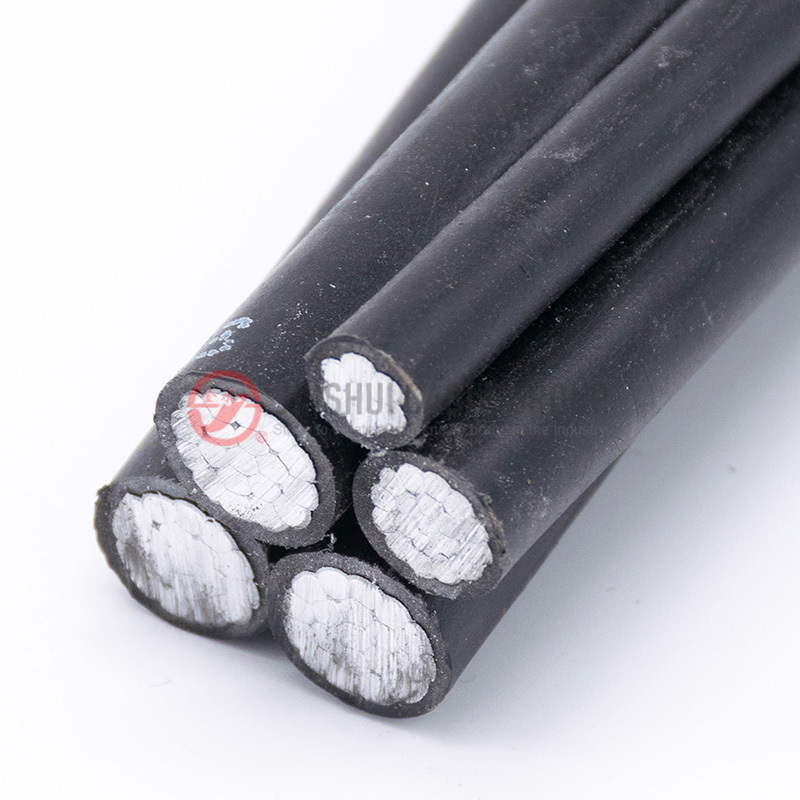

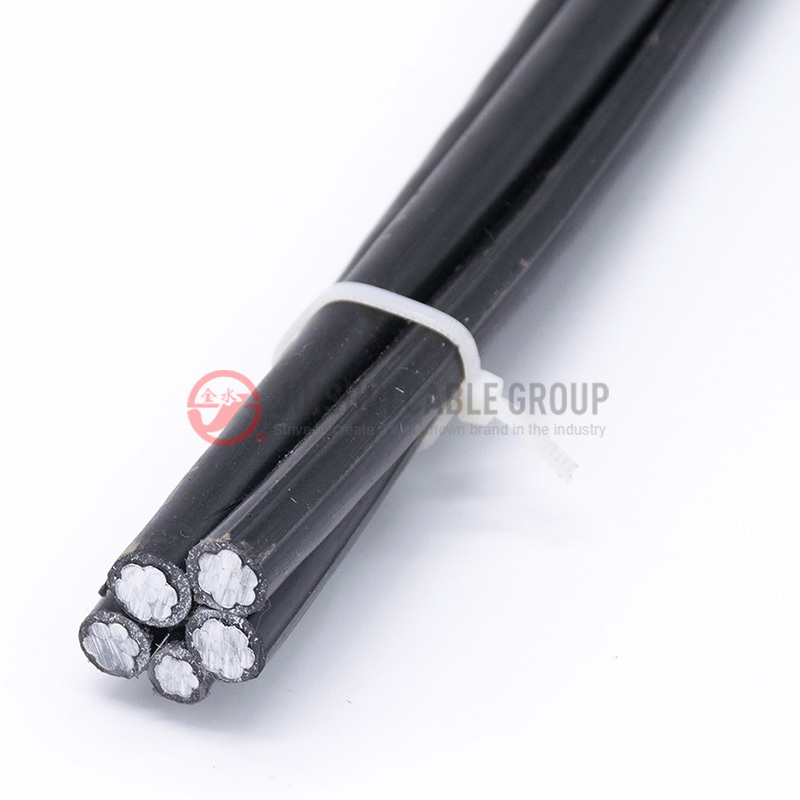

CAAI Cable
You can send us an email：jscable@cnjscable.com
keywords：
Category：
OVERVIEW
Application
The CAAI Cable is made of 1350 aluminum or 6201 aluminum alloy with XLPE insulation. It is used for power transmission or distribution lines with voltages 0.6/1kV and below in overhead facilities connected to power poles or exterior walls.
Standard
NTP 370.254: Self-supporting aerial distribution cables insulated with XLPE for voltages up to and including 0.6/1 kV.
SPECIFICATIONS
Rated voltage 0.6/1KV & below
Extruded weather-resistant XLPE insulation
Max. conductor working temperature 90℃
CONSTRUCTION
1. 1350 aluminum phase and lighting conductor
2. 6201 aluminum alloy neutral conductor
3. XLPE Insulation
PARAMETER
| Size | Phase Core | Neutral Core | Lighting Core | Approx. Weight | Max. Cond. DC Resist. @ 20℃ | Min. Breaking Load of Neutral | |||||
| Conductor Wire No. | Insulation Thickness | Conductor Wire No. | Insulation Thickness | Conductor Wire No. | Insulation Thickness | Phase Core | Neutral Core | Lighting Core | |||
| mm² | / | mm | / | mm | / | mm | Kg/km | Ω/km | Ω/km | Ω/km | kN |
| 1x16+NA25 | 7 | 1.14 | 7 | 1.14 | / | / | 159 | 1.91 | 1.3189 | / | 6.44 |
| 1x25+NA25 | 7 | 1.14 | 7 | 1.14 | / | / | 186 | 1.20 | 1.3189 | / | 6.44 |
| 1x16+1x16+NA25 | 7 | 1.14 | 7 | 1.14 | 7 | 1.14 | 224 | 1.91 | 1.3189 | 1.91 | 6.44 |
| 2x16+NA25 | 7 | 1.14 | 7 | 1.14 | / | / | 224 | 1.91 | 1.3189 | / | 6.44 |
| 2x16+1x16+NA25 | 7 | 1.14 | 7 | 1.14 | 7 | 1.14 | 289 | 1.91 | 1.3189 | 1.91 | 6.44 |
| 2x25+1x16+NA25 | 7 | 1.14 | 7 | 1.14 | 7 | 1.14 | 343 | 1.20 | 1.3189 | 1.91 | 6.44 |
| 2x35+1x16+NA25 | 7 | 1.14 | 7 | 1.14 | 7 | 1.14 | 401 | 0.868 | 1.3189 | 1.91 | 6.44 |
| 2x25+NA25 | 7 | 1.14 | 7 | 1.14 | / | / | 278 | 1.20 | 1.3189 | / | 6.44 |
| 3x16+1x16+NA25 | 7 | 1.14 | 7 | 1.14 | 7 | 1.14 | 354 | 1.91 | 1.3189 | 1.91 | 6.44 |
| 3x25+1x16+NA25 | 7 | 1.14 | 7 | 1.14 | 7 | 1.14 | 435 | 1.20 | 1.3189 | 1.91 | 6.44 |
| 3x35+1x16+NA25 | 7 | 1.14 | 7 | 1.14 | 7 | 1.14 | 522 | 0.868 | 1.3189 | 1.91 | 6.44 |
| 3x50+1x16+NA35 | 7 | 1.52 | 7 | 1.14 | 7 | 1.14 | 712 | 0.641 | 0.9421 | 1.91 | 9.13 |
| 3x70+1x16+NA50 | 19 | 1.52 | 7 | 1.14 | 7 | 1.52 | 952 | 0.443 | 0.6516 | 1.91 | 13.14 |
| 3x95+1x16+NA70 | 19 | 1.52 | 7 | 1.14 | 19 | 1.52 | 1253 | 0.320 | 0.4840 | 1.91 | 17.47 |
| 3x120+1x16+NA70 | 19 | 2.03 | 7 | 1.14 | 19 | 1.52 | 1535 | 0.253 | 0.4840 | 1.91 | 17.47 |
