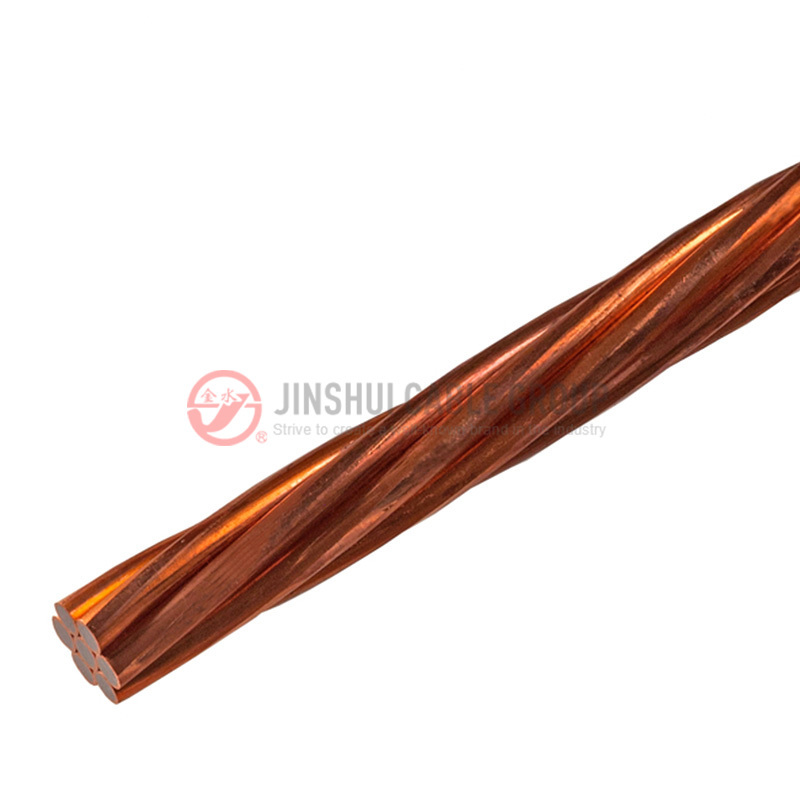

Copper Clad Steel Conductor (CCS)
You can send us an email：jscable@cnjscable.com
keywords：
Category：
OVERVIEW

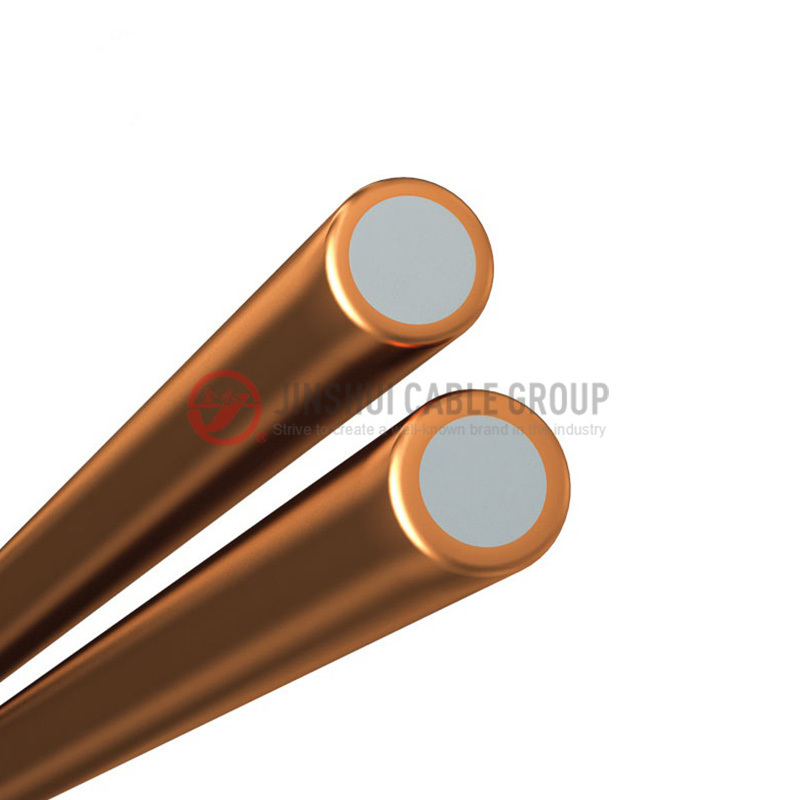

Copper Clad Steel (CCS) is a composite conductor with a steel core coated in copper. It combines the strength of steel with the conductivity of copper, making it cost-effective.
Application:
Copper-clad steel wire consists of stranded copper-clad monofilament and finds extensive applications in grounding and lightning protection, electrostatic grounding protection, protective grounding, and as the grounding wire for electrical and petrochemical systems. It is utilized in various areas such as high-frequency coaxial cables, electrified railways, metro systems, railways, airports, and network communication. These wires and cables are offered with varying copper thickness, providing options for 30% and 40% electrical productivity.
Standard:ASTM B228

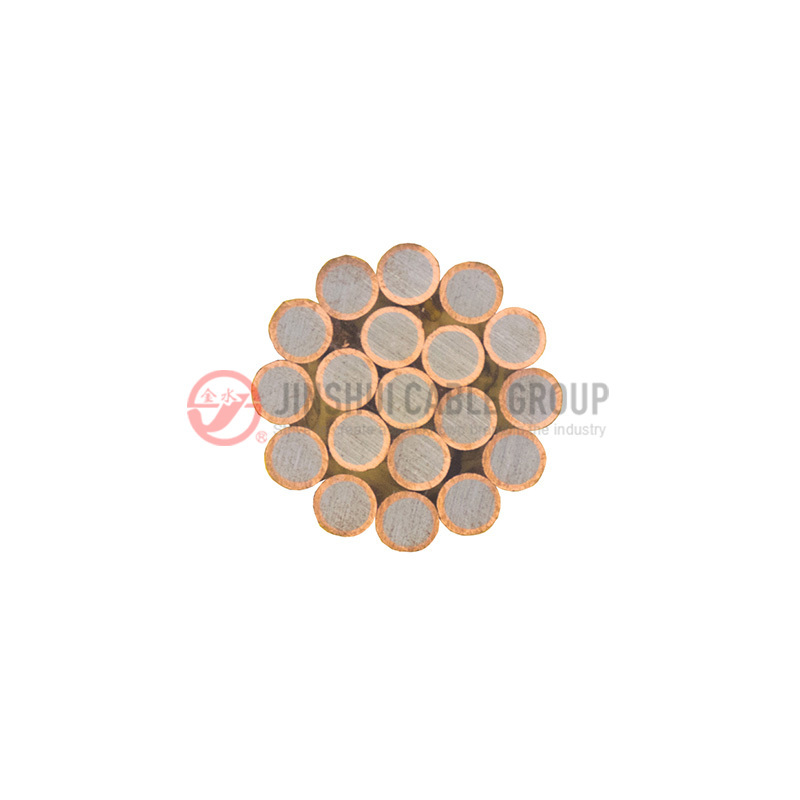

CONSTRUCTION
PARAMETER
| Item | Cross-Section Area | Strands | Diameter | Weight | Minimum Breaking Strength | Max.DC Resistance at 20℃, | ||||||
| Wire | Overall | Grade 30 | Grade 40 | Grade 30 LC | Grade 40 LC | Grade 30 HS | Grade 40HS | Grade 30 | Grade 40 | |||
| mm² | Mm | mm | Kg/km | kgf | Ω/km | |||||||
| 19 No.5 | 318.7 | 19 | 4.62 | 23.11 | 2634 | 2660.8 | 7823 | 8800 | 8800 | 9778 | 0.1442 | 0.1923 |
| 19 No.6 | 252.7 | 19 | 4.11 | 20.57 | 2087.8 | 2110.2 | 6205 | 6980 | 6980 | 7756 | 0.1818 | 0.2424 |
| 19 No.7 | 200.45 | 19 | 3.66 | 18.31 | 1656.3 | 1674.1 | 4923 | 5538 | 5538 | 6154 | 0.2294 | 0.3058 |
| 19 No. 8 | 158.96 | 19 | 3.26 | 16.31 | 1313.6 | 1327.4 | 3904 | 4392 | 4392 | 4880 | 0.289 | 0.3852 |
| 19 No. 9 | 126.06 | 19 | 2.91 | 14.53 | 1041.7 | 1052.5 | 3094 | 3481 | 3481 | 3868 | 0.3645 | 0.4862 |
| 7 No. 4 | 148.06 | 7 | 5.19 | 15.57 | 1218.6 | 1231.4 | 3636 | 4090 | 4090 | 4544 | 0.3093 | 0.4124 |
| 7 No. 5 | 117.41 | 7 | 4.62 | 13.87 | 966.4 | 976.5 | 2882 | 3242 | 3242 | 3603 | 0.3898 | 0.5197 |
| 7 No. 6 | 93.09 | 7 | 4.11 | 12.34 | 766.2 | 774.2 | 2286 | 2572 | 2572 | 2857 | 0.4915 | 0.6552 |
| 7 No.7 | 73.87 | 7 | 3.67 | 11 | 608 | 614.4 | 1814 | 2040 | 2040 | 2267 | 0.6201 | 0.8268 |
| 7 No. 8 | 58.56 | 7 | 3.26 | 9.78 | 482 | 487 | 1438 | 1618 | 1618 | 1798 | 0.7812 | 1.0414 |
| 7 No. 9 | 46.43 | 7 | 2.9 | 8.71 | 382.1 | 386.1 | 1140 | 1282 | 1282 | 1425 | 0.9859 | 1.3144 |
| 7 No. 10 | 36.82 | 7 | 2.59 | 7.77 | 303.1 | 306.2 | 904 | 1017 | 1017 | 1131 | 1.2422 | 1.6559 |
| 3 No. 5 | 50.32 | 3 | 4.62 | 9.96 | 413.4 | 417.7 | 1304 | 1467 | 1467 | 1630 | 0.9082 | 1.2104 |
| 3 No. 6 | 39.9 | 3 | 4.11 | 8.86 | 327.8 | 331.2 | 1034 | 1163 | 1163 | 1293 | 1.1447 | 1.526 |
| 3 No. 7 | 31.64 | 3 | 3.66 | 7.9 | 259.9 | 262.6 | 820 | 923 | 923 | 1026 | 1.444 | 1.925 |
| 3 N0. 8 | 25.09 | 3 | 3.26 | 7.04 | 206.1 | 208.3 | 651 | 732 | 732 | 813 | 1.8193 | 2.4253 |
| 3 No. 9 | 19.9 | 3 | 2.91 | 6.27 | 163.5 | 165.1 | 516 | 580 | 580 | 645 | 2.2957 | 3.0605 |
| 3 No. 10 | 15.78 | 3 | 2.59 | 5.59 | 129.6 | 130.9 | 409 | 460 | 460 | 511 | 2.8929 | 3.8552 |
| 3 No. 12 | 9.92 | 3 | 2.05 | 4.42 | 81.5 | 82.4 | 260 | 292 | 292 | 325 | 4.5573 | 6.0731 |
