Copper Conductor Concentric Cable Copper Conductor Concentric Cable Copper Conductor Concentric Cable Copper Conductor Concentric Cable Copper Conductor Concentric Cable

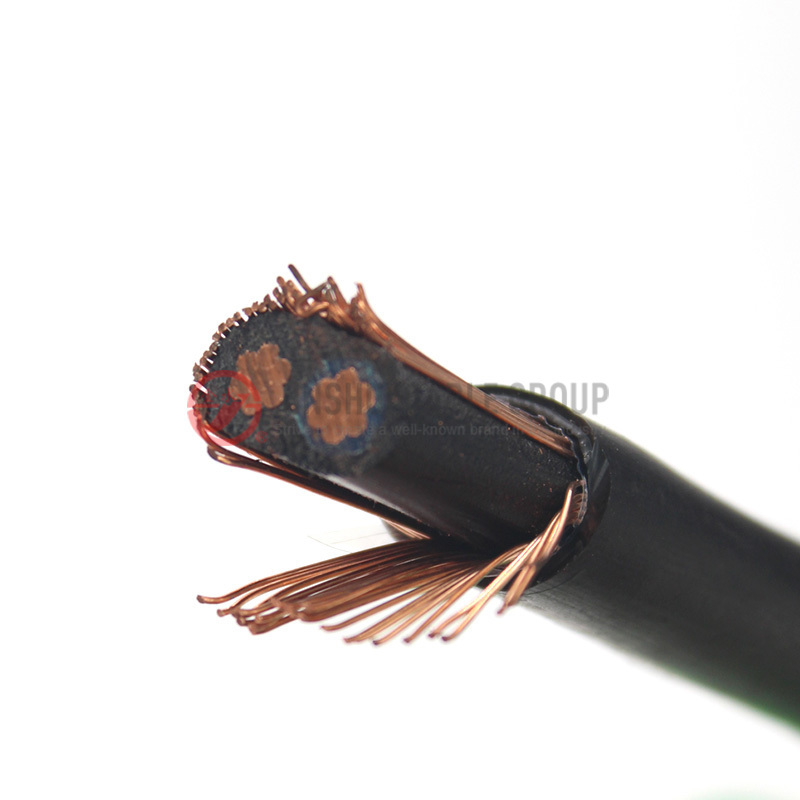

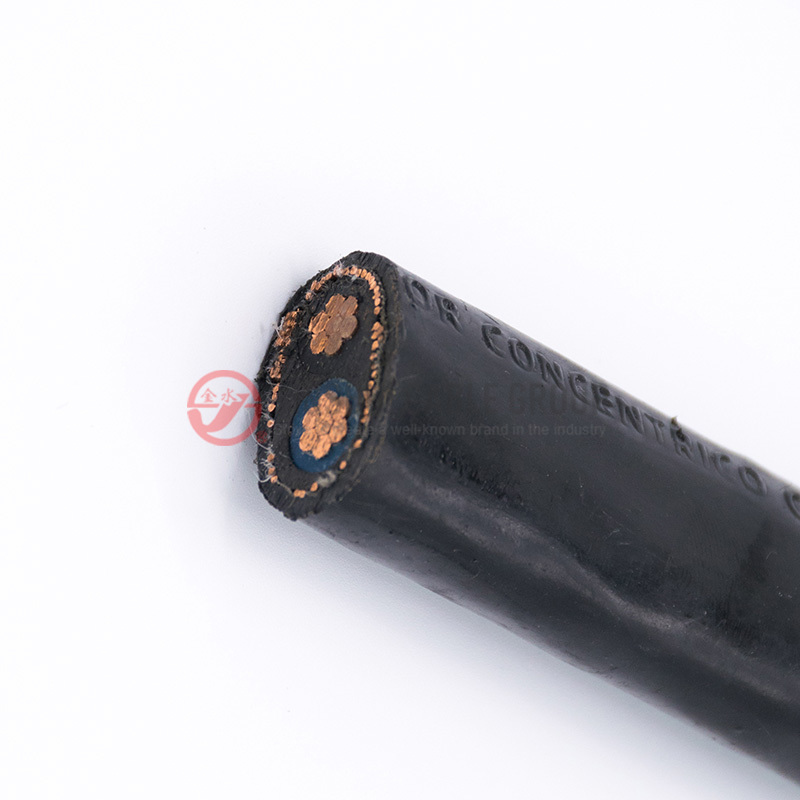

Copper Conductor Concentric Cable

Concentric cables are commonly used for power distribution network, ammeter panel, instrument or circuit panel, which can be laid directly underground or outdoors and even applicable in dry and wet conditions.
Qualification

You can send us an email：jscable@cnjscable.com

keywords：

Copper Conductor Concentric Cable

Category：

Conce

Inquiry Inquiry
Contact
Facebook Linkedin Twitter Tumblr Pinterest
ADD TO WISHLIST

Overview

Specifications

Construction

Parameter

Related

OVERVIEW

Application：Concentric cables are commonly used for power distribution network, ammeter panel, instrument or circuit panel, which can be laid directly underground or outdoors and even applicable in dry and wet conditions.

Standard：

IEC60502-1, BS7870, ASTMD2655,ASTMB556, ASTMB193, ASTMB8, UL44, UL1581, UL854

SPECIFICATIONS

Rated Voltage:0.6/1kV

Maximal short-circuit temperature：+250 ℃

Minimum installation temperature： -20℃

Max. conductor temp.in service:XLPE-90 ℃ ,PVC-70 ℃

Outer sheath-- UV resistant

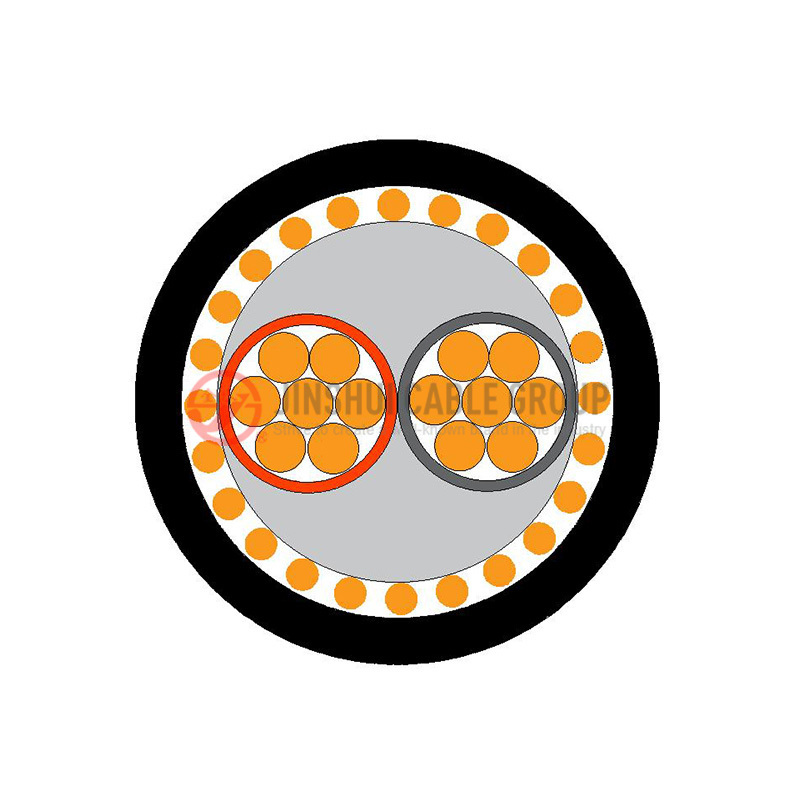

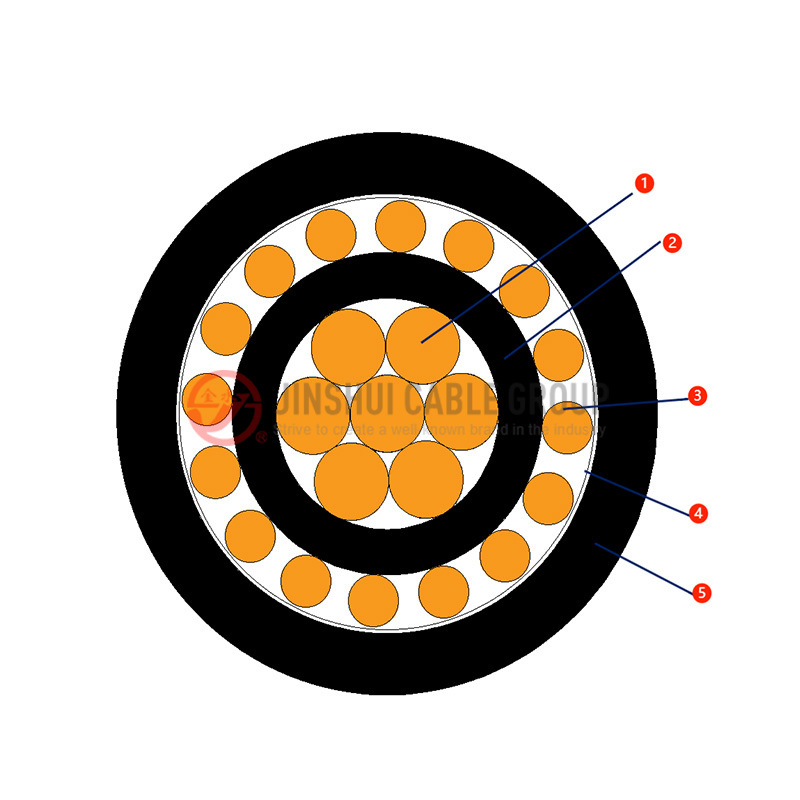

CONSTRUCTION

Conductor: Class 2 copper conductor

Insulation: XLPE /PVC insulation

Concentric layer: Copper wires

Cable wrapping tape: Non-absorbent material

Cable sheath: PVC (XLPE/PE) sheath

PARAMETER

  • Single conductor type concentric cable
  • Tow conductor type concentric cable
  • Two conductor type(flat) concentric cable
  • Copper conductor (IEC standard)
Single conductor type concentric cable (Coverage＜100%)
Nominal cross-section Strands number of conductor Insulation nominal thickness Concentric   conductor Overall  jacket nominal thickness Approx. overall diameter Approx. weight. DC resistance at 20℃
Min. single wire dia. Max. wire number
mm² AWG Nos mm mm Nos mm mm kg/km Ω/KM
2.08 14 7 1.14 0.51 68 1.14 7.8 73 8.78
2.63 13 7 1.14 0.51 68 1.14 8.06 84 6.97
3.31 12 7 1.14 0.51 68 1.14 8.26 98 5.53
4.17 11 7 1.14 0.51 68 1.14 8.54 116 4.39
5.26 10 7 1.14 0.51 68 1.14 8.86 138 3.476
8.37 8 7 1.14 0.51 68 1.14 9.55 197 2.186
Tow conductor type concentric cable (Coverage＜100%)
Nominal cross-section Strands number of conductor Insulation nominal thickness Concentric conductor Jacket nominal thickness Approx. overall dia. Approx. weight. Max.DC resistance at 20℃
Min. single wire dia. Max. wire number
mm² AWG No.s mm mm No.s mm mm kg/km Ω/KM
5.26 10 7 1.14 0.51 96 1.14 15.3x10.1 262 3.476
8.37 8 7 1.52 0.51 96 1.52 19.2x12.5 411 2.186
13.3 6 7 1.52 0.51 96 1.52 21.2x13.5 574 1.375
21.15 4 7 1.52 0.51 96 2.03 25.0x16.0 856 0.8649
26.67 3 7 1.52 0.51 96 2.03 26.6x17.0 1030 0.686
33.62 2 7 1.52 0.51 96 2.03 28.4x17.9 1247 0.544

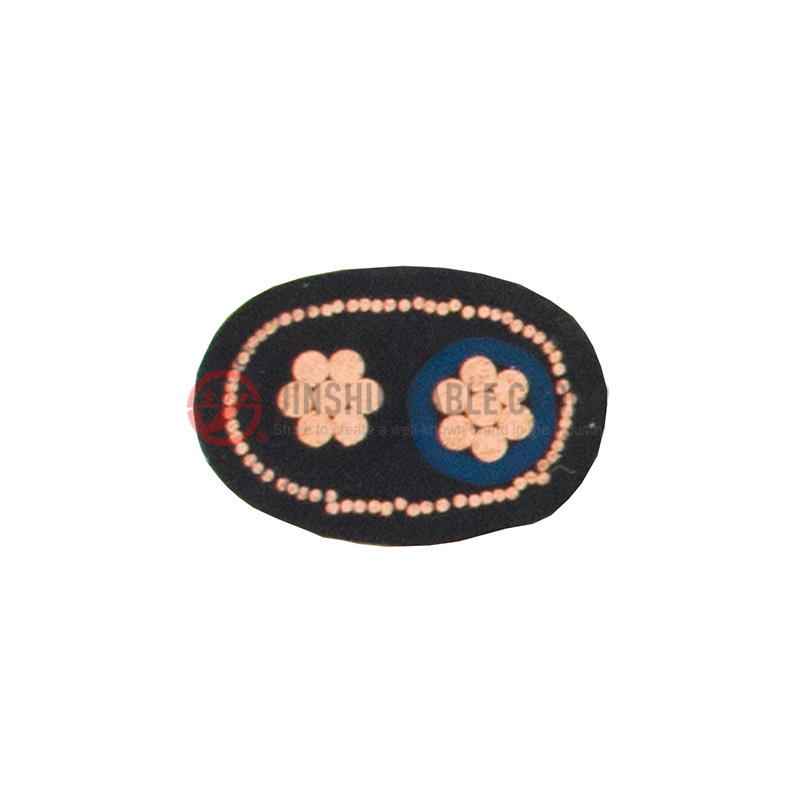

Two conductor type(flat) concentric cable (Coverage＜100%)
Nominal cross-section Strands number of  conductor Insulation nominal  thickness Concentric  conductor Jacket nominal thickness Approx. overall dia. Approx. weight. DC resistance at 20℃
Min.single wire dia. Max.wire number
mm² AWG No.s mm mm No.s mm mm kg/km Ω/KM
2.08 14 7 1.14 0.51 96 1.14 13.3x9.1 154 8.78
2.63 13 7 1.14 0.51 96 1.14 13.7x9.3 173 6.97
3.31 12 7 1.14 0.51 96 1.14 14.1x9.5 196 5.53
4.17 11 7 1.14 0.51 96 1.14 14.6x9.8 226 4.39
5.26 10 7 1.14 0.51 96 1.14 15.3x10.1 262 3.476
6.63 9 7 1.14 0.51 96 1.52 18.4x12.0 351 2.758
8.37 8 7 1.14 0.51 96 1.52 19.2x12.5  411 2.186
10.55 7 7 1.52 0.51 96 1.52 20.2x13.0  485 1.734
13.3 6 7 1.52 0.51 96 1.52 21.2x13.5  574 1.375
16.77 5 7 1.52 0.51 96 2.03 23.6x15.3  718 1.091
21.15 4 7 1.52 0.51 96 2.03 25.0x16.0  856 0.8649
26.67 3 7 1.52 0.51 96 2.03 26.6x17.0  1030 0.686
33.62 2 7 1.52 0.51 96 2.03 28.4x17.9  1247 0.544
42.41 1 19 2.03 0.51 96 2.03 32.9x20.3  1589 0.4313
53.49 1/0 19 2.03 0.51 96 2.03 35.1x21.6 1929 0.3419
67.43 2/0 19 2.03 0.51 96 2.03 37.8x23.1 2358 0.2712
85.01 3/0 19 2.03 0.51 96 2.03 40.7x24.7 2888 0.2151
107.2 4/0 19 2.03 0.51 96 2.03 44.0x26.5 3551 0.1705
Core and nominal cross section Conductor Insulation thickness Concentric conductor Thickness of cable shield . Weight of cable/km Max DC resistance of conductor (20℃)
mm² Number Diameter mm mm Number Diameter mm mm mm kg/km Ω/km () Ω/km (Concentric)
Copper conductor (IEC standard)
2X10 7 1.35 1.55 20 0.85 1.40 11.80 290 1.83 1.90
2X16 7 1.70 1.55 32 0.85 1.40 12.84 420 1.15 1.20
2X25 7 2.14 1.60 29 1.13 1.50 15.02 630 0.727 0.76
2X35 19 1.53 1.65 27 1.35 1.60 17.00 832 0.524 0.55
