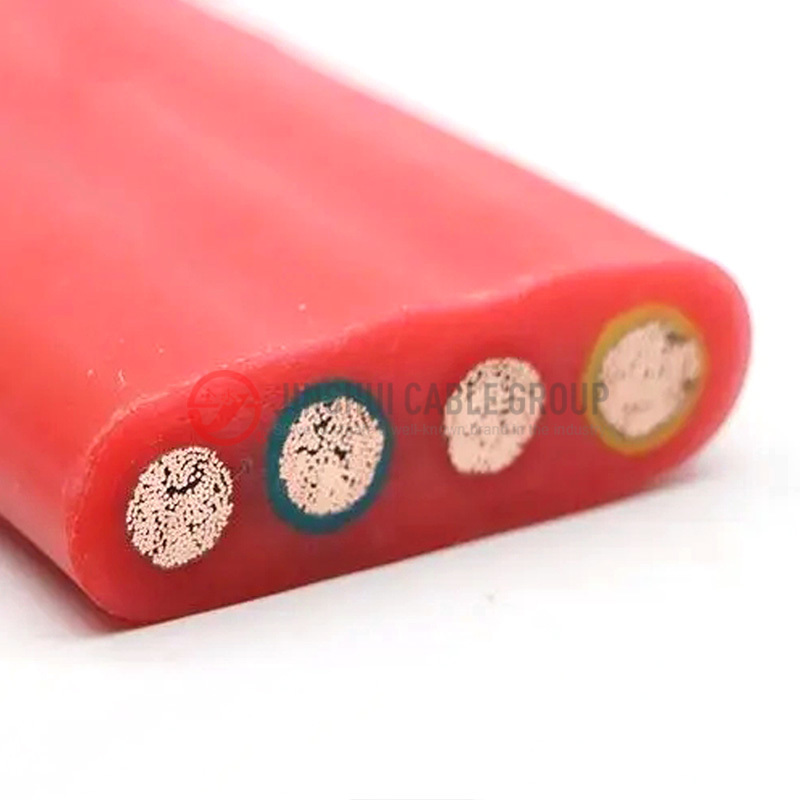

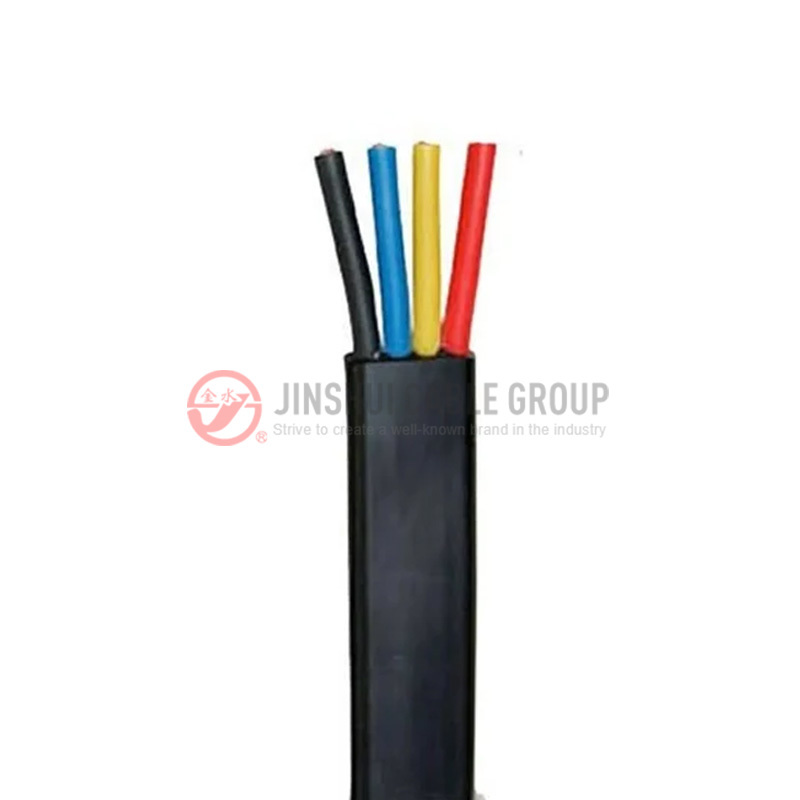

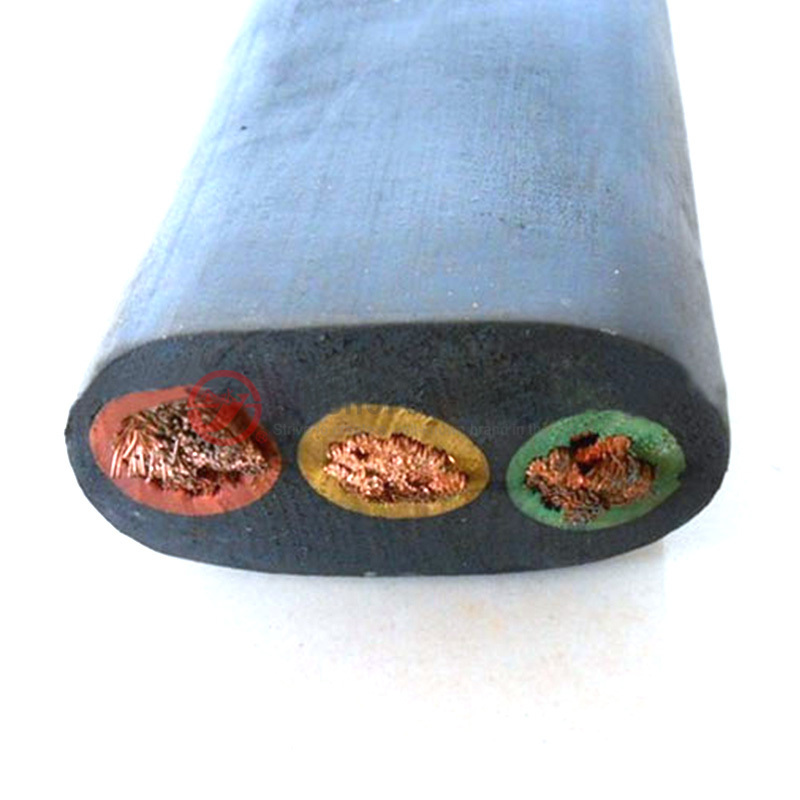

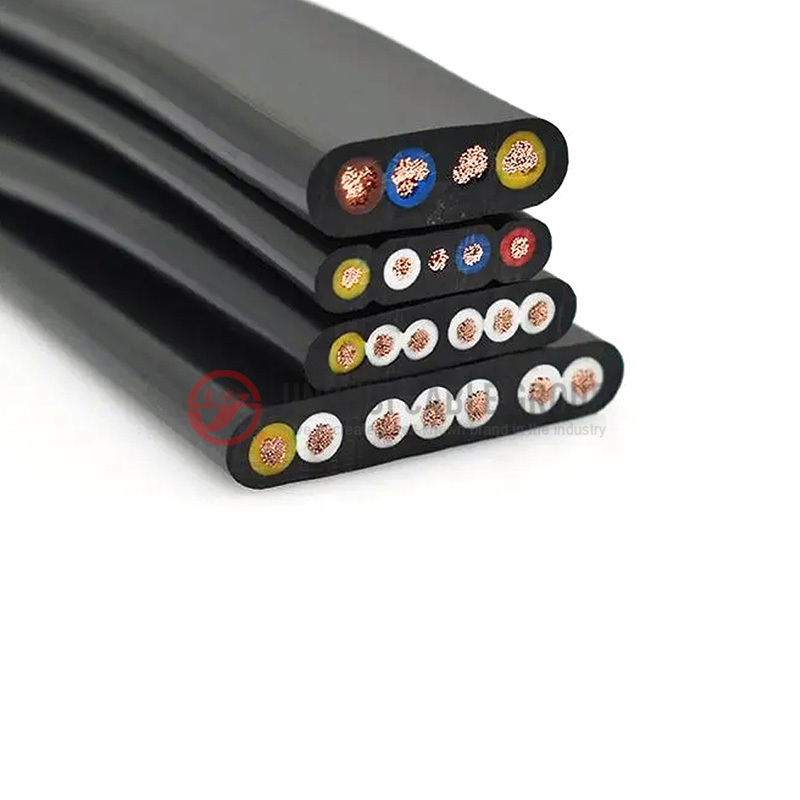

Flat flexible rubber cable
You can send us an email：jscable@cnjscable.com
keywords：
Category：
OVERVIEW
Application
These cables are designed to provide high flexibility and have the capacity to withstand weather, oil/grease, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial environments.
Standard
IEC245 BS6195, BS EN 50525-2-21 and BS EN 50525-3-21 as well as VDE and CENELEC
SPECIFICATIONS
Voltage Rating
Uo/U 450/750V
Conductor
Class 5 flexible copper
Temperature Rating
Fixed: -30°C to +60°C
Fixed protected installations: +85°C
Flexed: -15°C to +60°C Minimum
Bending Radius
Fixed: 4 x overall diameter
Flexed: 6 x overall diameter

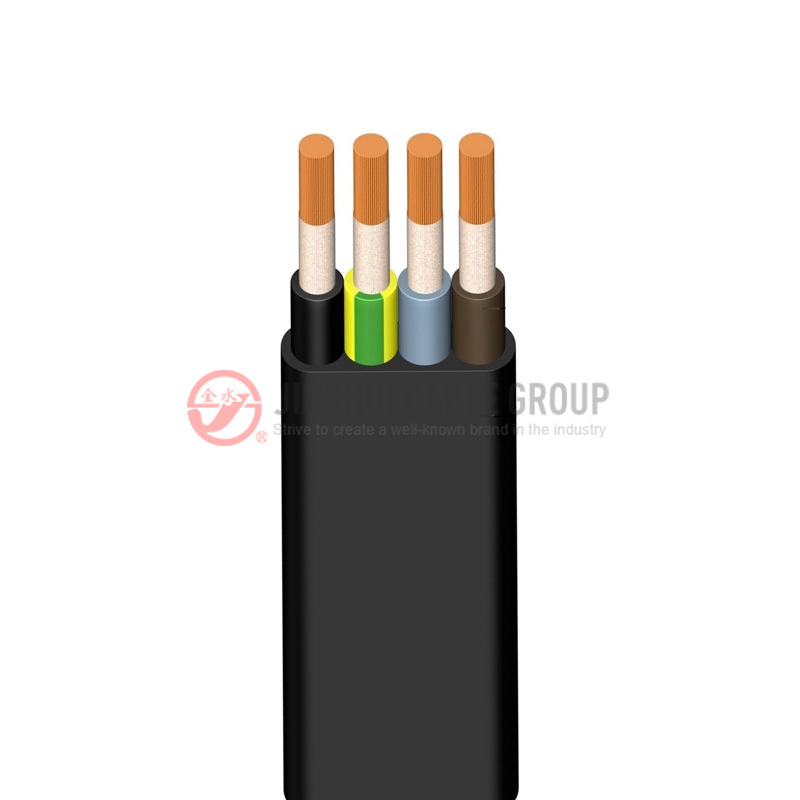

CONSTRUCTION
1. class 5 copper conductor
2. rubber insulation
3. rubber sheath
PARAMETER
- Flat
- Round
|
Number and nominal sectional area of conductors |
Thickness of insulation |
Thickness of sheath |
Maximum resistance of conductor at 20℃ class 5 |
|
4x1.5 |
0.8 |
1.2 |
12.1 |
|
4x2.5 |
0.9 |
1.2 |
7.41 |
|
4x4 |
1.0 |
1.3 |
4.61 |
|
4x6 |
1.0 |
1.3 |
3.08 |
|
4x10 |
1.2 |
1.5 |
1.83 |
|
4x16 |
1.2 |
1.5 |
1.15 |
|
4x25 |
1.4 |
1.8 |
0.727 |
|
4x35 |
1.4 |
1.8 |
0.524 |
