Flexible Electrical Wire
You can send us an email：jscable@cnjscable.com
keywords：
Category：
OVERVIEW

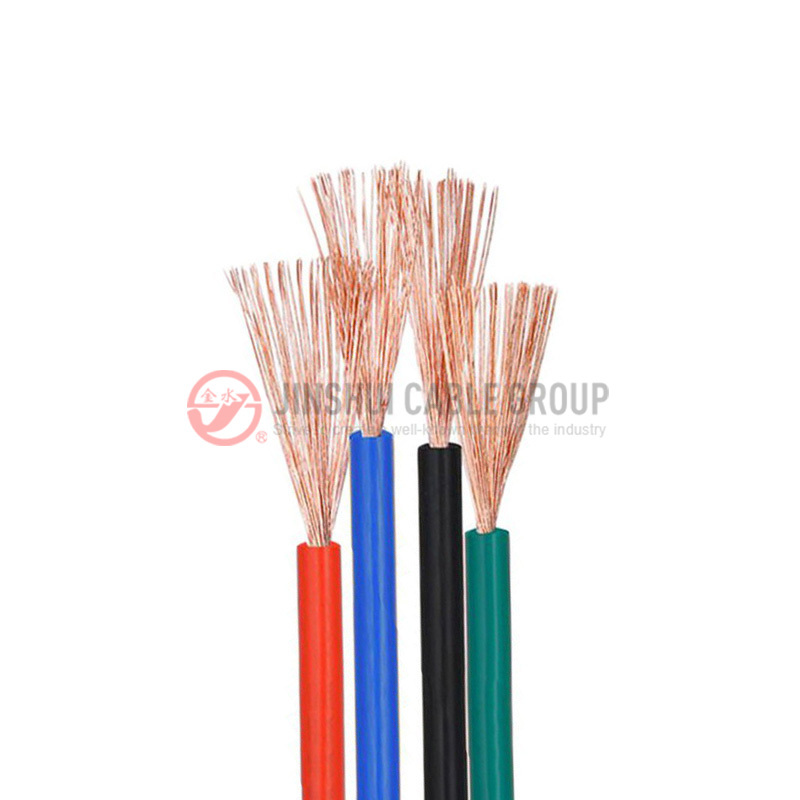

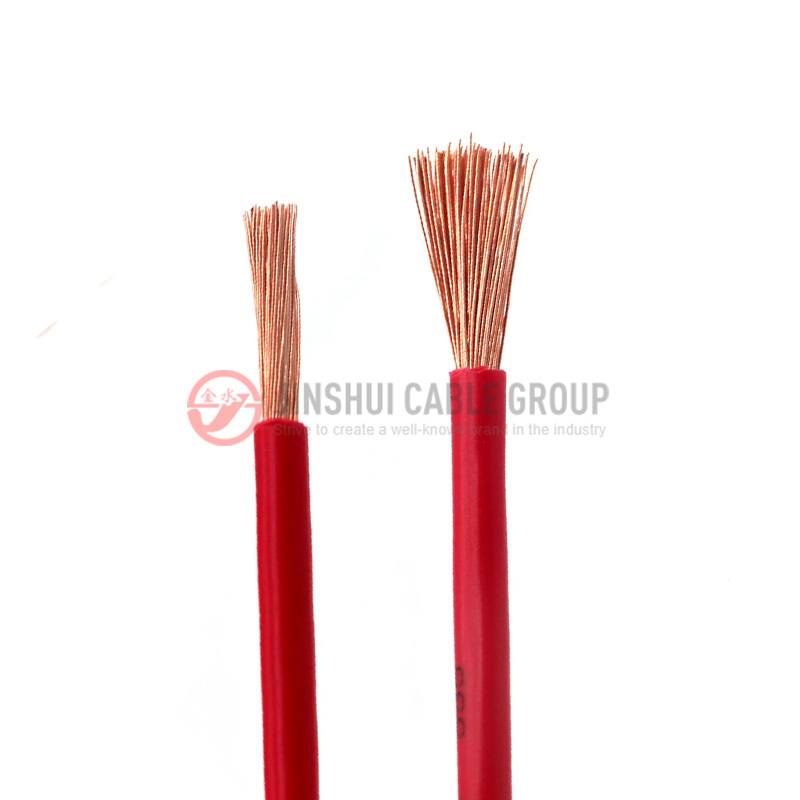

Single Core Flexible PVC Electrical Wire is suitable for use in power installations, fixed wiring or flexible connections for electrical appliances like lighting, electronic equipment, household electrical appliances, instrument and communication equipment with rated voltage up to 450/750V
Standard：
IEC 60227, BS 6004, DIN VDE 295 etc
SPECIFICATIONS
Voltage：Up to 450/750V
Conductor : Class 5 or Class 6 Copper wire
Insulation : PVC
Long term operating temperature for cable conductor is 70℃
Property of flame retardant, fire resistance,environment protection can be chose.
CONSTRUCTION
1. Conductor ( Class 5 or 6)
2. PVC insulation
PARAMETER
Single Core flexible PVC Electrical Copper Wire
| Nominal. Section |
Single wire number | Nominal. Insinuation thickness | Cable Approx. Overall dia. |
Max. D.C. resistance at 20℃ Ω/KM |
| mm2 | Nos. | mm | mm | CU |
| 0.5 | 16 | 0.6 | 2.14 | 39.0 |
| 0.75 | 24 | 0.6 | 2.34 | 26.0 |
| 1 | 32 | 0.6 | 2.54 | 19.5 |
| 1.5 | 30 | 0.7 | 3.00 | 13.3 |
| 2.5 | 50 | 0.8 | 3.70 | 7.98 |
| 4 | 56 | 0.8 | 4.21 | 4.95 |
| 6 | 84 | 0.8 | 5.57 | 3.30 |
| 10 | 84 | 1.0 | 7.30 | 1.91 |
| 16 | 126 | 1.0 | 8.00 | 1.21 |
| 25 | 196 | 1.2 | 10.10 | 0.780 |
| 35 | 276 | 1.2 | 11.87 | 0.554 |
| 50 | 396 | 1.4 | 13.93 | 0.386 |
| 70 | 360 | 1.4 | 16.12 | 0.272 |
| 95 | 475 | 1.6 | 19.24 | 0.206 |
| 120 | 608 | 1.6 | 19.95 | 0.161 |
| 150 | 756 | 1.8 | 23.34 | 0.129 |
| 185 | 925 | 2.0 | 25.54 | 0.106 |
| 240 | 1221 | 2.2 | 27.85 | 0.0801 |
| 300 | 1525 | 2.4 | 32.49 | 0.0641 |
| 400 | 2013 | 2.6 | 35.35 | 0.0486 |
