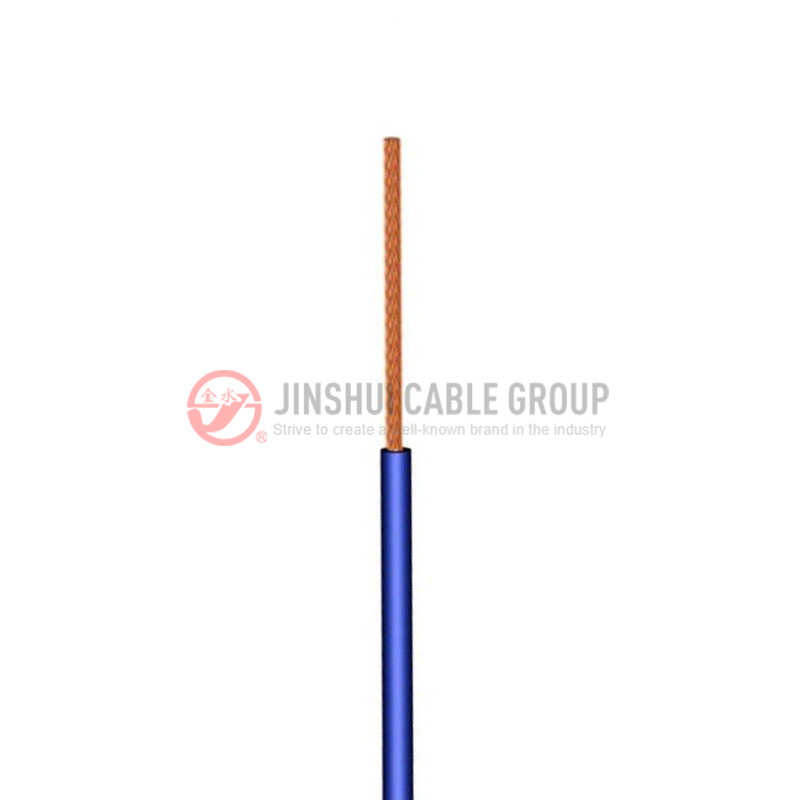

Halogen-free Low-smoke Electrical Wire
You can send us an email：jscable@cnjscable.com
keywords：
Category：
OVERVIEW
Application:
LSZH cables, also known as Low Smoke Zero Halogen cables, are a popular choice among consumers who prioritize safety and environmental sustainability. These cables are manufactured with high-quality materials that help ensure long-lasting and reliable connections for electronic and communication devices.
One of the primary benefits of LSZH cables is that they are designed to release minimal amounts of smoke and toxic gases in the event of a fire. This makes them an excellent choice for installations in public buildings, hospitals, schools, and other facilities where safety is a top priority. In many countries, LSZH cables are required by law for applications that involve large-scale switching or infrastructure.
Another key selling point of LSZH cables is their eco-friendly properties. Unlike traditional cables, which may contain harmful chemicals and heavy metals, LSZH cables are free of halogens, lead, and other materials that can damage the environment or pose a health risk. This makes them an excellent choice for businesses that want to reduce their carbon footprint while ensuring high-quality performance and durability.
Beyond their safety and environmental benefits, LSZH cables are also known for their exceptional performance characteristics. These cables are engineered with high-quality insulation and shielding materials that help protect against interference, transmission errors, and other issues that can degrade signal quality. This results in fast, reliable, and high-quality data transmissions that meet the needs of today's demanding digital applications.
When it comes to choosing LSZH cables for your business, there are a few key factors to consider. For instance, you'll need to determine the appropriate size and length of cable required for your specific application. You may also need to consider factors like data transfer rates, temperature ranges, and other environmental factors that can impact cable performance.
Fortunately, there are many reputable LSZH cable manufacturers located in China that can help you make the right choice for your needs. Whether you need cables for networking, telecommunications, security, or other applications, you can rest assured that LSZH cables offer a winning combination of safety, sustainability, and performance.
So if you're ready to upgrade your cabling system, be sure to consider the many benefits of LSZH cables. These innovative cables offer a superior level of safety, performance, and sustainability that can help your business thrive in today's competitive marketplace.
SPECIFICATIONS
Standards(LSZH Cables):
BS EN 50525-3-31
CONSTRUCTION
(LSZH Cables):
Conductor: Copper conductor according to BS EN 60228 class 1/2/5.
H07Z1-U: 1.5-10mm2 Class 1 solid copper conductor to BS EN 60228.
H07Z1-R: 1.5-630mm2 Class 2 stranded copper conductor to BS EN 60228.
H07Z1-K: 1.5-240mm2 Class 5 stranded copper conductor to BS EN 60228.
Insulation: Thermoplastic compound of type TI 7 to EN 50363-7.
Insulation Option: UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.
PARAMETER
Maximum temperature range during operation: 70°C
Maximum short circuit temperature (5 Seconds): 160°C
Minimum bending radius
OD<8mm : 4 × Overall Diameter
8mm≤OD≤12mm: 5 × Overall Diameter
OD>12mm: 6 × Overall Diameter
| Conductor | FTX100 07Z1-U/R/K | ||||
| No. of Cores × Cross-sectional Area | Conductor Class | Nominal Insulation Thickness | Min. Overall Diameter | Max. Overall Diameter | Approx. Weight |
| No.×mm² | mm | mm | mm | kg/km | |
| 1×1.5 | 1 | 0.7 | 2.6 | 3.2 | 22 |
| 1×2.5 | 1 | 0.8 | 3.2 | 3.9 | 35 |
| 1×4 | 1 | 0.8 | 3.6 | 4.4 | 52 |
| 1×6 | 1 | 0.8 | 4.1 | 5 | 73 |
| 1×10 | 1 | 1 | 5.3 | 6.4 | 122 |
| 1×1.5 | 2 | 0.7 | 2.7 | 3.3 | 24 |
| 1×2.5 | 2 | 0.8 | 3.3 | 4 | 37 |
| 1×4 | 2 | 0.8 | 3.8 | 4.6 | 54 |
| 1×6 | 2 | 0.8 | 4.3 | 5.2 | 76 |
| 1×10 | 2 | 1 | 5.6 | 6.7 | 127 |
| 1×16 | 2 | 1 | 6.4 | 7.8 | 191 |
| 1×25 | 2 | 1.2 | 8.1 | 9.7 | 301 |
| 1×35 | 2 | 1.2 | 9 | 10.9 | 405 |
| 1×50 | 2 | 1.4 | 10.6 | 12.8 | 550 |
| 1×70 | 2 | 1.4 | 12.1 | 14.6 | 774 |
| 1×95 | 2 | 1.6 | 14.1 | 17.1 | 1069 |
| 1×120 | 2 | 1.6 | 15.6 | 18.8 | 1333 |
| 1×150 | 2 | 1.8 | 17.3 | 20.9 | 1640 |
| 1×185 | 2 | 2 | 19.3 | 23.3 | 2055 |
| 1×240 | 2 | 2.2 | 22 | 26.6 | 2690 |
| 1×300 | 2 | 2.4 | 24.5 | 29.6 | 3364 |
| 1×400 | 2 | 2.6 | 27.5 | 33.2 | 4252 |
| 1×500 | 2 | 2.8 | 30.5 | 36.9 | 5343 |
| 1×630 | 2 | 2.8 | 34 | 41.1 | 6868 |
| 1×1.5 | 5 | 0.7 | 2.8 | 3.4 | 23 |
| 1×2.5 | 5 | 0.8 | 3.4 | 4.1 | 37 |
| 1×4 | 5 | 0.8 | 3.9 | 4.8 | 54 |
| 1×6 | 5 | 0.8 | 4.4 | 5.3 | 76 |
| 1×10 | 5 | 1 | 5.7 | 6.8 | 128 |
| 1×16 | 5 | 1 | 6.7 | 8.1 | 191 |
| 1×25 | 5 | 1.2 | 8.4 | 10.2 | 297 |
| 1×35 | 5 | 1.2 | 9.7 | 11.7 | 403 |
| 1×50 | 5 | 1.4 | 11.5 | 13.9 | 577 |
| 1×70 | 5 | 1.4 | 13.2 | 16 | 803 |
| 1×95 | 5 | 1.6 | 15.1 | 18.2 | 1066 |
| 1×120 | 5 | 1.6 | 16.7 | 20.2 | 1332 |
| 1×150 | 5 | 1.8 | 18.6 | 22.5 | 1660 |
| 1×185 | 5 | 2 | 20.6 | 24.9 | 2030 |
| 1×240 | 5 | 2.2 | 23.5 | 28.4 | 2659 |
