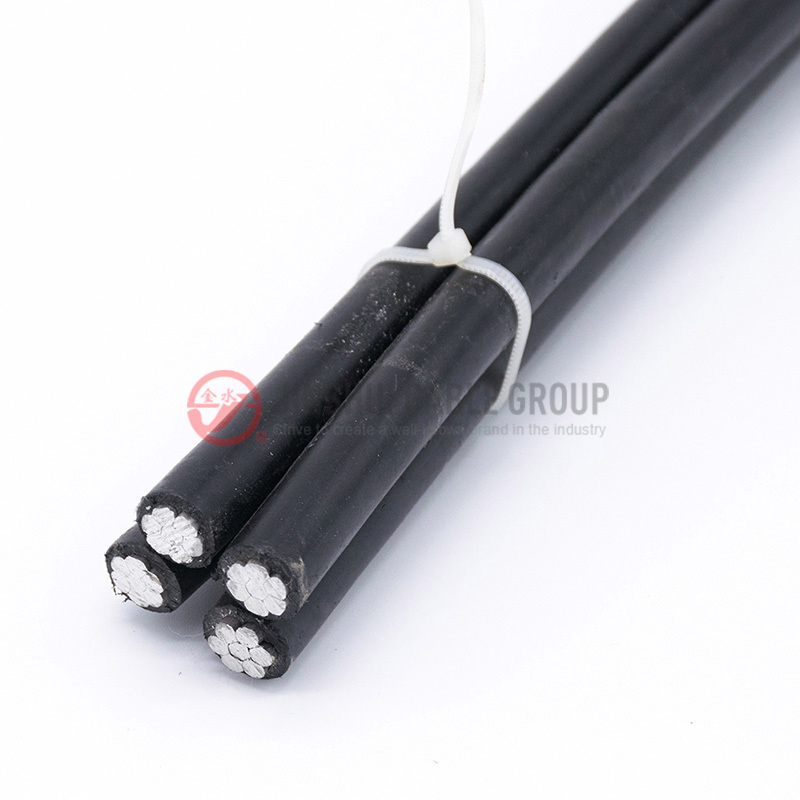

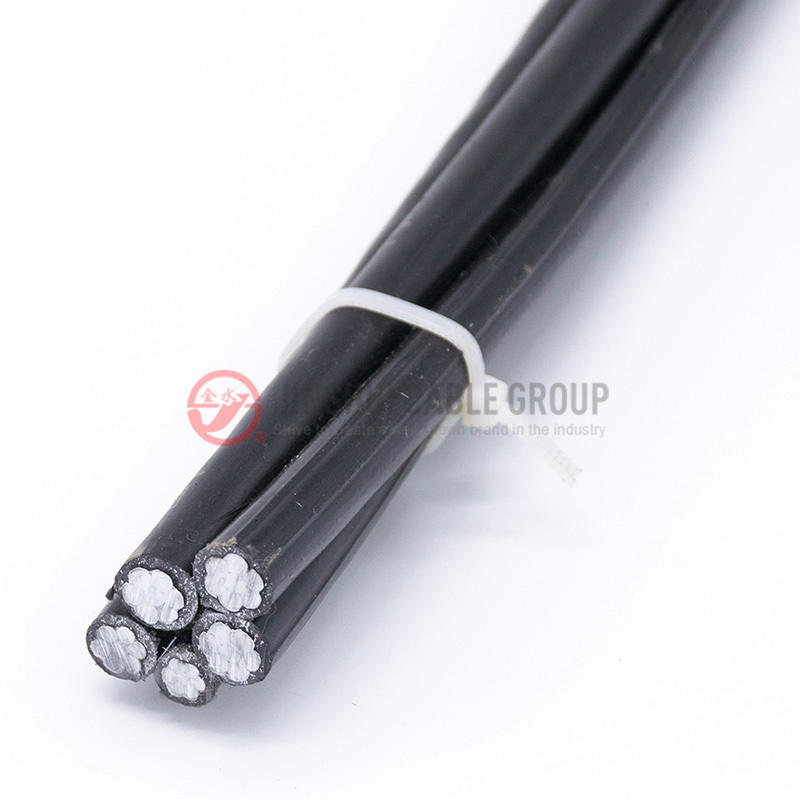

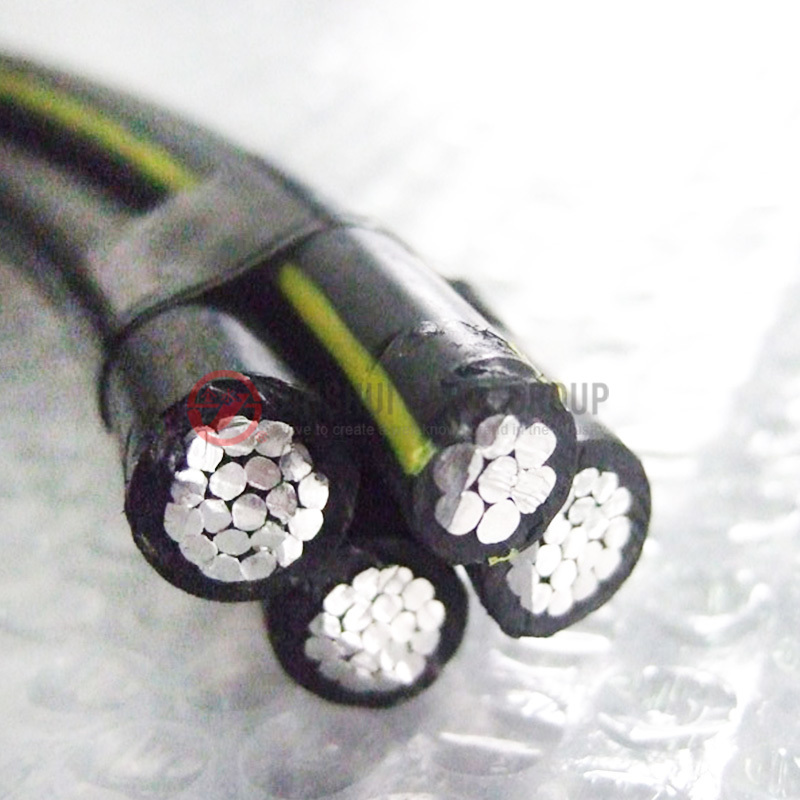

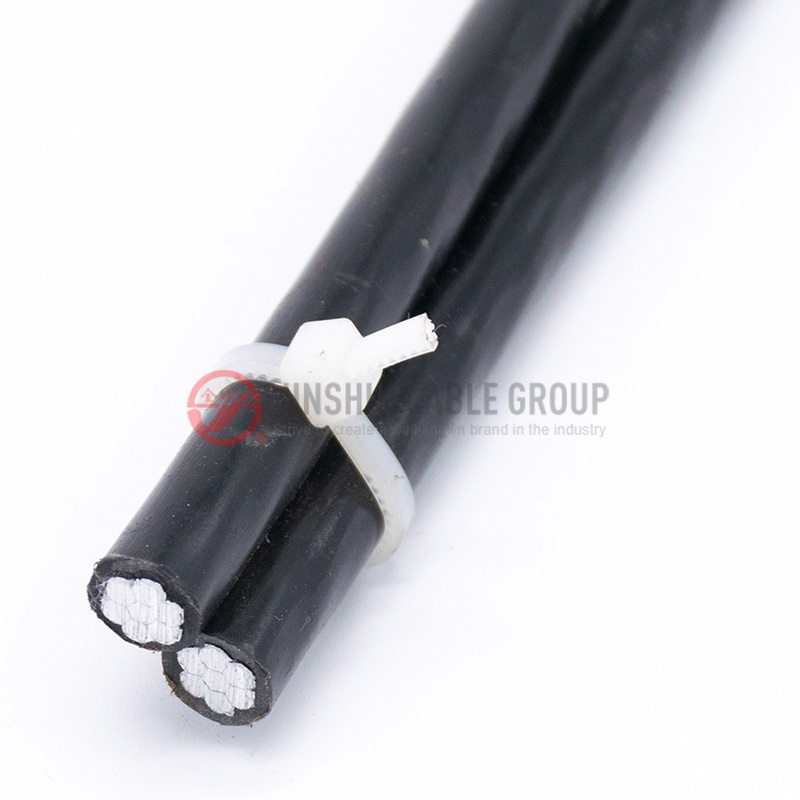

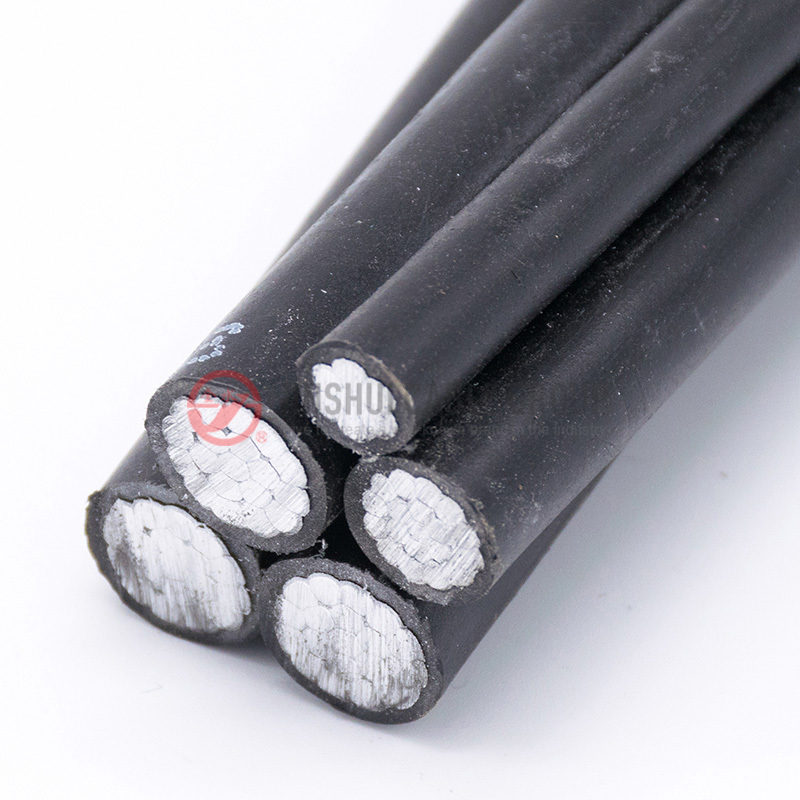

NFC Aerial Bundled Cable

This cable is used in overhead distribution lines of rated voltages 0.6/1KV and below.

You can send us an email：jscable@cnjscable.com

keywords：

Category：

Low Voltage Aerial Cable

Inquiry Inquiry

Contact

OVERVIEW

Application

This cable is used in overhead distribution lines of rated voltages 0.6/1KV and below.

Standard

NFC 33-209: Insulated or Protected Cables for Networks Energy - Insulated Cables Assembled in Harness for Overhead Networks, Voltage Rated 0.6/1 kV

SPECIFICATIONS

Rated voltage 0.6/1KV & below

Extruded weather-resistant insulation

Max. conductor working temperature 90℃

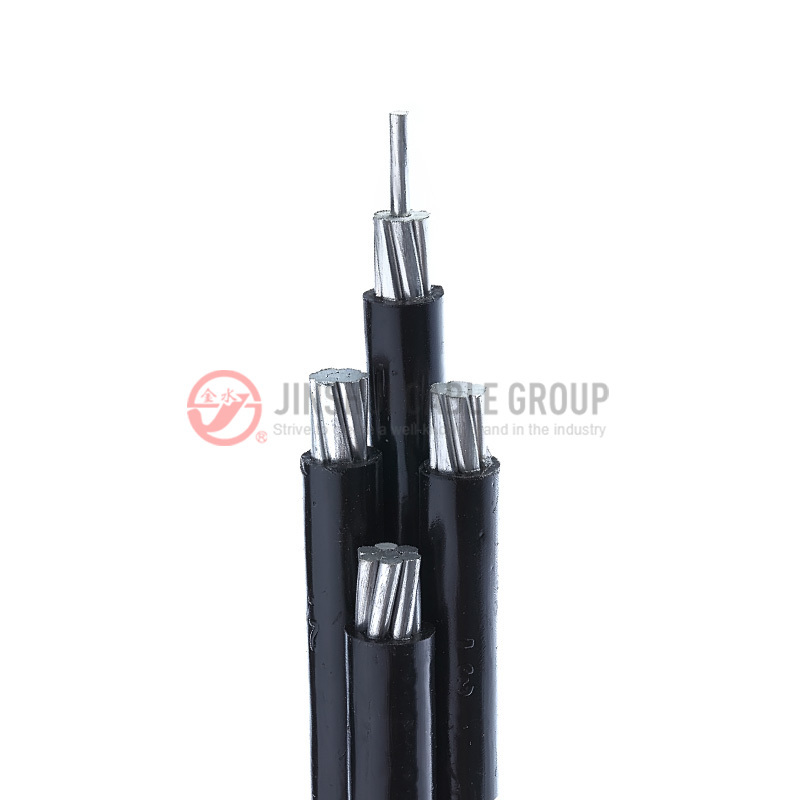

CONSTRUCTION

1. 1350 aluminum phase core and lighting conductor

2. AAAC neutral core conductor

3. XLPE Insulation

PARAMETER

Without Neutral Core
With Neutral Core

Size	Conductor Wire No.	Insulation Thickness	Diameter over Insulation	Approx. weight	Min. Breaking Load of Conductor	Max. Conductor DC Resistance @ 20℃
mm²	/	mm	mm	kg/km	kN	Ω/km
2x16	7	1.2	7.2	132	1.9	1.91
2x25	7	1.4	9.0	198	3.0	1.20
2x35	7	1.6	10.4	270	/	0.868
2x50	7	1.6	11.6	352	/	0.641
3x16	7	1.2	7.2	198	1.9	1.91
3x25	7	1.4	9.0	297	3.0	1.20
3x35	7	1.6	10.4	405	/	0.868
3x50	7	1.6	11.6	528	/	0.641
4x16	7	1.2	7.2	264	1.9	1.91
4x25	7	1.4	9.0	396	3.0	1.20
4x35	7	1.6	10.4	540	/	0.868
4x50	7	1.6	11.6	704	/	0.641

Note: lighting core number 0, 1, 2, or 3 available.

Video

Corporate Video

Industry Solutions

Power grid

New energy

Building

Industry

Marine cable

Telecommunication

Railway

Instrument

Get a free quote

Message(Enter product details such as dimensions, materials, etc. and other specific requirements to get an accurate quote.)

I want more details. Product Request: Customised: Delivery time: Payment: Shipped by boat: Usage:

(Maximum 5 files. Support jpg, jpeg, png, gif, txt, doc, pdf, xls, docx, xlsx, less than 5MB)

Contact and optional details

Send Inquiry Now

Related Products

Aluminum Conductor Steel Reinforced (ACSR)

Aluminum Alloy Conductor Steel Reinforced (AACSR)

Aluminum Conductor Alloy Reinforced (ACAR)

All Aluminium Condcutor (AAC)

All Aluminium Alloy Condcutor (AAAC)

Bare Copper Conductor

Jinshui Cable Group, founded in 1983 and formerly known as Zhengzhou 2nd Cable Plant, is larger cables and wire and electrical products R&D and production base, sales and export base, and CNC logistics distribution base in central China, as well as Top-10 of China in comprehensive cables and wire strength.

Contact

Tel：
+86-166 5026 7267

E-mail：
jscable@cnjscable.com

Address:
No.6, Songshan Avenue, Pingyuan New District, Xinxiang, Henan, China

Message

Size	Phase Core		Neutral Core		Lighting Core		Approx. Weight	Max. Cond. DC Resist. @ 20℃			Min. Breaking Load of Neutral
Size	Conductor Wire No.	Insulation Thickness	Conductor Wire No.	Insulation Thickness	Conductor Wire No.	Insulation Thickness	Approx. Weight	Phase Core	Neutral Core	Lighting Core	Min. Breaking Load of Neutral
mm²	/	mm	/	mm	/	mm	Kg/km	Ω/km	Ω/km	Ω/km	kN
3x25+54.6+1x16	7	1.4	7	1.6	7	1.2	576	1.20	0.63	1.91	16.6
3x35+54.6+1x16	7	1.6	7	1.6	7	1.2	686	0.868	0.63	1.91	16.6
3x50+54.6+1x16	7	1.6	7	1.6	7	1.2	812	0.641	0.63	1.91	16.6
3x70+54.6+1x16	19	1.8	7	1.6	7	1.2	1023	0.443	0.63	1.91	16.6
3x70+70+1x16	19	1.8	7	1.5	7	1.2	1060	0.443	0.50	1.91	20.5
3x95+70+1x16	19	1.8	7	1.5	7	1.2	1311	0.320	0.50	1.91	20.5
3x120+70+1x16	19	1.8	7	1.5	7	1.2	1525	0.253	0.50	1.91	20.5
3x120+95+1x16	19	1.8	19	1.6	7	1.2	1613	0.253	0.343	1.91	27.5
3x150+95+1x16	19	1.7	19	1.6	7	1.2	1860	0.206	0.343	1.91	27.5
