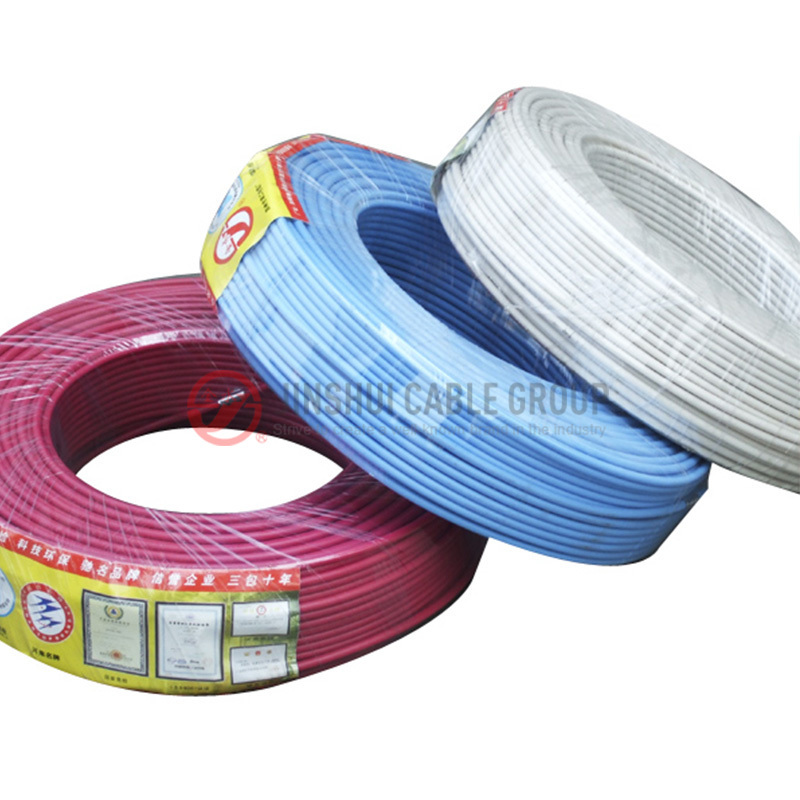

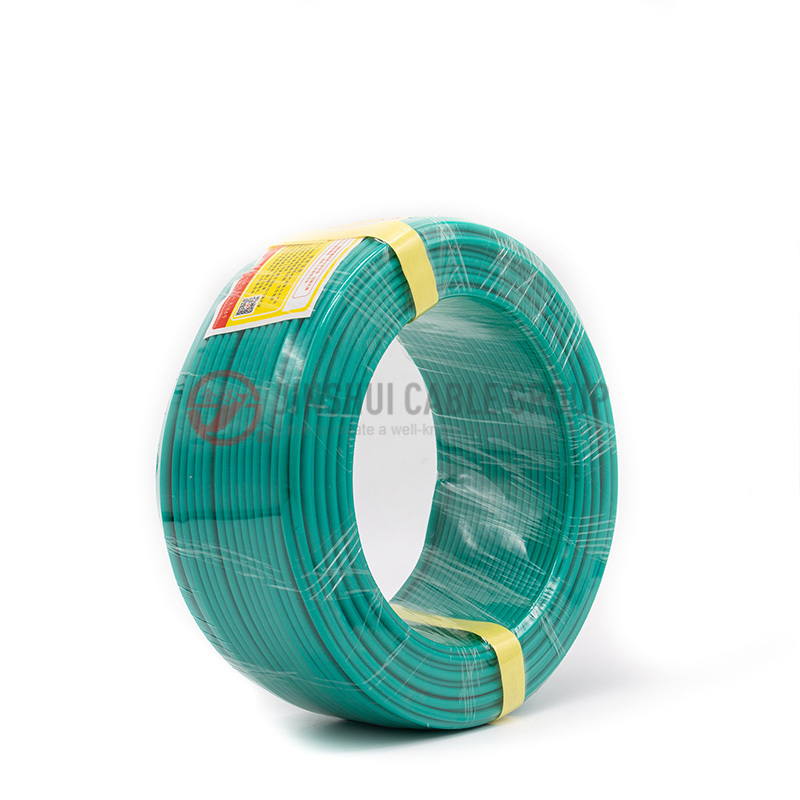

Rigid PVC Sheathed Eletrical Wire
You can send us an email：jscable@cnjscable.com
keywords：
Category：
OVERVIEW
H07V-U/BV (Cu/PVC)with PVC insulation. H07V-U cable is also known as building wire or electric wire. H07V-U cables have normal size of 1-10 mm².
Applicable Standard:
We supply these H07V-U cable following the IEC60227, BS EN 50525-2-31 with voltage 450/750v. For Australia and New Zealand standard AS/NZS 5000.1
SPECIFICATIONS
CONSTRUCTION

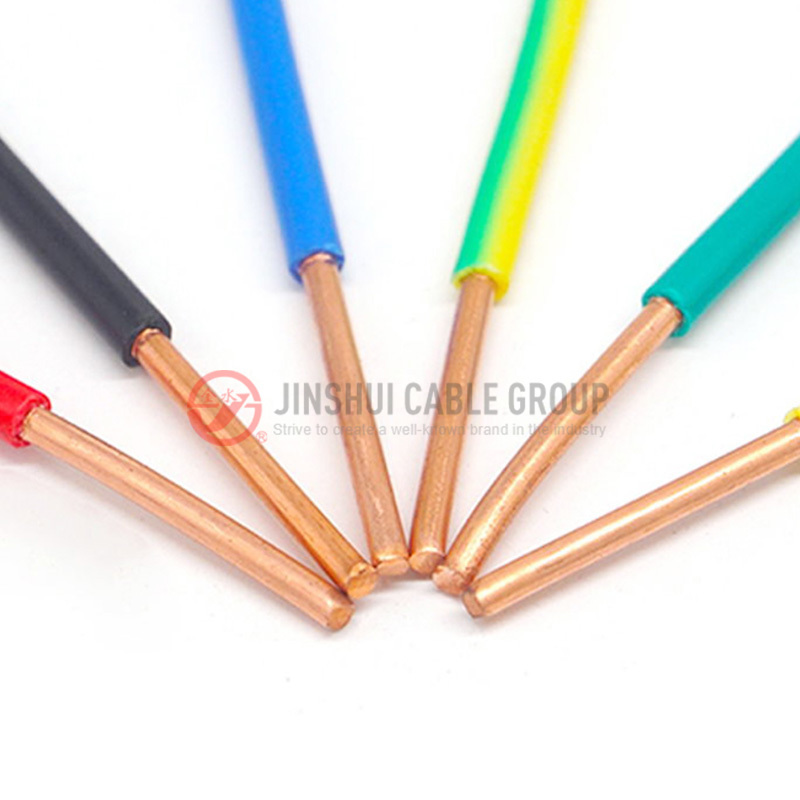

Cable Structure
· Copper conductor bare, solid acc. to DIN VDE 0295 Class 1 / IEC 60228 Class 1
· Core insulation: PVC acc. to DIN VDE 0207-363-3 / DIN EN 50363-3 (compound type TI1)
· Core identification: see datasheet
Properties
· the materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Tests
· flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2
· certifications and approvals:
· HAR
· EAC
Notes
· the conductor is metrically (mm²) constructed, AWG numbers are approximated, and are for reference only
Application
· Installation in electrical conduits, on or under plaster or similar enclosed systems. Suitable for protected and fixed installation in lighting systems or switching and control devices up to and including 1000 V AC voltage or up to 750 V DC voltage against earth. Not suitable for direct laying in cable ladders and cable trays, except as a potential equalization cable.
PARAMETER
| Temperature range | flexible +5°C to +70°C fixed -30°C to +80°C |
| Nominal voltage | AC U0/U 450/750 V |
| Test voltage | 2500 V |
| Minimum bending radius | fixed 4x Outer-Ø |
| CSA | Insulation Thickness(mm) | Overall Dia(mm) | Total Weight(mm) | Available Colors |
| 1*1.5mm2 | 0.7 | 2.8 | 20.0 | Blue,Y/G,Yellow,Red,Black&Grey |
| 1*2.5mm2 | 0.8 | 3.4 | 31.2 | Blue,Y/G,Yellow,Red,Black&Grey |
| 1*4 | 0.8 | 3.9 | 46.1 | Blue,Y/G,Yellow,Red,Black&Grey |
| 1*6 | 1.0 | 4.4 | 65.7 | Blue,Y/G,Yellow,Red,Black&Grey |
| 1*10 | 1.0 | 5.6 | 108.0 | Blue,Y/G,Yellow,Red,Black&Grey |
