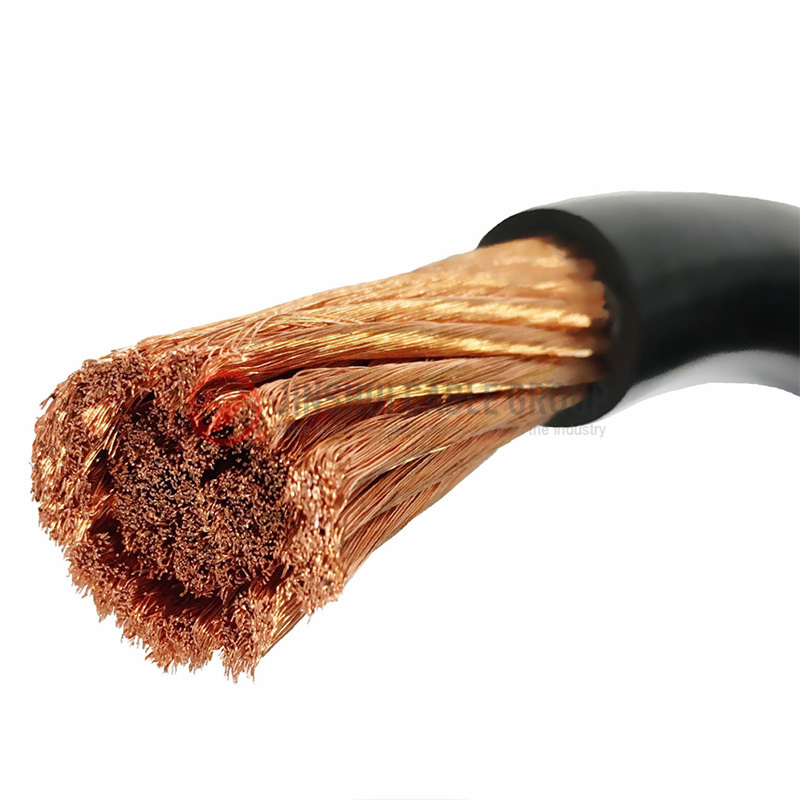

Rubber sheathed single core welding cable
You can send us an email：jscable@cnjscable.com
keywords：
Category：
OVERVIEW
Application
It is used as a connection between the welding generator, the hand-electrode and the work piece. For use in the automobile industry, ship building, transport and conveyor systems, tool making machinery, welding robots etc. These cables retain their high flexibility even under influence of ozone, light, oxygen, protective gases, oil and petrol. Robust cable structure of these cables makes them resistant to low and high temperature, fire, ozone and radiation, oils, acids, fats and petrols. These cables are also ideal for outside installation in dry, moist and wet areas.
Standard：
IEC 60245
DIN VDE 0282-6
SPECIFICATIONS
Conductor: Stranded flexible copper or annealed copper
Insulation: Ethylene Propylene Diene Monomer (EPDM) or EPR
Color: Black,Orange, Blue, Red etc

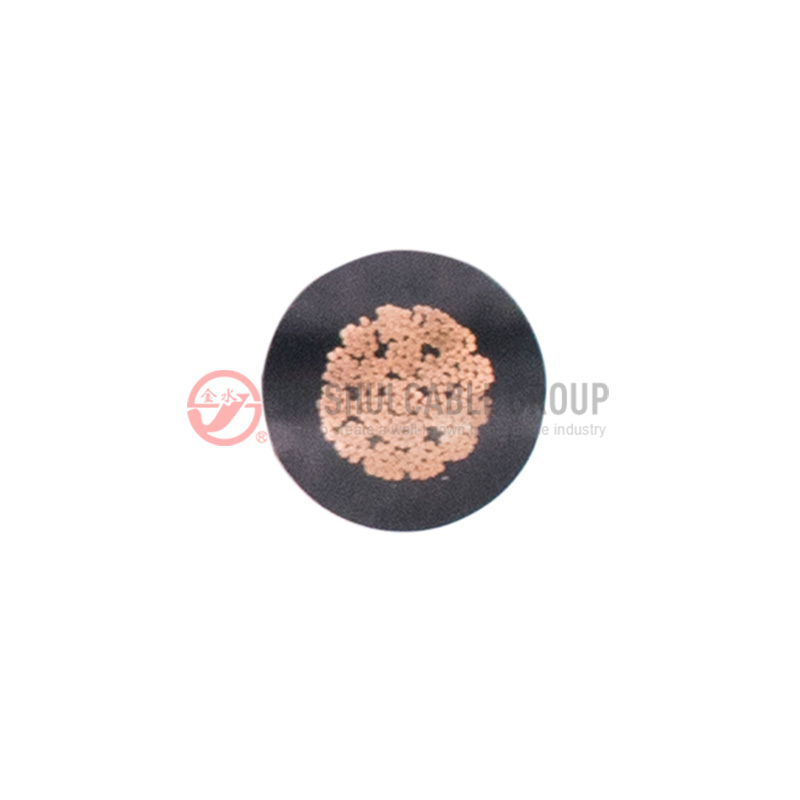

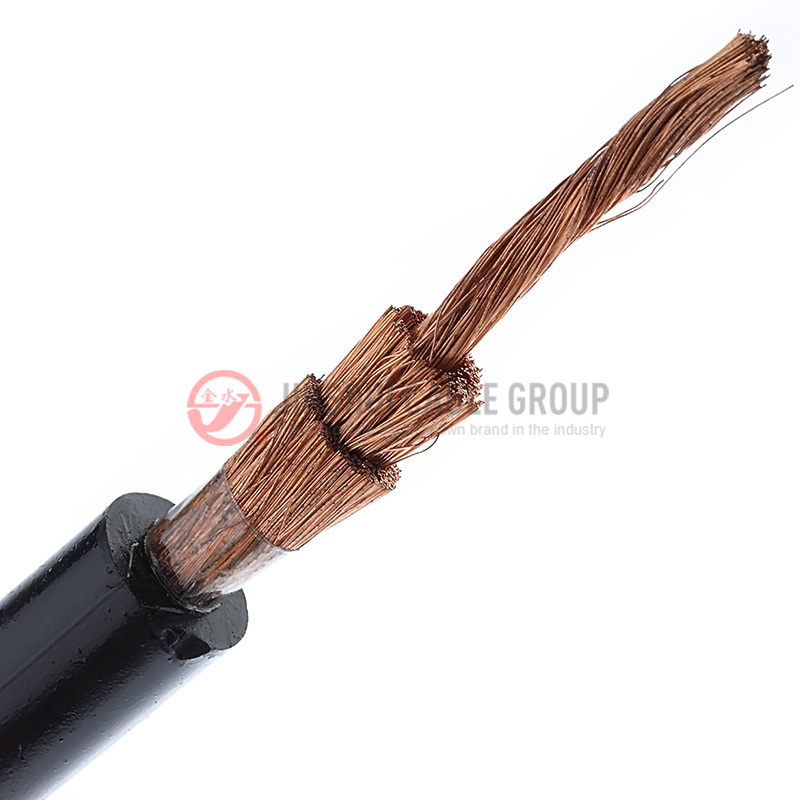

CONSTRUCTION
PARAMETER
| Section (mm2) |
Resistance (ohm/km) |
Thickness of Sheath (mm) |
Min.OD (mm) |
Max.OD (mm) |
| 10 | 1.9100 | 2.00 | 7.80 | 10.0 |
| 16 | 1.2100 | 2.00 | 9.00 | 11.5 |
| 25 | 0.7800 | 2.00 | 10.0 | 13.0 |
| 35 | 05540 | 2.00 | 11.5 | 14.5 |
| 50 | 0.3860 | 2.20 | 13.0 | 17.0 |
| 70 | 0.2720 | 2.40 | 15.0 | 19.0 |
| 95 | 0.2060 | 2.60 | 17.5 | 21.5 |
| 120 | 0.1610 | 2.80 | 19.5 | 24.0 |
| 150 | 0.1290 | 3.00 | 21.5 | 26.0 |
| 185 | 0.1060 | 3.20 | 23.0 | 29.0 |
| 240 | 0.0801 | 3.40 | 27.0 | 32.0 |
| 300 | 0.0641 | 3.60 | 30.0 | 35.0 |
| 400 | 0.0486 | 3.80 | 33.0 | 39.0 |
