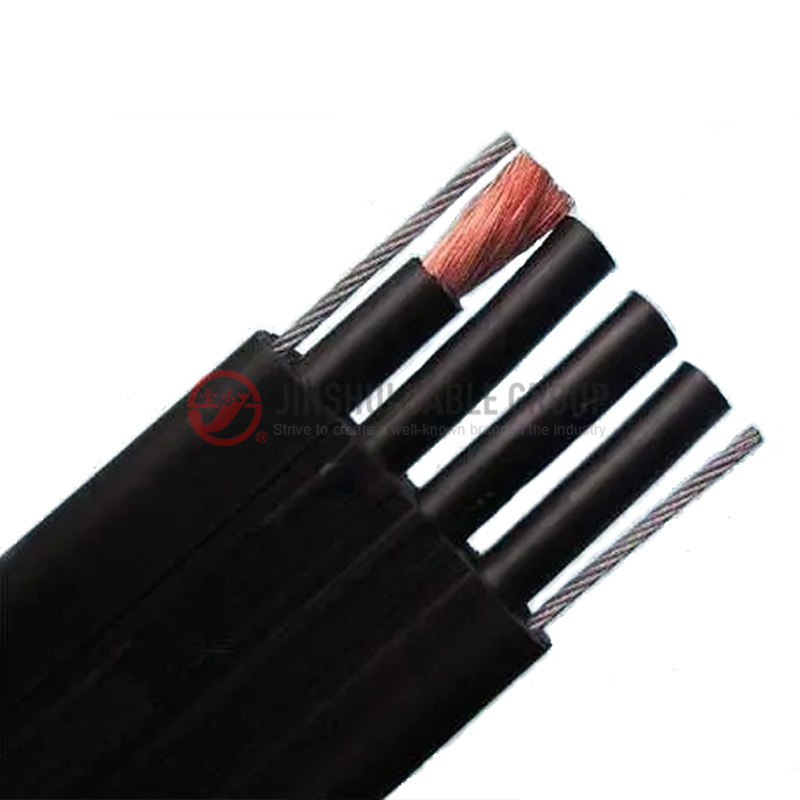

Submersible Pump Cable
You can send us an email：jscable@cnjscable.com
keywords：
Category：
OVERVIEW
Application
this cable is a multi-conductor cable that connects a submersible pump controller to the motor of the pump, often located in a deep well. Cables are fit to withstand wet and hostile conditions and can be used in both fresh and saltwater. These cables are suited for large scale applications as well, such as pumping in residential, farming, and industrial applications. Wire & Cable Your Way offers a wide selection of Submersible Pump C able products at low prices and fast shipping. Most sizes are available by the foot with no cut charges.
Standard
IEC245 BS6195, BS EN 50525-2-21 and BS EN 50525-3-21 as well as VDE and CENELEC
SPECIFICATIONS
Class2 copper conductors, rubber insulation and rubber sheath
Up to 600V
Resistant to acid, abrasion, alkalis, flame, gas, and oil
Water resistant
Operating temperature range -40° C to 75° C
Sequential footage marking
CONSTRUCTION
1. copper conductor
2. rubber insulation
3. rubber sheath
PARAMETER

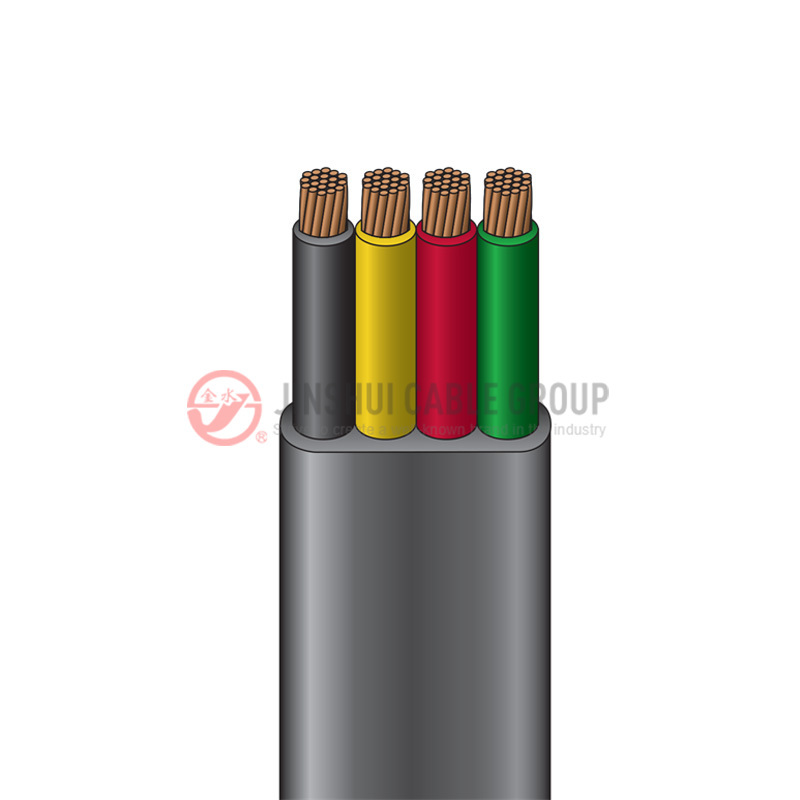

- Flat

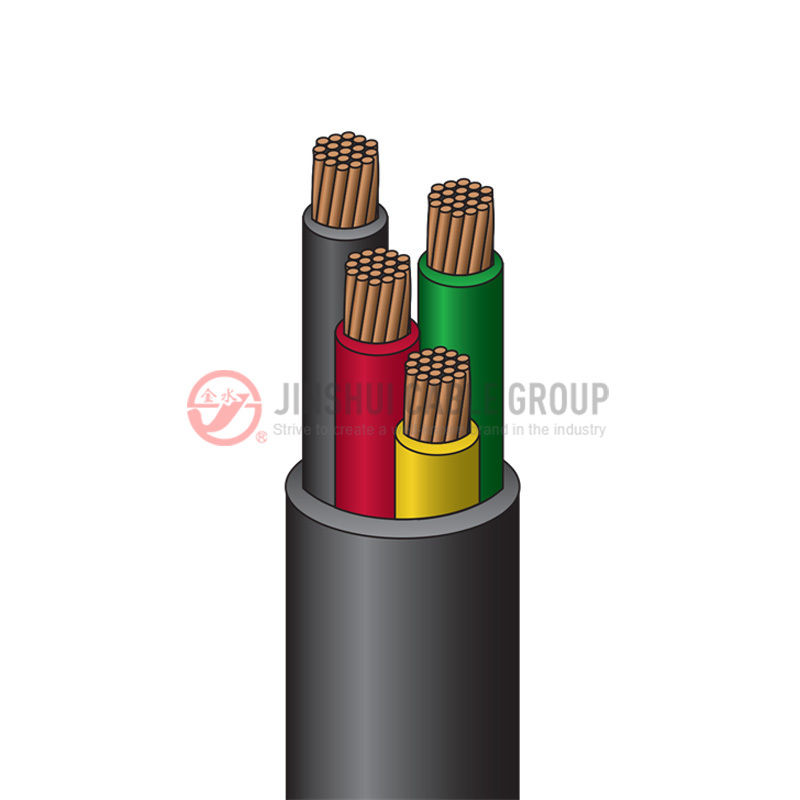

- Round
|
Number and nominal sectional area of conductors |
Thickness of insulation |
Thickness of sheath |
Maximum resistance of conductor at 20℃ class 5 |
|
4x1.5 |
0.8 |
1.2 |
12.1 |
|
4x2.5 |
0.9 |
1.2 |
7.41 |
|
4x4 |
1.0 |
1.3 |
4.61 |
|
4x6 |
1.0 |
1.3 |
3.08 |
|
4x10 |
1.2 |
1.5 |
1.83 |
|
4x16 |
1.2 |
1.5 |
1.15 |
|
4x25 |
1.4 |
1.8 |
0.727 |
|
4x35 |
1.4 |
1.8 |
0.524 |
