Twin & Earth Electrical Wire(BS)
You can send us an email：jscable@cnjscable.com
keywords：
Category：
OVERVIEW

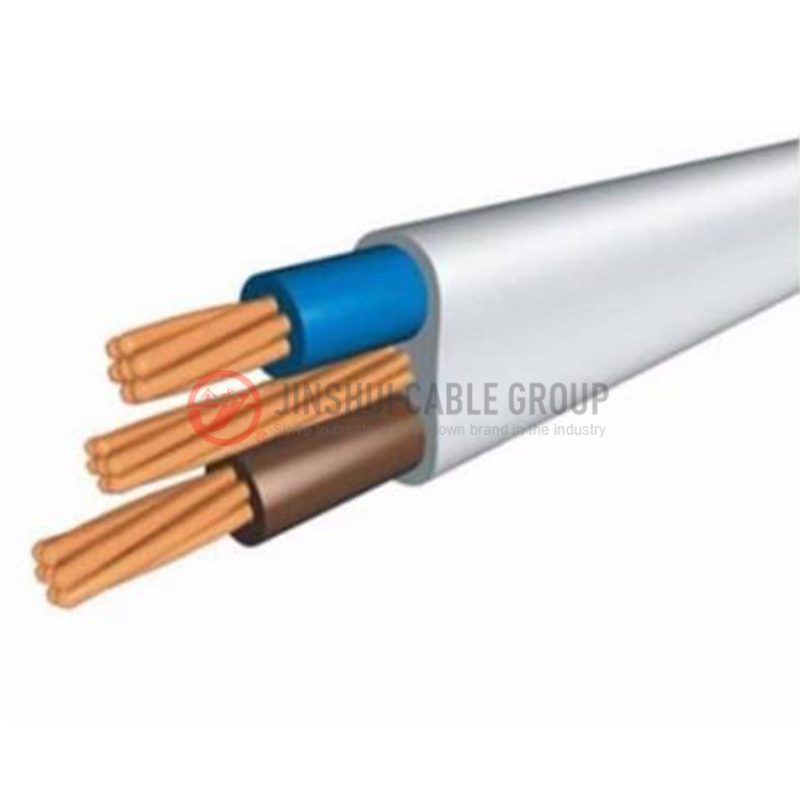

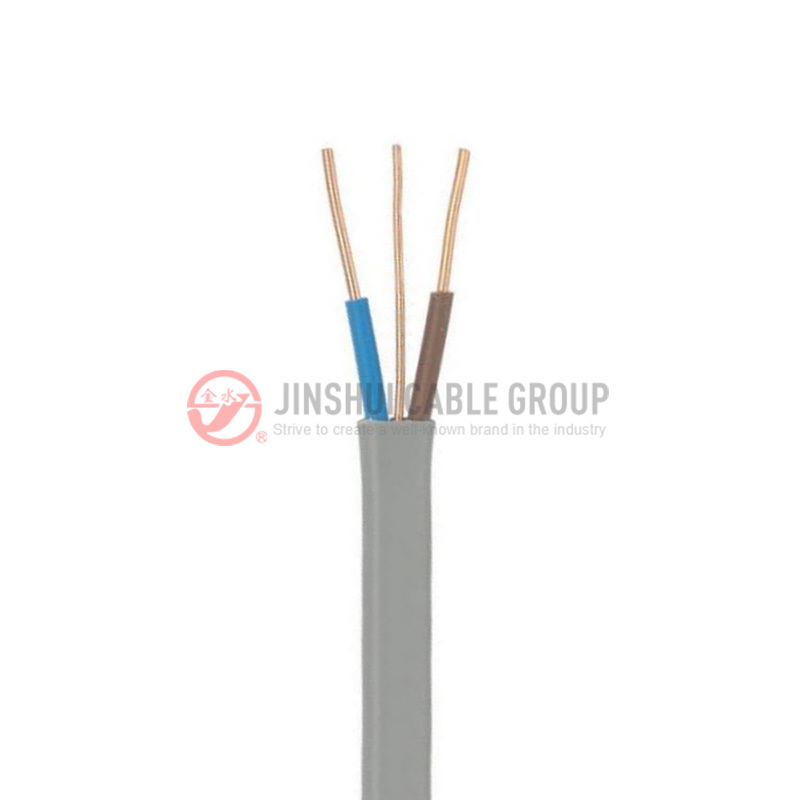

T&E cable can be installed in fixed wiring installations in dry or damp premises clipped to surface, on trays or in free air where there is no risk of mechanical damage. It is suitable for laying in conduit or trunking where mechanical protection is required. Twin and Earth cable is a general fixed wiring and lighting cable, containing three conductors. As the name suggests, there is a pair or Twin current carrying conductors, both individually insulated, and one bare conductor which is the central protective circuit (CPC) or Earth.
Applicable Standard:
BS6004，BS7211,EN60228
SPECIFICATIONS
CONSTRUCTION
Conductor :
1mm² to 2.5mm²: Class 1 solid copper
4mm² to 16mm²: Class 2 stranded copper
Circuit Protection Conductor (Earth)
1mm² to 2.5mm²: Class 1 solid copper
4mm² to 16mm²: Class 2 stranded copper
Insulation
PVC (Polyvinyl Chloride) /XLPE(Cross-linked Polyethylene)
Sheath
PVC (Polyvinyl Chloride) /LSZH(Low Smoke Zero Halogen)
Core Identification
2 core: Blue Brown
3 core: Brown Black Grey
PARAMETER
| NOMINAL CROSS SECTIONAL AREA mm² |
MAXIMUM RESISTANCE OF CONDUCTOR AT 20^C ohms/km |
||
| Plain Wires | |||
| 1 | 18.1 | ||
| 1.5 | 12.1 | ||
| 2.5 | 7.41 | ||
| 4 | 4.61 | ||
| 6 | 3.08 | ||
| 10 | 1.83 | ||
| Current Carrying Capacity | |||
| NOMINAL CROSS SECTIONAL AREA mm² |
REFERENCE METHOD A IN CONDUIT IN WALL) Amps |
REFERENCE METHOD C* (CLIPPED DIRECT) Amps |
VOLTAGE DROP A/m |
| 1 | 11.5 | 16 | 44 |
| 1.5 | 14.5 | 20 | 29 |
| 2.5 | 20 | 27 | 18 |
| 4 | 26 | 37 | 11 |
| 6 | 32 | 47 | 7.3 |
| 10 | 44 | 64 | 4.4 |
| 6 | 57 | 85 | 2.8 |
| No. of Cores | CSA(mm2) | Nom.Insulation Thickness(mm) | Nom Overall Dia(mm) | Nom Overall Dia(mm) | Nom Overall Dia(mm) | Nom.Overall Dia(mm) | Approx.Weight(KG/KM) |
| 2 | 1 | 1 | 1 | 0.6 | 0.9 | 4.35*7.95 | 68 |
| 2 | 1.5 | 1 | 1 | 0.7 | 0.9 | 4.85*8.9 | 87 |
| 2 | 2.5 | 1 | 1.5 | 0.8 | 1 | 5.65*10.65 | 120 |
| 2 | 4 | 2 | 1.5 | 0.8 | 1 | 6.3*11.95 | 172 |
| 2 | 6 | 2 | 2.5 | 0.8 | 1.1 | 7.1*13.7 | 235 |
| 2 | 10 | 2 | 4 | 1 | 1.2 | 8.7*17.25 | 373 |
| 2 | 16 | 2 | 6 | 1 | 1.3 | 9.85*20 | 530 |
| 2 | 1 | 1 | 1 | 0.6 | 0.9 | 4.35*9.8 | 91 |
| 2 | 1.5 | 1 | 1 | 0.7 | 0.9 | 4.85*11.2 | 115 |
