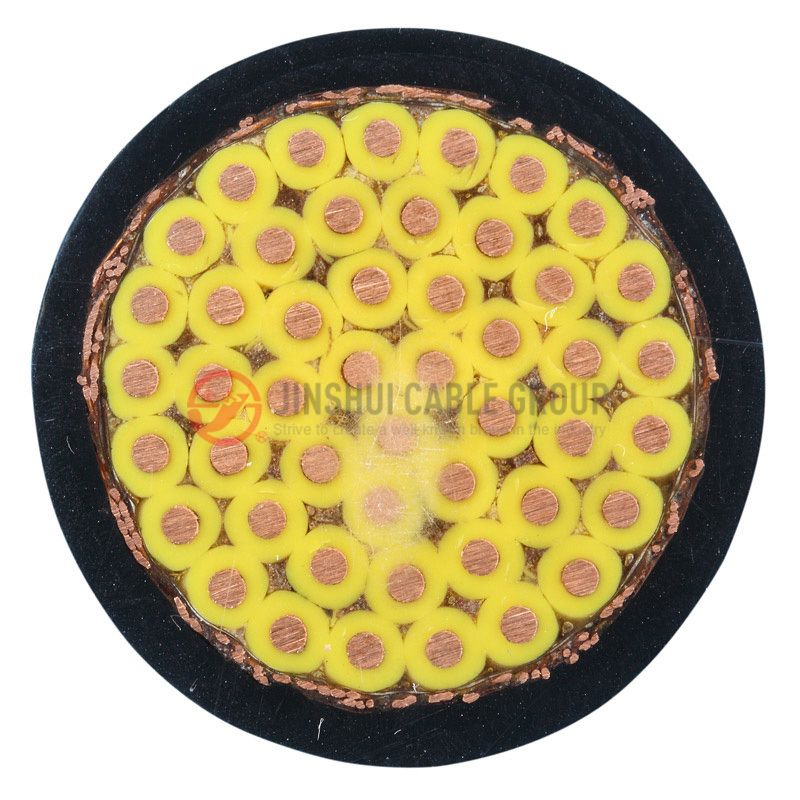

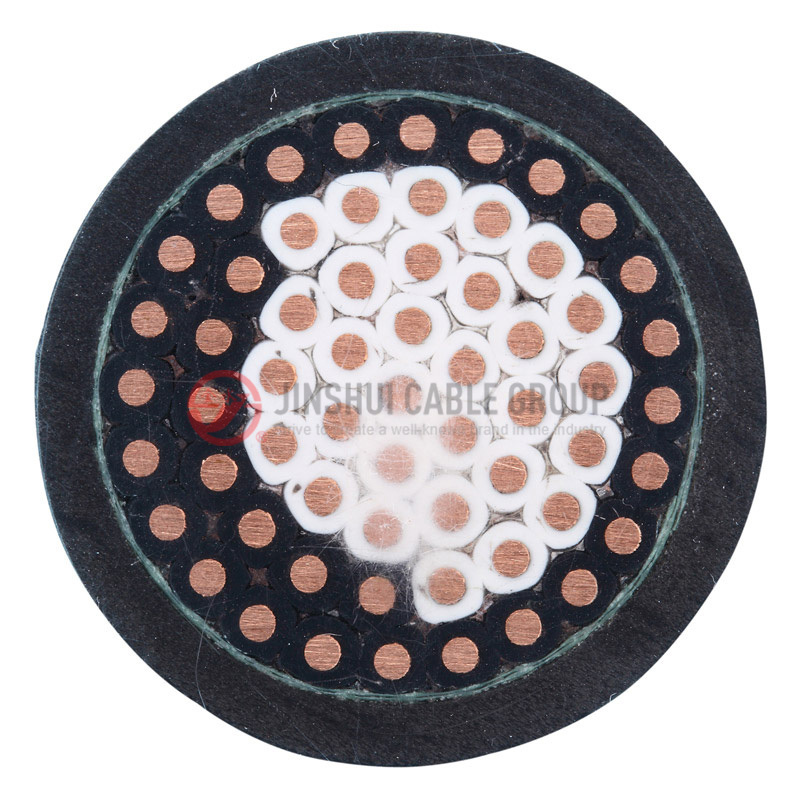

XLPE Insulated Flexible Control Cable
You can send us an email：jscable@cnjscable.com
keywords：
Category：
OVERVIEW
Application:
XLPE insulated and PVC sheathed control cable, features flexible conductor and non-screen single core or multi -cores cables for power and signal transmission.. XLPE insulated and sheath control cable is widely used in engineering, plant installations, vehicle manufacturing, bottling plants and many other fields. It is used indoors in dry and moist situations. Provided protected from sunlight or some other mechanical damage, control cable could be used outdoor.
Applicable Standard:
GB/T9330-2020，IEC60502-1，BS EN 50525-2-11，VDE0250
Flame Retardant to IEC 60332-1 Vertical Flame Propagation Test
SPECIFICATIONS
CONSTRUCTION
| Conductor | Annealed or tinned copper, sizes: 0.5mm² and 0.75mm² multi stranded(Class 5), 0.5 mm², 1.0 mm² solid(Class 1), 1.5mm² or 2.5mm², multi stranded (Class 2) to BS6360 |
| Insulation | XLPE (Cross Linked Polyethylene), or PE (optional) |
| Pairing | Two insulated conductors uniformly twisted together with a lay not exceeding 100mm |
| Colour code | See technical information |
| Binder tape | PETP transparent tape |
| Collective screen | Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm² |
| Outer sheath | LSOH(Low Smoke Zero Halogen) sheath Flame retardant to IEC60332-3-22 Halogen free to IEC60754-1 Low smoke emission to IEC61034-1-2 |
| Sheath colour | Black or blue |
PARAMETER
| Operating temperature | -20C up to + 90C( fixed installation) | ||||||
| 0C to +50C(during operation ) | |||||||
| Minimum bending radius | 5 x overall diameter | ||||||
| Conductor Area Size | mm | 0.5 | 0.5 | 0.75 | 1 | 1.5 | |
| Conductor Stranding | No. x mm | 1 x 0.8 | 16 x 0.2 | 24 x 0.2 | 1 x 1.13 | 7 x 0.53 | |
| Conductor resistance max | ohm/km | 36.8 | 39.7 | 26.5 | 18.2 | 12.3 | |
| Insulation resistance min | Gohm/km | 5 | 5 | 5 | 5 | 5 | |
| Capacitance unbalance at 1 kHz(pair to pair screen) | pF/250m | 250 | |||||
| Max. Mutual Capacitance @ 1 kHz forNon OS or OS cables | pF/m | 115 | 115 | 115 | 115 | 115 | |
| Max. Mutual Capacitance @ 1 kHz IS/OS cables | pF/m | 75 | 75 | 75 | 75 | 75 | |
| Max. L/R Ratio for adjacent cores(Inductance/ Resistance) | H/ohm | 25 | 25 | 25 | 25 | 40 | |
| Test voltage | Core to core | V | 1000 | 1000 | 1000 | 1000 | 1000 |
| Core to screen | V | 1000 | 1000 | 1000 | 1000 | 1000 | |
| Rated voltage max | V | 300/500 | 300/500 | 300/500 | 300/500 | 300/500 | |
| Number of Pairs | Number and Diameter of Wires | Nominal Conductor Cross-Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Diameter of Cable | Approx. Weight |
| no./mm | mm2 | mm | mm | mm | kg/km | |
| 2 | 1/0.8 | 0.5 | 0.5 | 0.9 | 9.7 | 95 |
| 5 | 1/0.8 | 0.5 | 0.5 | 1.2 | 13 | 180 |
| 10 | 1/0.8 | 0.5 | 0.5 | 1.2 | 16.9 | 310 |
| 15 | 1/0.8 | 0.5 | 0.5 | 1.3 | 19.7 | 440 |
| 20 | 1/0.8 | 0.5 | 0.5 | 1.3 | 22.3 | 560 |
| 30 | 1/0.8 | 0.5 | 0.5 | 1.5 | 27.1 | 820 |
| 50 | 1/0.8 | 0.5 | 0.5 | 2 | 35 | 1370 |
| 2 | 16/0.2 | 0.5 | 0.6 | 1.1 | 11.2 | 110 |
| 5 | 16/0.2 | 0.5 | 0.6 | 1.2 | 14.5 | 250 |
| 10 | 16/0.2 | 0.5 | 0.6 | 1.3 | 19.3 | 480 |
| 15 | 16/0.2 | 0.5 | 0.6 | 1.5 | 22.6 | 570 |
| 20 | 16/0.2 | 0.5 | 0.6 | 1.5 | 25.7 | 780 |
| 30 | 16/0.2 | 0.5 | 0.6 | 1.7 | 31 | 1020 |
| 50 | 16/0.2 | 0.5 | 0.6 | 2.2 | 39.9 | 1680 |
| 2 | 1/1.13 | 1 | 0.6 | 1.1 | 11.9 | 200 |
| 5 | 1/1.13 | 1 | 0.6 | 1.2 | 15.4 | 290 |
| 10 | 1/1.13 | 1 | 0.6 | 1.3 | 20.5 | 580 |
| 15 | 1/1.13 | 1 | 0.6 | 1.5 | 24.1 | 780 |
| 20 | 1/1.13 | 1 | 0.6 | 1.7 | 27.7 | 1010 |
| 30 | 1/1.13 | 1 | 0.6 | 2 | 33.7 | 1430 |
| 50 | 1/1.13 | 1 | 0.6 | 2.2 | 42.5 | 2360 |
| 2 | 7/0.53 | 1.5 | 0.6 | 1.2 | 13.6 | 250 |
| 5 | 7/0.53 | 1.5 | 0.6 | 1.3 | 17.7 | 460 |
| 10 | 7/0.53 | 1.5 | 0.6 | 1.5 | 23.9 | 760 |
| 15 | 7/0.53 | 1.5 | 0.6 | 1.7 | 28 | 1020 |
| 20 | 7/0.53 | 1.5 | 0.6 | 2 | 31.7 | 1350 |
| 30 | 7/0.53 | 1.5 | 0.6 | 2.2 | 38.6 | 1900 |
| 50 | 7/0.53 | 1.5 | 0.6 | 2.2 | 48.9 | 3060 |
